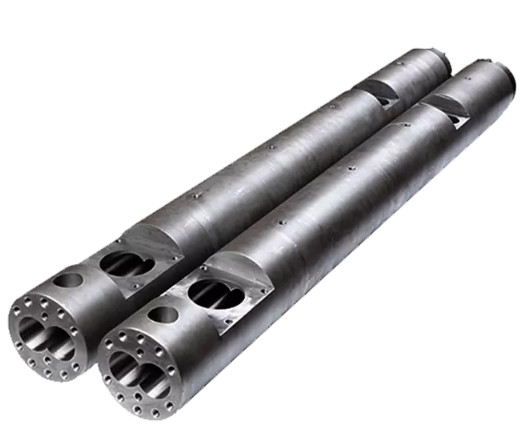

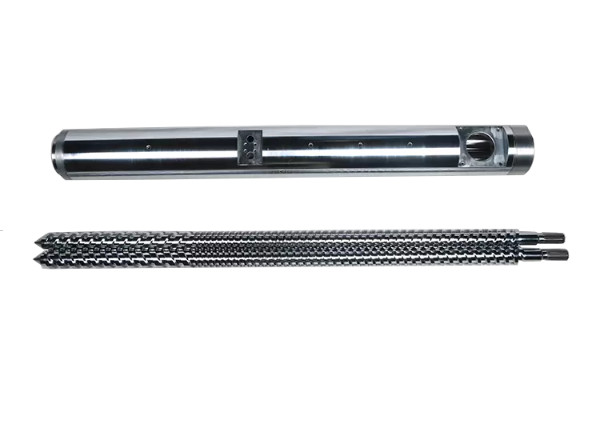

Bimetallic Parallel Twin Screw Barrel For Plastic Extruder Machine

Bimetallic Parallel Twin Screw Barrel For Plastic Extruder Machine

Bimetallic Parallel Twin Screw Barrel For Plastic Extruder Machine
Bimetallic Parallel Twin Screw Barrel For Plastic Extruder Machine
Bimetallic Parallel Twin Screw Barrel For Plastic Extruder Machine
Product Details:
Place of Origin: Jiangsu,China
Brand Name: Bloom
Certification: ISO 9001
Model Number: BLM
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negetation
Packaging Details: Packing in wooden case
Delivery Time: 30 to 45 days
Payment Terms: T/T
Supply Ability: 1000mm/month
Contact Now
Detailed Product Description
Material: 38CrMoAlA,42CrMo,9Cr18MoV Application Field: Household,Agriculture,Industry,Building,Auto Parts
Applied Polymers: PE,PA,PET,PVC,PC,ABS,PBT,PEEK,Teflon Screw Treatment: Nitrided,Bimetallic,PTA,HOVF,Tool Steel,HSS,PM Steel
Reinforced Additives: Less Than 65% Glass Fibre Hardness: 58-64HRC
High Light:

Bimetallic Twin Screw Barrel

,

Parallel Twin Screw Barrel

,

Plastic Extruder Twin Screw Barrel

Bimetallic Parallel Twin Screw Barrel For Plastic Extruder Machine Double Screw



1 . Description

Specifications

1. spray coating bimetallic alloy
2. parallel twin screw barrel
3. alloy-steel of high quality
4. Based material:38 CrMoAIA(JIS SACM645)
5. processed to drawing(we can design as customer's requirements)



Material:
Alloy-steel of high-quality
1. 38 CrMoAIA(JIS SACM645)
2. 42CrMo(AISI4140)
3. 9Cr18MoV
4. CW6Mo5Cr4V2
5. SKD61





2 . Processes:

1. Heat-treatment
2. Nitriding treatment
3. Electroplate hard-chrome
4. High-frequency quenching
5. Spraying corrosion wear-resisting dual metal layers
6. Vacuum quenching





3 . Technical Parameters:

Screw

1. Nitride Depth: 0.6-0.9mm

2. Nitride Hardness: 950-1200HV

3. Surface Roughness: Ra≤0.4um

4. Screw Straightness: 0.015mm/m

5. Bimetallic Hardness: HRC58-68

6. Bimetallic Depth: 2-5 mm



Barrel

1. Nitride Depth: 0.6-0.9mm

2. Nitride Hardness: 950-1200HV

3. Surface Roughness: Ra≤0.4 um

4. Bimetallic Hardness: HRC58-68

5. Bimetallic Depth: 2-5 mm



Our products can ensure high performance and low energy consumption of extruder machine. More over, we can supply professional screw and barrel to your order! Sincerely looking forward to establishing new business ship with you in the near future.




4 . Regular model screw barrel for below famous extruder
MIKROSAN MCV 55 MCV 67 MCV 110
BATTENFELD BEX 65 BEX 68 BEX 90 BEX 92 BEX 107 BEX 110
KRAUSS MAFFEI KMD 60 KMD 75 KMD 90 KMD 110 KMD 114 KMD 130
CINCINNATI ARGOS 72 ARGOS 90 ARGOS 93 ARGOS 114 ARGOS133 ARGOS 135
THEYSOHN TTS 78R-26 TTS 88R-24 TTS 88R-26 TTS 108R-24 TTS 108R-26 TTM 138-28
WEBER DS 7.22 DS 8.32 DS 11.22 DS 12.32 DS 13.22 DS 850 / 2b





5 . Technical Parameter

Base Material

1)38CrMoAlA(JIS SACM645);2)Cr12MOV(JISSKD-11) ;
3)4Cr5MoSiV1(JIS SKD-61) ;4)42CrMo(AISI4140)

Bimetallic Alloy Materials

1)Fe-based alloy2)Ni-based alloy/Deloroalloy
3)Co-based alloy4)NiCo-based alloy
5)Tungsten carbide/Wolframcarbide

Double-alloylevel

Level A - containing Tungsten of40%
Level B - containing tungsten of 25%
Level C - containing tungsten of15%

Surface Treatment

Heat Treatment
High FrequencyTreatment
Nitriding treatment(120Hours):
Depth of Nitrided Layer: 0.5-0.8mm
Hardness of Nitrided Layer: 900-1020Hv(HRC56°-65°)
HardChrome Plating treatment:
Thickness of Hard Chrome Plating Layer:0.05-0.10mm
Hardness ofHard Chrome Plating Layer: ≥950HV
Nickel alloyplating.treatment:
Bimetallic barrel / Cylinder: Centrifugal Casting(Inlay Alloy)
BimetallicScrew: Plasma Alloy Coating Spraying
Depth of Bimetallic Layer: >2mm
Hardness of Bimetallic Layer: HRC55°-72°
Spraying corrosion wear-resisting dual metallayers
