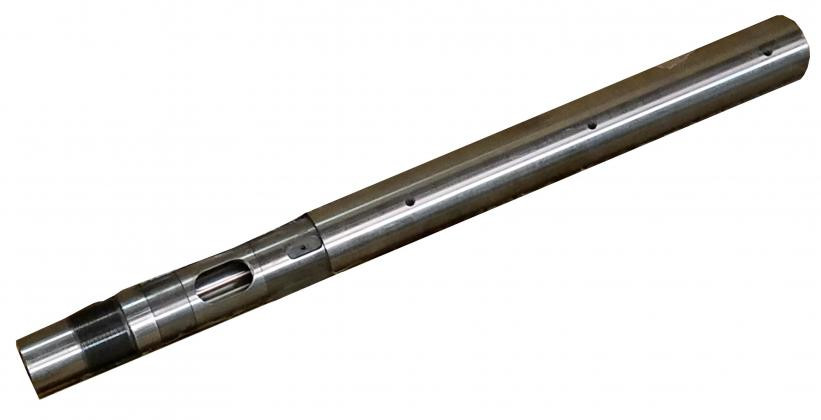

Mitsubishi 105mm Barrel 12 Hole End Cap Bolt Bimetallic Liner

Mitsubishi 105mm Barrel 12 Hole End Cap Bolt Bimetallic Liner

Mitsubishi 105mm Barrel 12 Hole End Cap Bolt Bimetallic Liner
Mitsubishi 105mm Barrel 12 Hole End Cap Bolt Bimetallic Liner
Mitsubishi 105mm Barrel 12 Hole End Cap Bolt Bimetallic Liner
Product Details:
Place of Origin: Jiangsu,China
Brand Name: Bloom
Certification: ISO 9001
Model Number: BLM
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negetation
Packaging Details: Packing in wooden case
Delivery Time: 30 to 45 days
Payment Terms: T/T
Supply Ability: 1000mm/month
Contact Now
Detailed Product Description
Material: 38CrMoAlA,42CrMo,9Cr18MoV Application Field: Household,Agriculture,Industry,Building,Auto Parts
Applied Polymers: PE,PA,PET,PVC,PC,ABS,PBT,PEEK,Teflon Screw Treatment: Nitrided,Bimetallic,PTA,HOVF,Tool Steel,HSS,PM Steel
Model Number: 90MJ II, 120MJ II, 150MJ II, 180MJ II, 210MJ II, 270MJ II, 320MJ II, 390MJ, 500MJ, 610MJ, 720MJ, 950MJ, 1200MJ Hardness: 58-64HRC
Highlight:

Mitsubishi Barrel Alloy Materials

,

Bimetallic Liner Alloy Materials

,

Mitsubishi 105mm Barrel

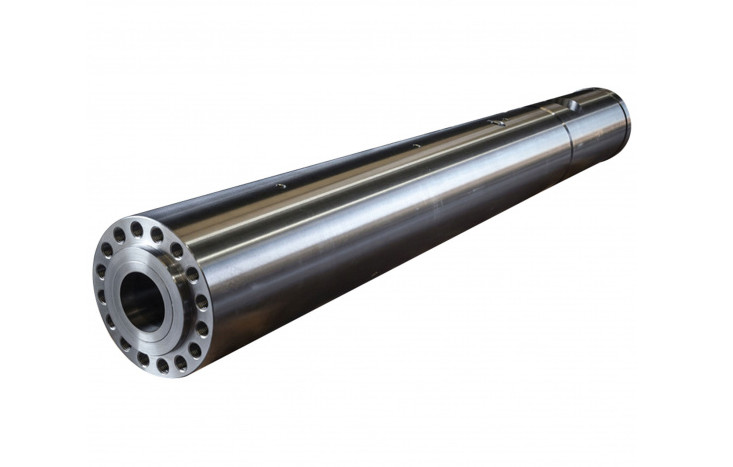

Mitsubishi 105mm 115.87" OAL 9.055" OD 12 Hole End Cap Bolt Pattern Standard Bimetallic Liner



1 . Description

Mitsubishi Plastics Division started developing their line of plastics machines in 1961. Since then they have injection molding machines that range from 650 Tons all the way to 3000Ton machines.

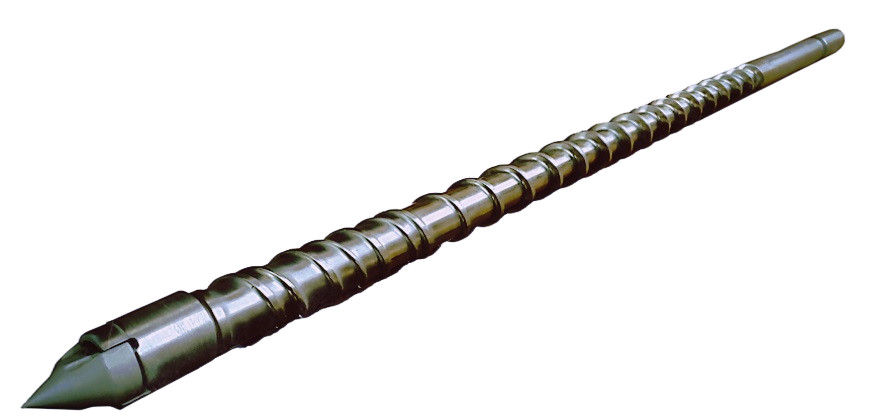

We supply OEM Mitsubishi injection molding barrels and replacements as well as injection molding screws, injection molding barrels and injection molding end caps.


Screw diameter:Φ15mm-Φ360mmL/D=15-56
Length of screw and barrel/cylinder:8000mm

According to different material and plastic products to design different screw structure ,compress rate and L/D.
According to different material and plastic products to design different Barrel with exhaust system and IKV force load system.


2 . Barrlr size
Mitsubishi 105mm barrel
Mitsubishi 32mm barrel
Mitsubishi 45mm barrel
Mitsubishi 62mm barrel
Mitsubishi 80mm barrel
Mitsubishi 25mm barrel
Mitsubishi 36mm barrel
Mitsubishi 50mm barrel
Mitsubishi 68mm barrel
Mitsubishi 90mm barrel
Mitsubishi 28mm barrel
Mitsubishi 40mm barrel
Mitsubishi 57mm barrel
Mitsubishi 70mm barrel


 3 . Technical Parameter
Base Material 1)38CrMoAlA(JIS SACM645);2)Cr12MOV(JISSKD-11) ;
3)4Cr5MoSiV1(JIS SKD-61) ;4)42CrMo(AISI4140)
Bimetallic Alloy Materials 1)Fe-based alloy2)Ni-based alloy/Deloroalloy
3)Co-based alloy4)NiCo-based alloy
5)Tungsten carbide/Wolframcarbide
Double-alloylevel Level A - containing Tungsten of40%
Level B - containing tungsten of 25%
Level C - containing tungsten of15%
Surface Treatment Heat Treatment
High FrequencyTreatment
Nitriding treatment(120Hours):
Depth of Nitrided Layer: 0.5-0.8mm
Hardness of Nitrided Layer: 900-1020Hv(HRC56°-65°)
HardChrome Plating treatment:
Thickness of Hard Chrome Plating Layer:0.05-0.10mm
Hardness ofHard Chrome Plating Layer: ≥950HV
Nickel alloyplating.treatment:
Bimetallic barrel / Cylinder: Centrifugal Casting(Inlay Alloy)
BimetallicScrew: Plasma Alloy Coating Spraying
Depth of Bimetallic Layer: >2mm
Hardness of Bimetallic Layer: HRC55°-72°
Spraying corrosion wear-resisting dual metallayers





4 . Material Application

1)GeneralPlastics
2)ABS,PA,PC,PE,PET,PP,PS,EVA,PU,PVC,U-PVC,etc
3)PA + GF(GlassFiber)
4)Flame-resistant Reinforced Plastics
5)Modified EngineeringPlastics
6)All kinds of Mixed Recycled Material(in Scrap or Granule), PVC +30% CaCo3, etc





5 . Material & Processes of screw barrel for plastic extruder

Alloy-steel of High-quality
1)38CrMoAlA
2)42CrMo
3)9Cr18MoV
4)CW6Mo5Cr4V2
5)Quality Duplex Stainless Steels
6)GH 113
7)Quality Powder Metallurgy Raw Materials
8)Cold/Thermal Spray Hard Metal process
9)Advanced nitriding Process
10)Corrosion & Abrasion Resistance Bimetal Spraying Process





6 . Technology Specification of screw barrel for plastic extruder

1)Hardness After Hardening & Tempering:HB240-290

2)Hardness of nitride layer:HV850-1000
3)Nitrided Case Depth:0.45-0.7mm
4)Nitrided Brittleness:Less Than Grade 2
5)Surface Roughness:Ra0.4
6)Screw Straihgtness:0.015mm
7)Surface Chromium-Plating's Hardness After Nitriding:≥900HB
8)Chrominm-plating Depth:0.05-0.10mm
9)Alloy Hardness:HRC50-65
10)Alloy Depth:0.8-2.0mm





7 . As per customer's demand,we can also supply below:
PVC/PE Film Blowing Screw;

Blow Molding Screw;

PS/PE/PP/ABS Sheet Extrusion Screw;

PE Aluminum Plate;

PPR Pipe Screw;

EVA Extrusion Screw;

HDPE High efficiency Screw;

PET Straps Screw;

XPS/EPE Foamed Screw;

Granulation Screw,Vented single screw etc.
