Co Rotating Parallel Twin Screw Extruder Parts 316L X260

Negotiation

MOQ

Negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Place Of Origin: Jiangsu,China

Material: 316L/X260/W6Mo5Cr4V2 Or Customized

Spare Parts Type: Spare Parts For Twin Screw Exruder

Application: Machinery Repair Shops,Food An Beverage Factory

Center Distance: 26mm

Screw Distance: 30mm

Dimension（LxWxH): 120x135x115mm

After Warranty Service: Video Technical Support,online Support

Highlight:

Co Rotating Parallel Twin Screw Elements

316L Twin Screw Extruder Screw Elements

Basic Infomation

Place of Origin: Jiangsu, China (Mainland)

Brand Name: BLM-IV-1

Payment & Shipping Terms

Packaging Details: packed and labeled according to the regulations and customer's requests.Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.

Delivery Time: 25-30 days subject to the clients' requirement and quantity

Payment Terms: Western Union, L/C, T/T

Supply Ability: 1000 per Month

Gallery

Co Rotating Parallel Twin Screw Extruder Parts 316L X260

Product Description

Spare Parts for Co-rotating Parallel Twin Screw Extruder

1. Descriptions

The modular principle of the barrel permits precise sequencing for each application. Each barrel section's temperature can be set separately. Electrical heater shells provide for heating, cooling is obtained with water. Barrels, as well as screw and kneading elements are made out of nitride steel in the standard version; the wear resistant version is made of suitable materials, corresponding to the respective requirements.

Code	Product code	Materisl alloy	HRC	Corrosion resistance
A	BLM-02	nickel base alloy	52-56	8
B	BLM-03	nickel base alloy	52-56	9
C	BLM-04	nickel base alloy	40-45	8
D	BLM-05	Nickel base tungsten carbide alloy	56-60	8

2 . Twin screw extruder screw element parameter:

Model	Screw Major Diameter (D/mm)	Screw Minor Diameter (d/mm)	D/d	Center distance(mm)
BM-20	21.7	14	1.55	18
BM-25	25	16.1	1.55	21.2
BM-35	35.6	23.6	1.51	30
BM-50	50.5	32.5	1.55	42
BM-52	51.4	33.8	1.52	43
BM-60	59.6	43.8	1.37	52
BM-65	62.4	40.5	1.54	52
BM-68	69	49	1.40	60
BM-70	70.6	47.4	1.49	60
BM-75	71	47	1.51	60

3. The screw shaft system is characterized by the following:

Screw elements with various pitches and lengths

Kneading blocks with various angles of stagger, numbers of kneading disks and disk widths

Screw tips to fix the screw set axially

Gear teeth connection to ensure power flow between the screw shaft and screw elements.

4 . Pictures:

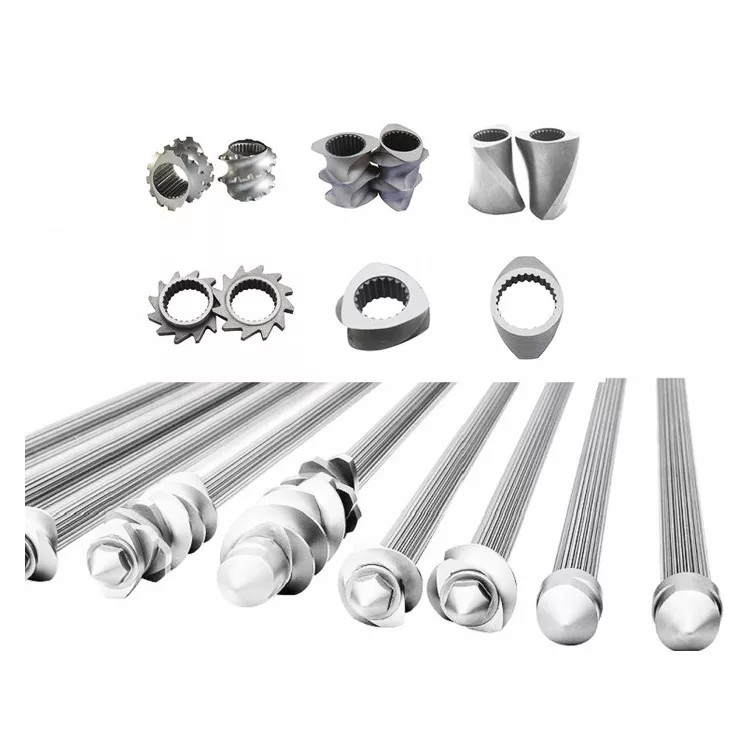

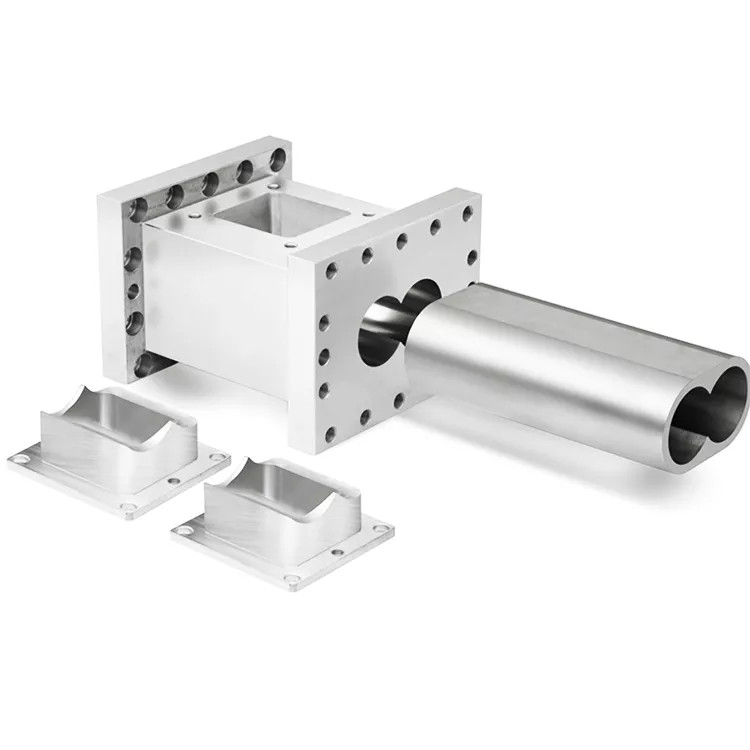

Co Rotating Parallel Twin Screw Extruder Parts 316L X260 0
