Features

Specifications

Name: Electrode Wheel/copper Disc

Place Of Origin: Jiangsu, China (Mainland)

Type: Flange

Delivery: 25-30 Days Subject To The Clients' Requirements And Quantity

Price Term: Ex-Work,FOB,CNF,CFR,CIF,FCA,DDP,DDU

Surface Treatment: Polishing, Heat Treatment,Polishing,Heat Treatment

Drawing Format: PDF/JPEG/AI/PSD

Standard Or Nonstandard: Nonstandard

Size: Customized

Highlight:

Customized Size Welding Wheel

Copper Alloy Electrode Wheel

Seam Welding Copper Disc

Basic Infomation

Place of Origin: Jiangsu, China (Mainland)

Brand Name: BLM-VP-1

Payment & Shipping Terms

Packaging Details: packed and labeled according to the regulations and customer's requests.Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.

Delivery Time: 25-30 days subject to the clients' requirement and quantity

Payment Terms: Western Union,L/C,T/T

Supply Ability: 300 Ton/Tons per Month

Gallery

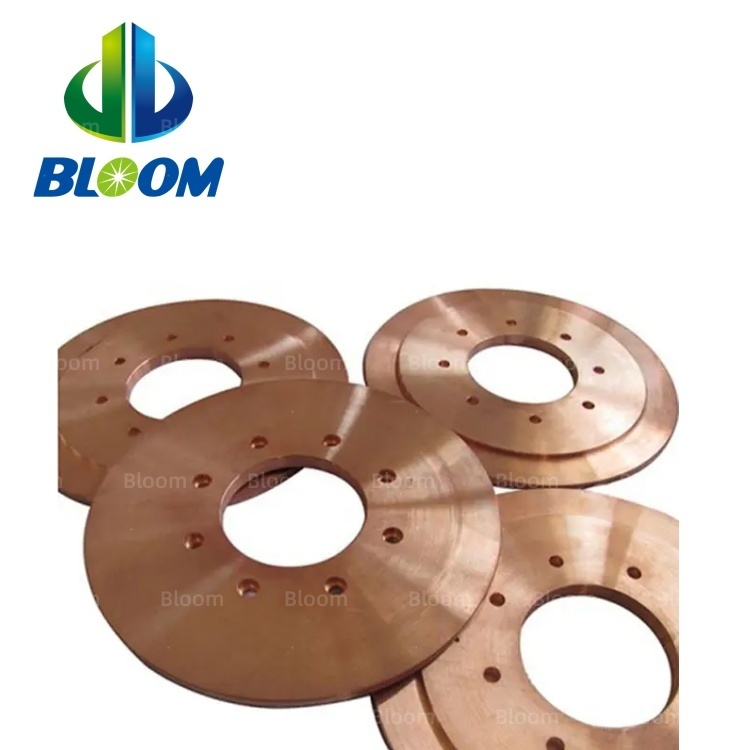

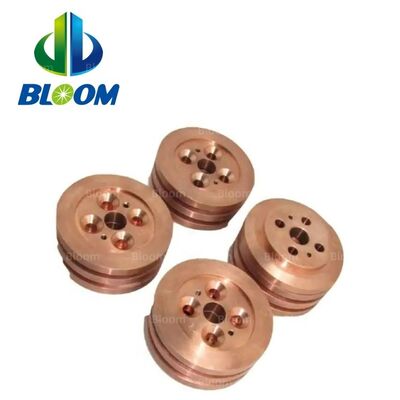

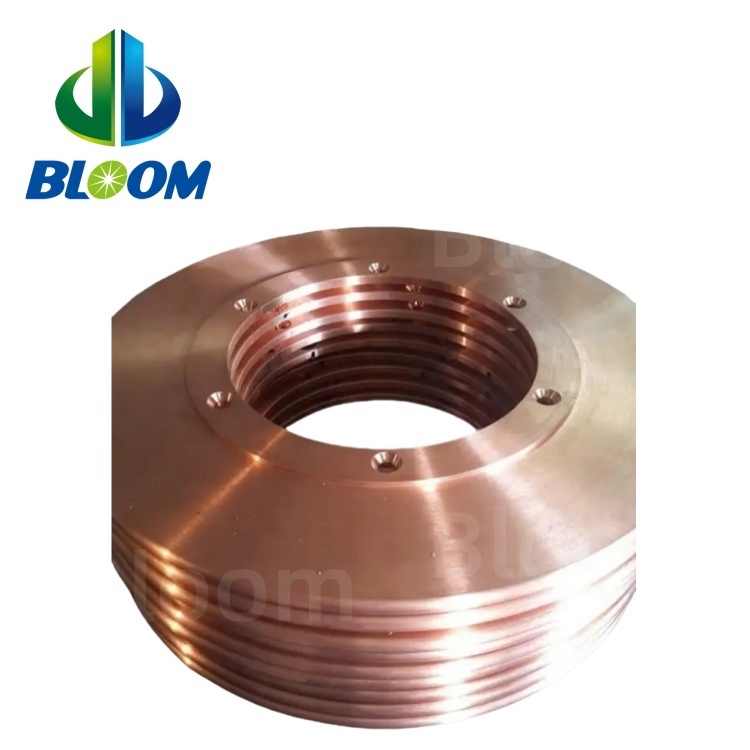

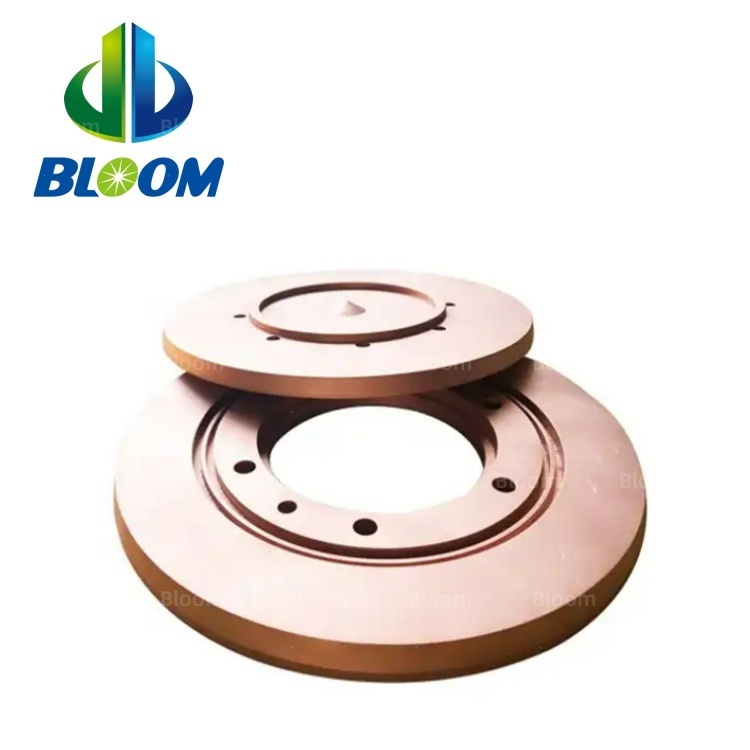

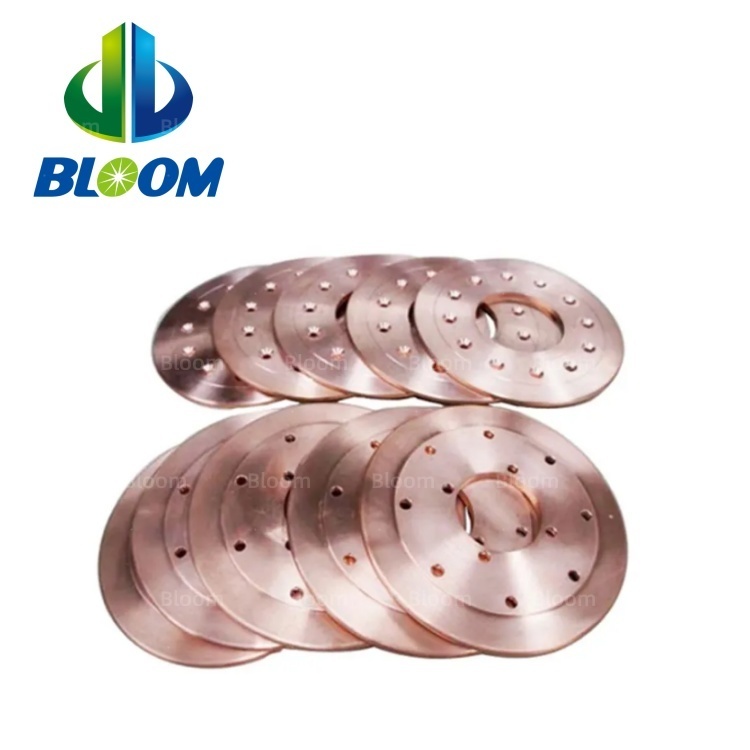

Customized Size Copper Alloy Welding Wheel for Seam Welding Electrode Wheel Copper Disc

Product Description

Welding Copper Disc Welding Wheel for Seam Welding

Seam welding wheel made from copper alloy serves as the electrode wheel for seam welding machines. This essential accessory part features a disc shape specifically designed for continuous seaming welding applications.

Product Overview

The welding wheel functions as the electrode component in seam welding machines. While similar to spot welding equipment, seam welding machines utilize rotating electrode wheels instead of rod electrodes, enabling continuous or interval discharge welding along seams.

Product Name	Electrode Wheel
Material	CuCrZr / BeCu
Color	Coppery
Design	Customized to customer requirements

Copper Alloy Electrode Wheel Functionality

The copper alloy electrode wheel applies pressure and conducts electrical current to create welds between metal surfaces. Copper alloy is selected for its exceptional properties:

Excellent electrical conductivity for efficient current transfer
High thermal conductivity for effective heat dissipation
Superior wear resistance for extended service life

The round electrode disc ensures even pressure distribution and optimal electrical contact, creating consistent, continuous welds along the entire seam length.

Operating Instructions

Follow these steps for proper seam welding with electrode wheels:

Setup Preparation: Ensure proper installation of electrode wheel and disconnect power before adjustments
Material Preparation: Clean metal surfaces thoroughly to remove contaminants
Parameter Adjustment: Set appropriate current, speed, and pressure settings
Alignment: Position metal components with seam properly aligned under electrode wheel
Welding Operation: Rotating wheel applies pressure while conducting electrical current
Quality Monitoring: Continuously inspect weld quality and adjust parameters as needed
Post-Welding: Allow cooling, inspect for defects, and perform necessary treatments
Maintenance: Clean and inspect wheel regularly, replacing when worn or damaged

Industrial Applications & Benefits

Copper alloy electrode wheels are essential in industries requiring continuous, leak-proof welds:

Automotive Manufacturing: Body panel assembly and component joining
Aerospace Industry: Aircraft component fabrication
General Manufacturing: Sheet metal product assembly

Key functional advantages include:

Superior electrical conductivity for efficient energy transfer
Effective pressure application for tight joint formation
Excellent heat dissipation to prevent workpiece distortion
Enhanced wear resistance for prolonged service life
