Features

Specifications

Temperature Resistance: Temperature Limit 600℃

Alloy Layer Thickness: ≧1.8mm

Alloy Layer Hardness: HRC≥57

Hs Code: 8477900000

Liner Type: Nickel Chrome Tungsten Composite Liner

Customization: Yes

Basic Infomation

Place of Origin: Jiangsu, China

Brand Name: BLM

Certification: ISO 9001

Model Number: standard or customized

Payment & Shipping Terms

Packaging Details: Packing in wooden case

Delivery Time: 30~45days

Payment Terms: T/T,Western Union,MoneyGram

Supply Ability: according to the customized products

Gallery

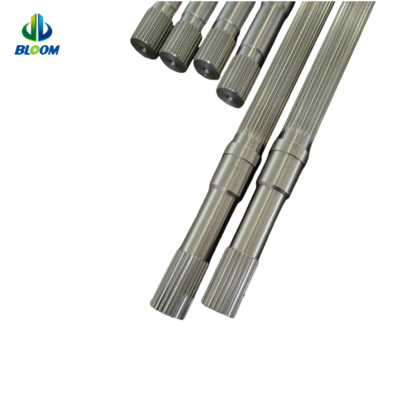

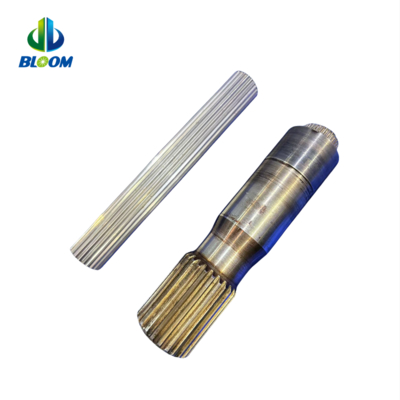

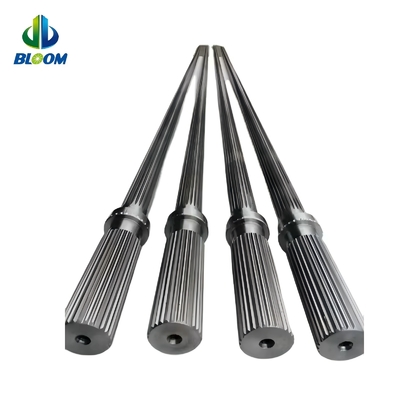

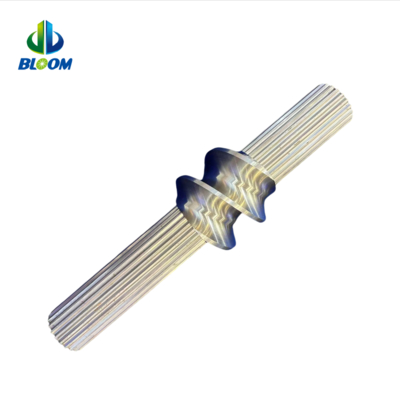

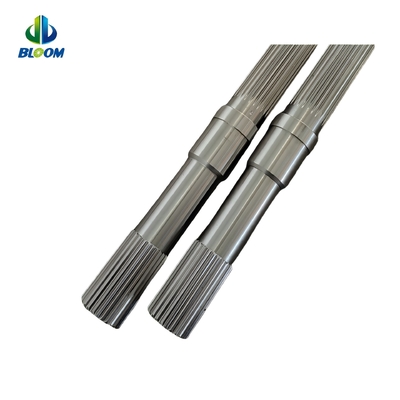

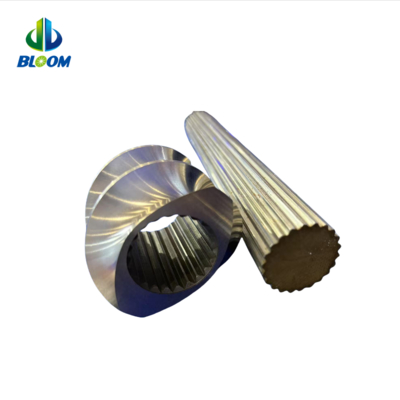

Plastic Extruder Parts High torque Screw Shaft For PEEK PVDF production

Product Description

The shaft is made of high-strength alloy steel and has sufficient strength and rigidity to

withstand the huge torque and pressure during the extrusion process. It is machined with

spiral grooves that cooperate with the spiral blades of the screw to form a channel for material

transportation and mixing. It is connected to the drive device and transmits the power of the

motor to the screw to make the screw rotate and realize the transportation and mixing of

materials.

Detailed Specifications for different materials

40CrNiMo	The torque can reach 10-11, but the performance will decline when the temperature exceeds 250 degrees. The higher the temperature, the greater the performance decline.
17-4PH( 1.4548)	Its performance is superior to that of WR5 and does not decline within 350 degrees
WR15E	It is used in industries that can withstand higher torque, with the torque reaching 13-15
IN718	Nickel alloys have the highest torque in this industry, but they are expensive and are mainly used in high-temperature industries

Types of shafts

Detailed photos

Product shows

Plastic Extruder Parts High torque Screw Shaft For PEEK PVDF production 2

Workshop

Plastic Extruder Parts High torque Screw Shaft For PEEK PVDF production 3

Bloom Suzhou Materials manufactures barrels for co-rotating twin screw extruders ranging

from 12 mm to 350 mm. Our screw element is designed to work seamlessly with parallel

twin screw barrels, screw barrels, and twin screw extruders, making your daily production

more efficient.

We melting raw materials of nickel-based alloy powder and HIP powder metallurgy materials

by ourselves, and adjusting the hardness by adjusting the ratio and composition of the metal,

which makes its life time double or triple increased. Based with strong technical force, excellent

processing equipment, advanced production technology, strict inspection system and perfect

after-sales service, Bloom has been a leading supplier in Plastic extruder accessories.
