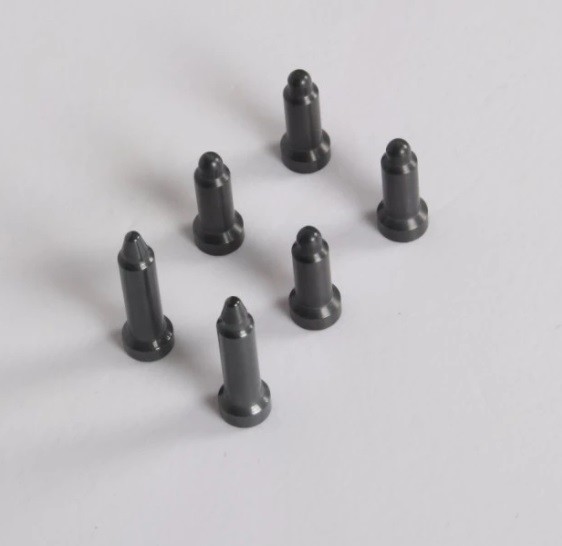

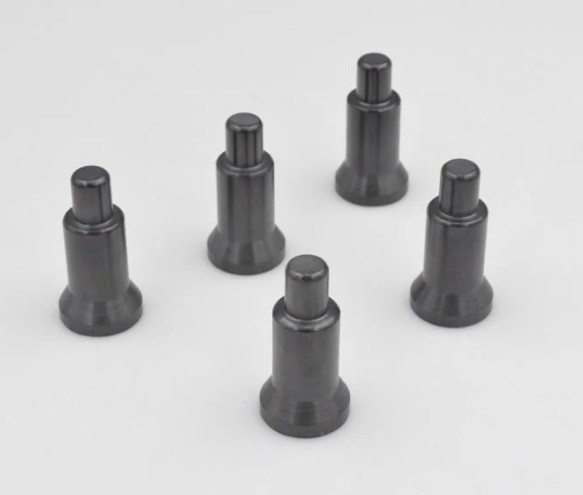

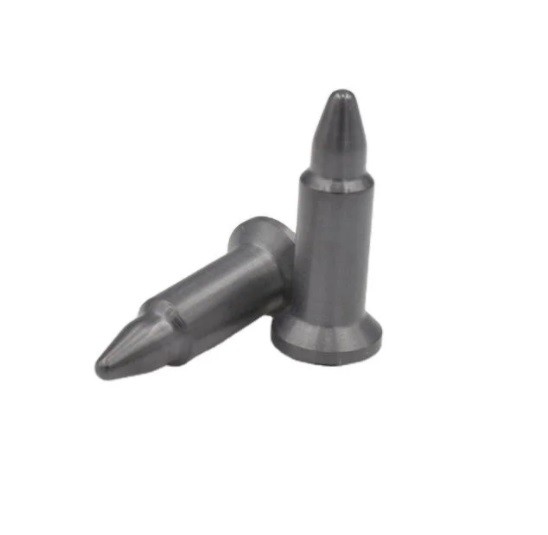

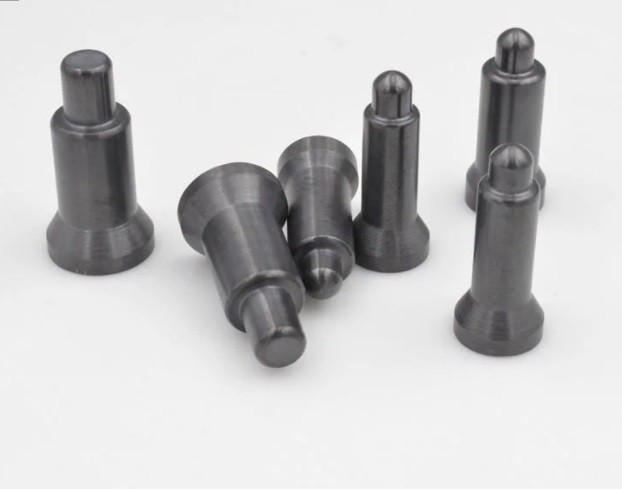

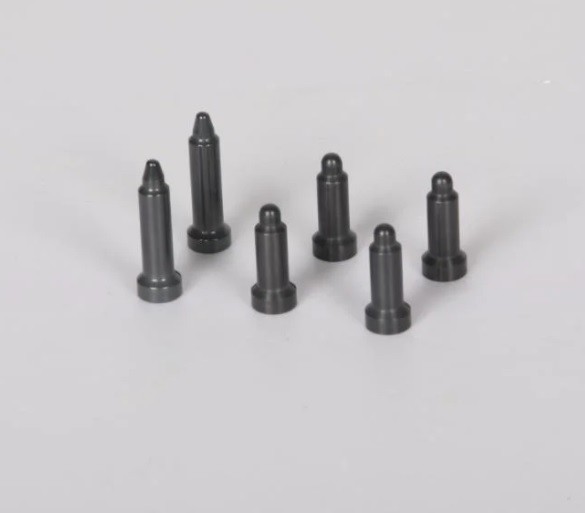

Silicon Nitride Ceramic Guide Pins For Projection Welding

Silicon Nitride Ceramic Guide Pins For Projection Welding

1 . Descriptions:

Silicon nitride is a man made compound synthesized through several different chemical reaction methods. Parts are pressed and sintered by well developed methods to produce a ceramic with a unique set of outstanding properties. The material is dark gray to black in color and can be polished to a very smooth reflective surface, giving parts with a striking appearance.

High performance silicon nitride materials were developed for automotive engine wear parts, such as valves and cam followers and proven effective. The cost of the ceramic parts never dropped enough to make the ceramics feasible in engines and turbochargers. The very high quality bodies developed for these demanding high reliability applications are available today and can be used in many severe mechanical, thermal and wear applications.

2 . Advantages

The automobile industry is keeping up with innovation by utilizing advanced technical ceramics to generate performance-improving changes in its production processes. High-Performance Ceramics are used to make pins that are used for positioning and welding by well-known automakers. Ceramic locating pins for automobile body welding and construction have outstanding benefits.

• As much as 100 times stronger than steel

• Diamond-like hardness

• High resistance to wear and tear

• Very good shape stability

• Positioning with absolute accuracy

• Excellent surface finish

• Electrically insulating

• High dimensional quality of the welding sets

• No deformation of sealing holes

• No insulation necessary

• Low process variations

Physical Properties

High strength over a wide temperature range

High fracture toughness

High hardness

Outstanding wear resistance, both impingement and frictional modes

Good thermal shock resistance

Good chemical resistance

Available Nut Sizes:

• M4

• M6

• M8

• M10

• M12

• M14
