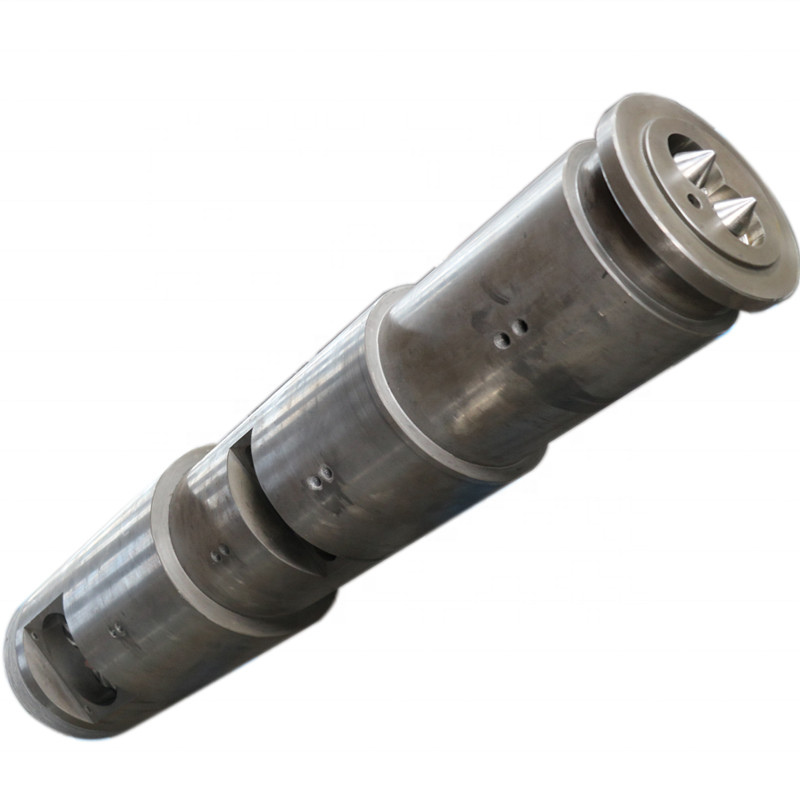

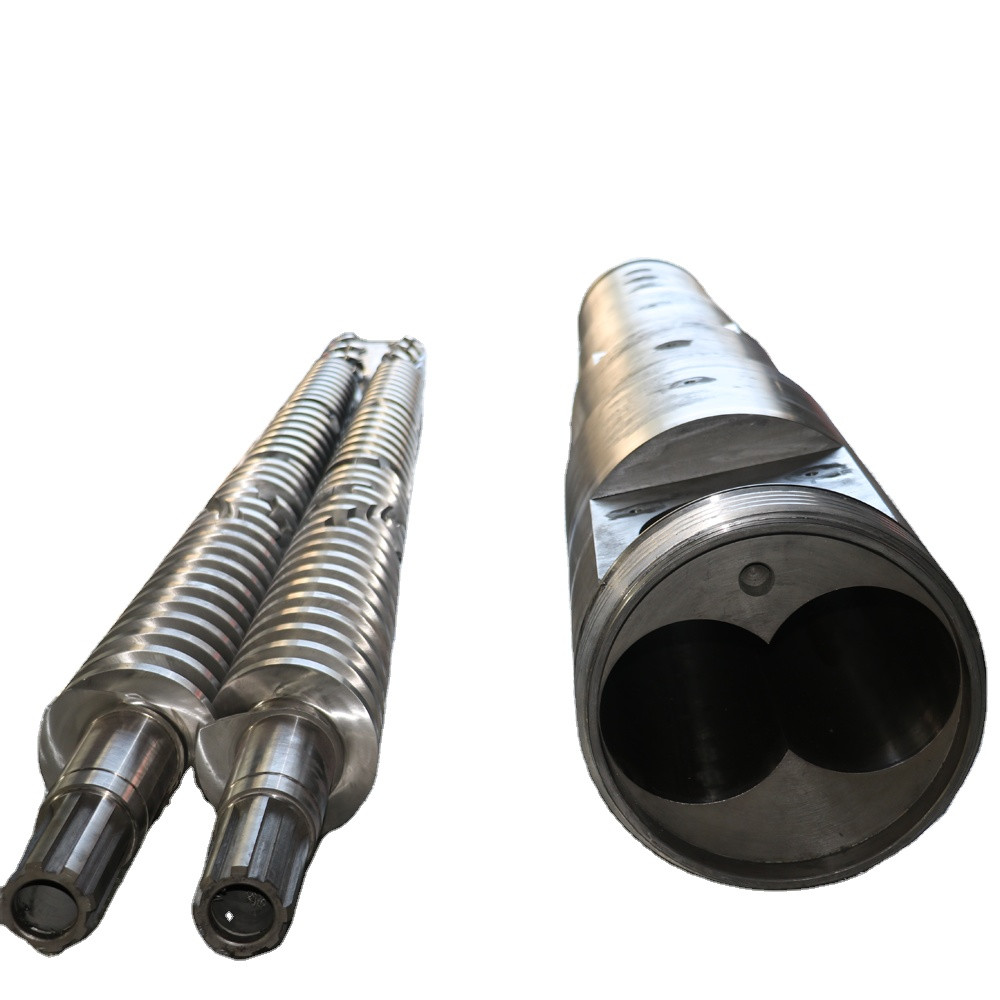

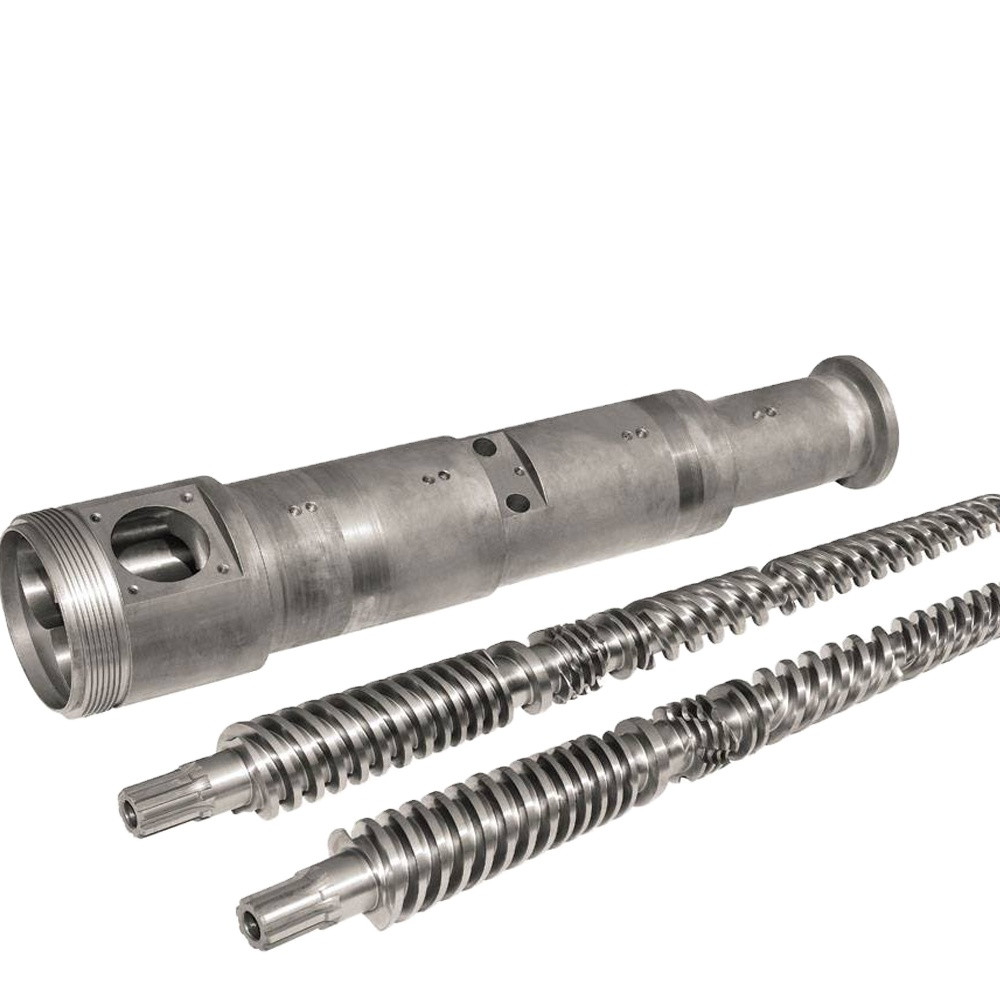

92/188 Twin Conical Screw and Barrel for PVC Extrusion
1 . Description:
Conical twin screw and barrel cylinder has the advantage of lower rotation speed, smaller shear stress between the small screw
Good plasticization, high productivity, small shear force, stable pressure , less wear and tear and low cost.
Conical twin-screw and barrel is widely used in PVC products processing, especially for the production of PVC products with the output over 350Kg / h, because the parallel twin-screw and barrel costs less than conical twin-screw and barrel while it has more mature technology.
Conical twin-screw and barrel is successfully applied in PVC plate, pipe, profile, pellet and mould, at the same time, it solved the technical problem of low foaming, high foaming, high filling, wear and corrosion.
| Product | twin bimetallic conical screw and barrel |
| Material | 38 CrMoAlA(JIS SACM645); 42 CrMo(AISI 4140) Cr12MoV(JIS SKD-11);4Cr5MoSiV1(JIS SKD-61) |
| Nitrided Hardness | HV950°~1000° |
| Hardness after hardening and tempering | HB260 ° |
| Nitrided Depth | 0.5~0.7mm |
| Nitrided Brittleness | above 2 stage |
| Surface Roughness | Ra0.4 |
| Screw straightness | 0.015mm |
| Hardess of surface chromium-plating after Nitriding | HV≥950HV |
| Chromium plating Depth | 0.05~0.10mm |
| ALLoy Depth | 0.8~2.0mm |
| Alloy hardness | HRC56°~65° |
| Alloy(bimetallic) | iron,nickel,tungsten,molybdenum |
| Types of screw barrel | Gradual type,mutant type,wave type,barrier type,double screen type,shunt type,separation type,exhaust type,pin type,mixed type,double-head type,three-head type,multi head type etc. |
2. Base Materials:
1). 38CrMoAlA(JIS SACM645) Nitriding.
2). 42CrMo(AISI 4140).
3). 4Cr5MoSi V1 (JIS SKD-61).
4). 9Cr18MOV
5). HPT
3 . Bimetallic alloy materials:
1). Fe-based alloy
2). Ni-based alloy/Deloro alloy
3). Co-based alloy
4). NiCo-based alloy
5). Tungsten carbide/Wolfram carbide
