| Place Of Origin: | Jiangsu,China | Hardness For Bimetallic: | HRC50~70 Depending On Different Alloys |
|---|---|---|---|
| Thickness Of Bimetallic: | 1.5~3.0mm Depending On Different Alloy Coating | Specification: | Screw Diameter From 14mm To 500mm |
| Thickness Of Nitriding Layer: | 0.4~0.7mm | Transport Package: | Export Packaging |
| High Light: | Bloom Bimetallic Twin Barrels,Conical Twin Extruder Barrel,Nitride Conical Twin Screw Barrel |
||

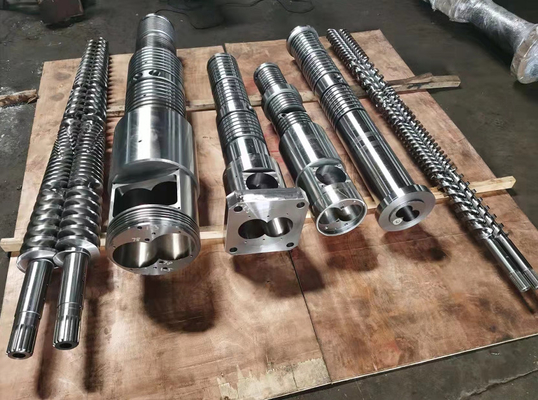

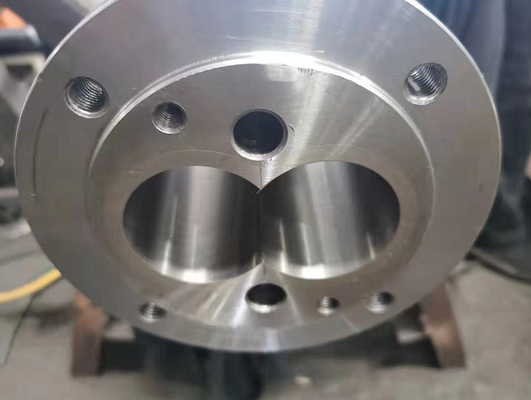

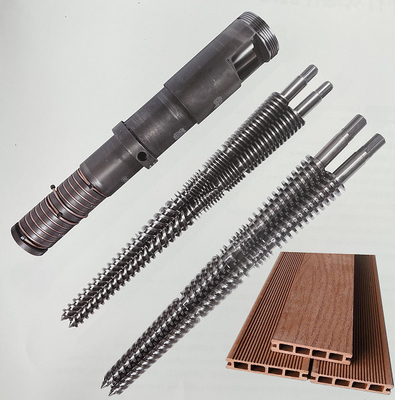

X800 Nitride Conical Twin Extruder Barrel To Process PVC PP, PE LDPE HDPE PLA ABS PA
1 . Description
Bloom bimetallic twin barrels, manufactured by the leader in bimetallic barrel technology, meet or surpass OEM specifications on dimensions, straightness and parallelism.
2 . Benefits:
Extended work life through superior resistance to wear
Increased throughput and product quality through precision fit between screw and barrel for a longer period of time and optimum screw-barrel compatibility
Improved productivity
3 . Features:
Precision engineered barrels with superior chemical and physical properties for full range of process environments
Optimum wear solutions with broadest offering of alloys from general purpose to the most complex applications for all resins
High quality proprietary backing steel for less inherent stress, better straightness during heat cycles for the ultimate in strength and straightness
Computer controlled furnace ensuring correct casting, preparation and repeatability, uniform bimetallic carbide distribution and maximized hard surfacing compatibility
4 . Technical Specification
| Design Details | Screw I TYPE:inside is water/oil cooling system II TYPE:outside is oil cooling system Barrel I TYPE:outside is air cooling system II TYPE:out side is copper pipe around cooling system |
| Accessories | Stop ring+washers to adjust the space between screw and barrel |
| Technical Specification | Material:High quality 38CrMoAlA Process:Advanced nitriding & bimetallic process Hardness After Hardening & Tempering:HB280-320 Nitrided Hardness:HV900-1000 Nitrided Case Depth:0.45-0.8mm Nitrided Brittleness:Less than Grade 2 Surface Roughness:Ra 0.4 Screw Straightness:0.015mm Alloy Hardness:HRC 50-65 Alloy Depth:0.8-2.0mm |
| MOQ | 1 set (1 pair of screws and 1 pc barrel) |
| Type | Conical Twin Screw and Barrel |
