Introduction:

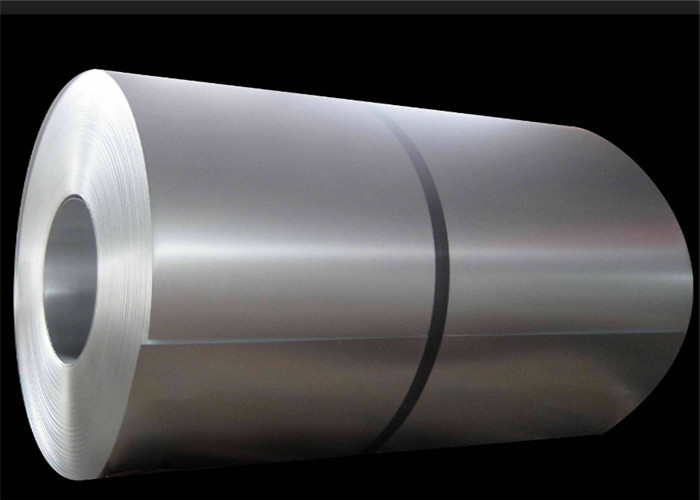

Google Search Super Duplex Stainless Steel 2205 Coil
Duplex 2205 duplex stainless steel alloy is 22% chromium, 2.5% molybdenum, and 4.5% of nickel, nitrogen alloyed stainless steel. 2205 is characterised by:
1. high mechanical strength – roughly twice the proof strength of austenitic stainless steels.
2. physical properties that offer design advantages.
3 .good weldability.
4. high resistance to stress corrosion cracking in chloride-bearing environments and in environments containing hydrogen sulphide.
5. high resistance to general corrosion, pitting and crevice corrosion.
6. high resistance to erosion corrosion and corrosion fatigue.
Applications:
Alloy duplex 2205 Stainless Steel is used in a wide variety of home and commercial applications, including:
Chemical processing,transport and storage-pressure vessels,tanks,piping,and heat exchangers.
Oil and gas exploration and processing equipment-piping,tubing,and heat exchangers.
Marine and other high chloride environments.
Effluent scrubbing systems
Pulp and paper industry-digesters,bleaching equipment,and stock-handling systems.
Cargo tanks for ships and trucks
Food processing equipment
Chemical Composition
|
Grade & Standard |
Composition,% max | ||||||||
| C | Si | Mn | P | S | Cr | Ni | Mo | N | |
|
2205 ASTM A240 |
0.03 | 1.0 | 2.0 | 0.03 | 0.03 | 22-23 | 4.5-6.5 | 3-3.5 | 0.14-0.2 |
|
UNSS31803 ASTM A790 |
0.03 | 1.0 | 2.0 | 0.03 | 0.03 | 21-23 | 4.5-6.5 | 2.5-3.5 | 0.08-0.2 |
|
F51 ASTM A182 |
0.03 | 1.0 | 2.0 | 0.03 | 0.03 | 21-23 | 4.5-6.5 | 2.5-3.5 | 0.08-0.2 |
| 1.4462 | 0.03 | 1.0 | 2.0 | 0.03 | 0.03 | 21-23 | 4.5-6.5 | 2.5-3.5 |
0.1-0.22 |
Mechanical Property
| Type |
Tensile Strength,
min. |
Yield Strength,
min. |
Elongation in 2 in.(50mm) | Hardness, | |||
| ksi | MPA | ksi | MPA | min ,% | Max. | ||
| Brinell | Rockwell B | ||||||
| S32205 | 96 | 655 | 65 | 450 | 25 | 293 | 31 |
*Note:
Unless otherwise indicated,a grade designation originally assigned by the American Iron and Steel Institute(AISI).
Physical properties of grade Duplex 2205 stainless steels are tabulated below:
| Grade | Modulus of Elasticity | Mean Coefficient of Thermal Expansion | Thermal Conductivity | Specific Heat | Electrical Resistivity | Melting Range | |||
| GPa | Mean Coefficient of Thermal Expansion | (W/m.K) | (J/KG.K) | nΩ.m | (℃) | ||||
| (0-100℃) | (0-315℃) | (0-538℃) | (at 100℃) | (at 500℃) | (0-100℃) | ||||
| 2205 | 190 | 13.7 | 14.2 | ... | 19 | ... | 418 | 850 | 1410-1460 |
Grade Specification Comparison:
Below table provides an approximate grade comparison for Duplex 2205 stainless steels.The comparisons given in the table are of functional similar materials.(For exact equivalents ,the original specifications must be referred to).
| Grade | UNS No | Old British | Euronorm | France | Japan | Sweden | Korea | ||
| BS | EN | NO | NAME | NF | JIS | SS | KS | ||
| 2205 | S32205 | 318S13 | ... | 1.4462 | X2CrNiMoN22-5-3 | ... | SUS329J3L | 2377 | STS329J3L |
