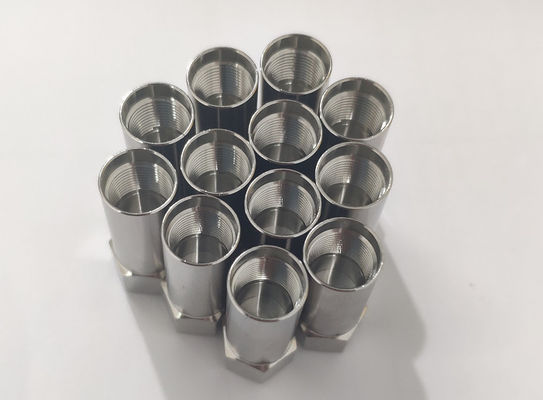

Electron Parts And Components Made From Nitronic 60 Bars With Good Perfromance

                                                        Electron Parts and Components Made From Nitronic 60 Bars With Good Perfromance


1 . Description

Nitronic 60 is truly an all purpose metal. This fully austenitic alloy was originally designed as a temperature alloy, and subsequently has good high temperature properties for temperatures around 1800ºF. The oxidation resistance of Nitronic 60 is similar to Type 309 S.S., and far superior to Type 304S.S. This grade is best known for its wear and galling resistance.

The additions of Silicon and Manganese have given this alloy a matrix to inhibit wear, galling, and fretting even in the annealed condition. Higher strengths are attainable through cold working the material and is still fully austenitic after severe cold-working. This working does not enhance the anti-galling properties as is normal for carbon steels and some stainless steels. The benefit to the cold or hot work put into the material is added strength and hardness, and the wear resistance does not decrease noticeably. Chromium and Nickel additions give it comparable corrosion to 304 and 316 stainless steels, while having approximately twice the yield strength. The high mechanical strength in annealed parts permits use of reduced cross sections for weight, and cost reductions through the use of thinner stock.


2 .Characteristics

Corrosion Properties

The corrosion resistance of Armco NITRONIC 60 Stainless Steel falls between that of types 304 and 316. However, experience shows that in a wear system, a galling or siezure failure occurs first, followed by dimensional loss due to wear, and finally corrosion. Galling and wear must be the first concerns of the design engineer. Although the general corrosion resistance of NITRONIC 60 is not quite as good as Type 316, it does offer better chloride pitting resistance, stress corrosion cracking resistance and crevice corrosion resistance than Type 316 in laboratory conditions. Corrosion tests are not normally performed with NITRONIC 60 High Strength.

Corrosion Resistance
Nitronic 60’s uniform corrosion resistance is better than 304 stainless in most environments. The yield strength of Nitronic 60 is nearly twice that of 304 and 316 stainless steels. Chloride pitting resistance is superior to that of type 316 stainless; Nitronic 60 provides excellent high temperature oxidation resistance and low temperature impact.
Applications using Nitronic 60 are valve stems, seats, and trim, fastening systems, screening, pins, bushings and roller bearings, pump shafts and rings. Other uses include wear plates, rails guides, and bridge pins.

Wear Resistance
This alloy provides a significant lower cost way to fight wear and galling compared to Nickel or Cobalt based alloys.
