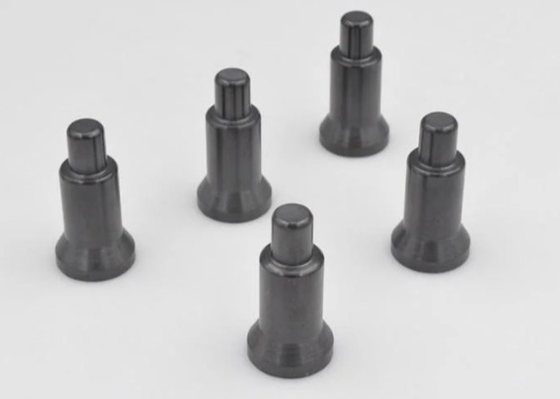

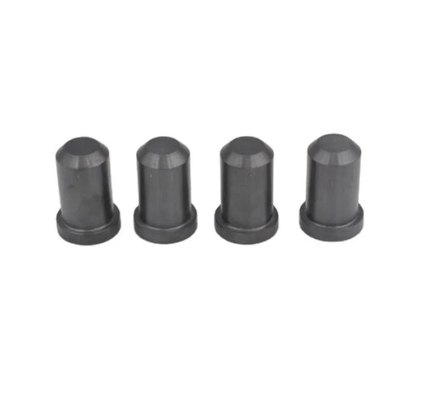

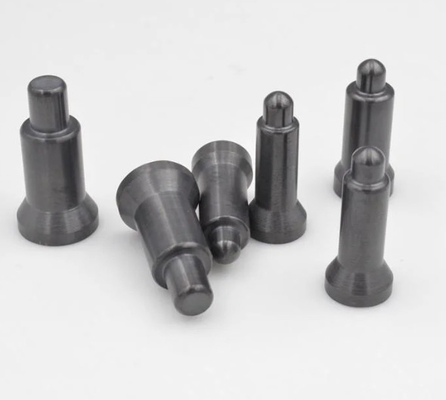

High Hardness Long Life Silicon Nitride Ceramic Guide Locating Pin For Nut Welding

High Hardness Long Life Silicon Nitride Ceramic Guide Locating Pin For Nut Welding

High Hardness Long Life Silicon Nitride Ceramic Guide Locating Pin For Nut Welding
High Hardness Long Life Silicon Nitride Ceramic Guide Locating Pin For Nut Welding
High Hardness Long Life Silicon Nitride Ceramic Guide Locating Pin For Nut Welding
Product Details:
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negtation
Packaging Details: Packing with plastic bags
Delivery Time: 25days
Payment Terms: T/T
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Place Of Origin: Jiangsu,China Product Name: Ceramic Pin
Application: Nut Welding / Fixture Nut Size: M4,M5,M6,M8,M10 And Customized Size
Tolerance: As Your Requirements Certification: ISO 9001
High Light:

High Hardness Locating Pin

,

Ceramic Guide Locating Pin

,

Long Life Locating Pin

High Hardness Long Life Silicon Nitride Creamic Guide Locating Pin for Nut Welding



1 . Description

Silicon nitride is the raw material for the preparation of pneumatic sintered structural parts ceramics, which includes mixing, pressing, cold isostatic pressing, sintering and post-processing steps, the preparation method steps are simple, convenient and easy, the preparation process is stable, the production efficiency is high, the structural parts ceramics prepared by this method have large hardness, high strength, and have high temperature resistance, high voltage impact resistance and bending resistance.





2 . Advantages

1) The sintering temperature of the silicon nitride blank is about 1700 degrees. Silicon nitride sintering is generally three methods, reaction sintering, pressure-free sintering and pressure sintering. From the perspective of ceramic evaluation, the quality of the three methods increases sequentially.

2) Silicon nitride finishing cost is high. Since the silicon nitride hardness is too high, it needs to be processed with diamond abrasives, and if special shape processing is required, special equipment is required.
Material name
Unit

SI3N4(G.P.S)

Volume densityg

g/cm3

3.2-3.3

Hardness

HRA

90-93

Bending strength

MPa

700-900

Air hole rate

%

<1

Thermal expansion coefficient

1×10-6/C0

3.5

Breaking tenacity

(MPa m1/2)

7

ThermalConductivity

W/m·K

25


3 . Ceramic Pin Main Features
  • High insulation performance.
  • High temperature resistance.
  • Wear resistant.
  • Long life and low cost.
  • Accept Make to Order .
  • Pure Ceramic (Zirconia and Silicon nitride)
High Hardness Long Life Silicon Nitride Ceramic Guide Locating Pin For Nut Welding 0
High Hardness Long Life Silicon Nitride Ceramic Guide Locating Pin For Nut Welding 1
High Hardness Long Life Silicon Nitride Ceramic Guide Locating Pin For Nut Welding 2
High Hardness Long Life Silicon Nitride Ceramic Guide Locating Pin For Nut Welding 3
