High-Density T2 Copper Braided Flexible Connector with Zero-Resistance Bond for Precision Resistance Welding
Basic Properties
Place of Origin:Jiangsu, China (Mainland)
Brand Name:BLM
Certification:ISO 9001
Model Number:standard or customized
Trading Properties
Minimum Order Quantity:2
Price:exw usd 3.5/kilograms

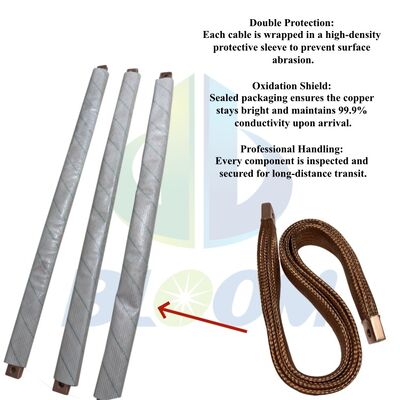

Standard Packaging:wooden case
Delivery Time:7-45 work days
Payment Terms:L/C,T/T
Supply Ability:3000 sets/ month
Specifications
| Purity Grade: | T2 Oxygen-Free Copper (≥ 99.9%) | Manufacturing Tech: | Advanced Precision Cold-Pressing |
|---|---|---|---|
| Surface Treatment: | Bare Copper / Tin-Plated / Silver-Plated | Standard Compliance: | RoHS & Industrial Grade Quality Control |
| Operating Range: | -40°C To +300°C | Customization Service: | 100% Based On Customer's Drawings |
| Precision Tolerance: | ± 0.1mm | Core Advantage: | High Conductivity & Zero-Resistance Bond |
| Highlight | T2 copper braided flexible connector,high-density copper welding connector,zero-resistance bond welding connector |
||
Product Description

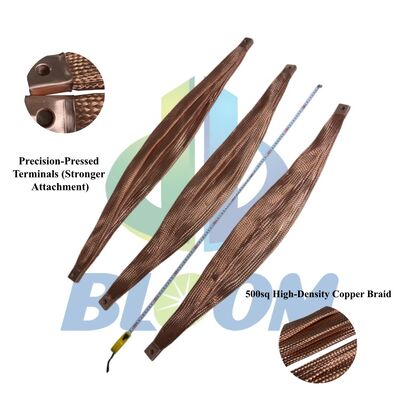

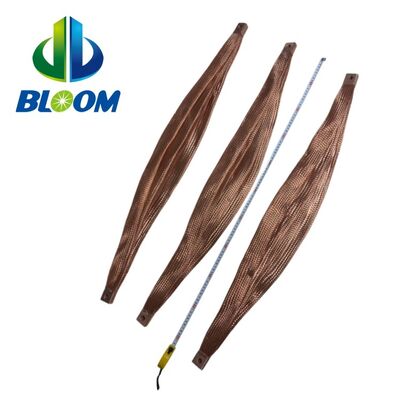

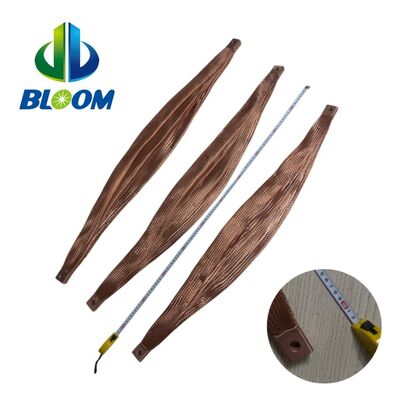

High-Density T2 Copper Braided Flexible Connector for Resistance Welding
High-Conductivity Flexible Copper Braided Connector (Air-Cooled Cable)
Product Overview: Bloom's flexible copper braided connectors are specifically engineered for high-frequency resistance welding and industrial power systems. By utilizing ultra-pure T2 copper and advanced cold-pressing technology, we deliver a connection solution that maximizes electrical efficiency while withstanding extreme physical stress and thermal expansion.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | T2 Pure Oxygen-Free Copper (Purity ≥ 99.9%) |
| Manufacturing Process | High-Pressure Cold Pressing (Precision Terminals) |
| Cross-Sectional Area | Customizable (e.g., 200sq, 500sq, 800sq mm) |
| Resistivity | ≤ 0.0172 Ω*mm²/m (at 20°C) |
| Terminal Treatment | Bare Copper / Tin-Plated / Silver-Plated |
| Working Temperature | -40°C to +300°C |
| Precision Tolerance | ± 0.1mm (or based on technical drawings) |
| Customization | 100% Production based on Customer Drawings |
Core Advantages
Zero-Resistance Bond: Our precision cold-pressing technology fuses the terminal and the copper braid at a molecular level, eliminating the interface resistance found in soldered alternatives.
Exceptional Flexibility: The high-density multi-strand weave allows the cable to endure millions of bending cycles in robotic welding arms without fatigue.
Optimized Air Cooling: Specifically designed for "Waterless" environments, the large surface area of the braid ensures efficient heat dissipation.
100% Drawing-Based Customization: Bloom produces every unit exactly to your technical drawings.
