Automatic Vibrating Bowl Bolt Nut Feeder For Projection Welding Machine

Automatic Vibrating Bowl Bolt Nut Feeder For Projection Welding Machine

  • Automatic Vibrating Bowl Bolt Nut Feeder For Projection Welding Machine
  • Automatic Vibrating Bowl Bolt Nut Feeder For Projection Welding Machine
  • Automatic Vibrating Bowl Bolt Nut Feeder For Projection Welding Machine
Automatic Vibrating Bowl Bolt Nut Feeder For Projection Welding Machine
Product Details:
Brand Name: BLM-kcf-1
Model Number: BLM
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: packed and labeled according to the regulations and customer's requests.Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.
Delivery Time: 25-30 days subject to the clients' requirement and quantity
Payment Terms: Western Union, L/C, T/T
Supply Ability: 3000 pc/pcs per Month
Contact Now
Detailed Product Description
Place Of Origin: Jiangsu, China (Mainland) Product Name: Nut Feeder
Condition: New Machinery Test: Test Video Offered
Applicable Industries: Garment Shops,building Material Shops,manufacturing Plant,machinery Repair Shops,construction Works,energy &mining,automobile Industry Application: Ex-Work,FOB,CNF,CFR,CIF,FCA,DDP,DDU
Voltage: 220V Indusrty: Automobile
Air Pressure: 0.25-0.4Mpa Nut Shapes: Standard Or Customized
High Light:

Automatic Vibrating Bowl Feeder

,

Automatic Vibrating Nut Feeder

,

Automatic Vibrating Bolt Feeder

Automatic Vibrating Bowl Bolt Feeder Nut Feeder For Projection Welding Machine





1 . How Nut Conveyors Works?

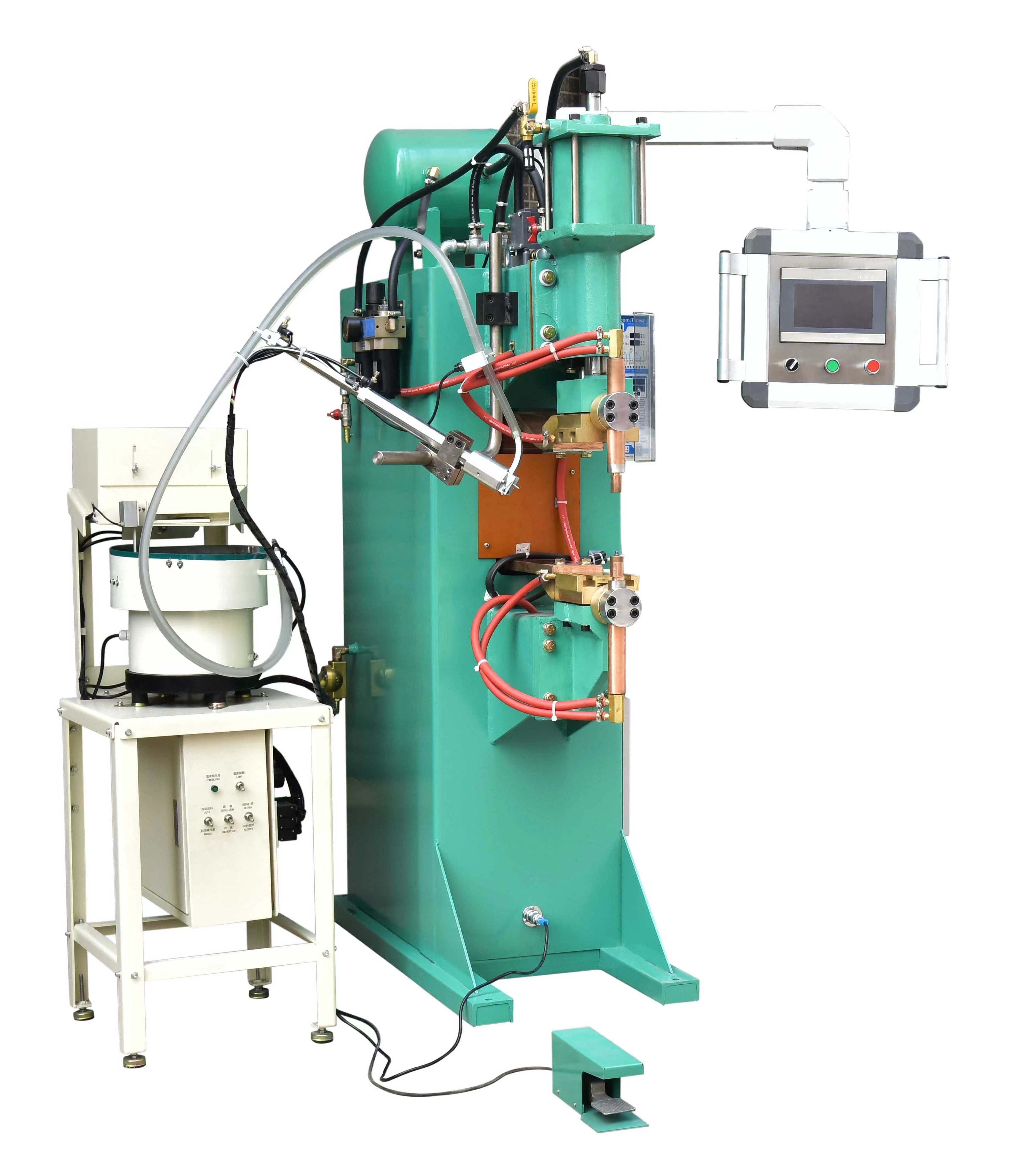

During the conveying process of the nut conveyor, the vibrating plate vibrates, drives the nuts to rotate, and moves according to the pre-set trajectory of the vibrating plate, screens the nuts that meet the standards to enter the conveying pipeline, and distributes and positions the nuts to the conveying gun by the distributor. The nut is sent to the designated station by the ejector rod inside the gun to complete the conveying process. The nut conveyor is usually used in conjunction with the spot welding machine. When the nut is sent to the positioning pin of the spot welding machine through the ejector rod inside the gun, the ejector rod is automatically retracted, and the spot welder completes the welding action.



Automatic Vibrating Bowl Bolt Nut Feeder For Projection Welding Machine 0





2 .  Features

It can conveyor the nuts quickly and accurately , which is a good solution for manual operate. Just wire nuts convey to the welding controllers, its working is fast and safe, which has been widely used in many of the automobile industry.

Power supply

AC220V, 50Hz / 60Hz
Max 250 - 400VA

Nut shapes

Square, round. Hexagon, T, dome, with cover, with rib, collar etc.

Air pressure

0.25 - 0.4MPa

Sizes

M4 - M12, 7/16

Bowl size

φ260mm, φ350mm

Hopper capacity

9L (Approx. 10,000 pcs for M6 nut)

Supply capacity

40 - 60pcs/min

Supply chute length

2m

Angle

0° - 90°

Weight

100kgs



Automatic Vibrating Bowl Bolt Nut Feeder For Projection Welding Machine 1





3 . Composition

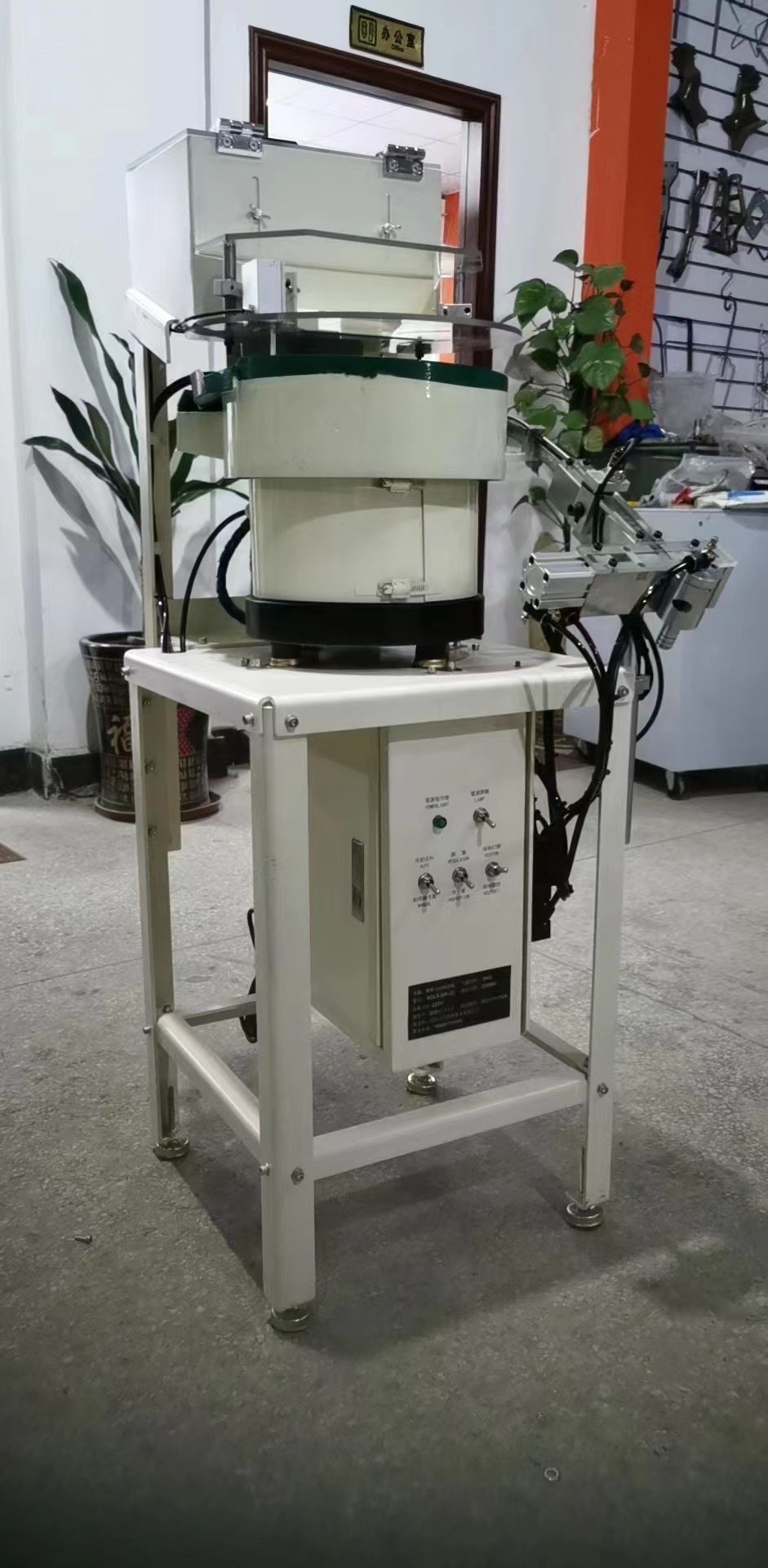

It consists of body, vibrating plate, conveying gun body, conveying pipe (material pipe), distributor, cylinder and controller (including program).





4 . Application

It is generally used in conjunction with welding equipment. For example, an automobile manufacturer needs to weld nuts on steel plates. If it is transported by hand, the efficiency is low at first, and the most important thing is that major safety accidents will occur due to operational errors. If the nuts are not completely loosened Soldering is done while the hands are open, and it is easy to break fingers at this time. In order to improve production efficiency and eliminate such safety hazards, it is a good solution to replace manual assembly with fast and accurate nut conveyors.



Automatic Vibrating Bowl Bolt Nut Feeder For Projection Welding Machine 2

Automatic Vibrating Bowl Bolt Nut Feeder For Projection Welding Machine 3
