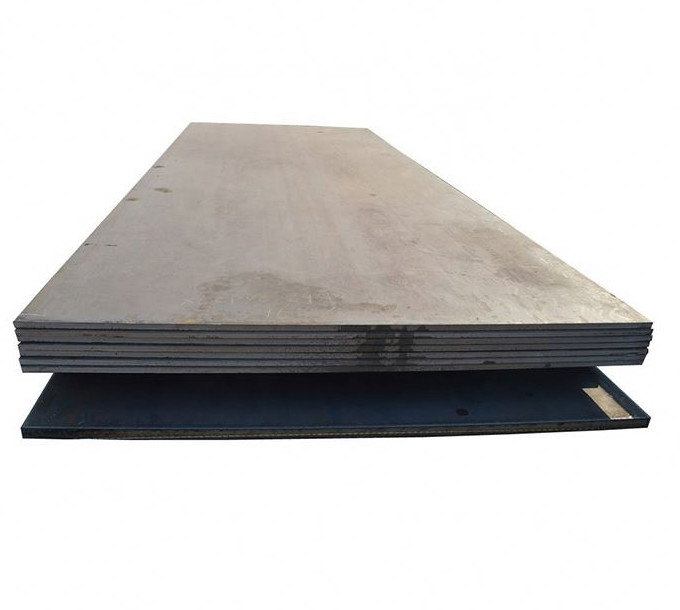

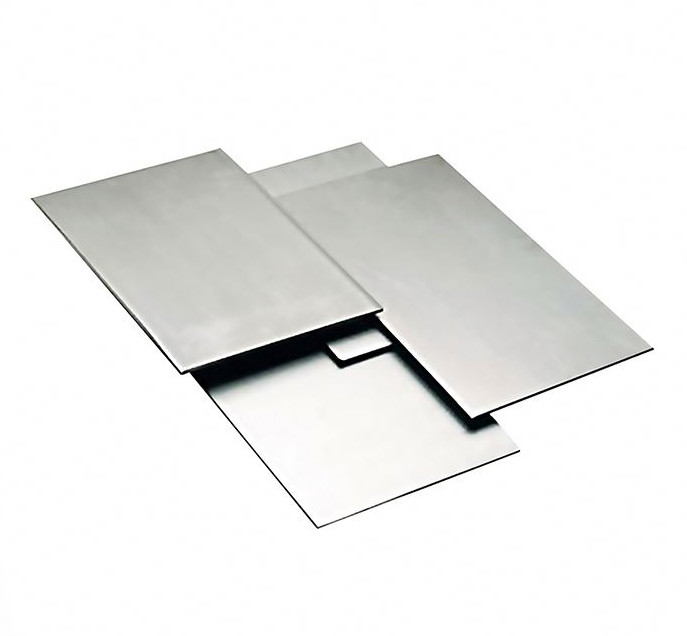

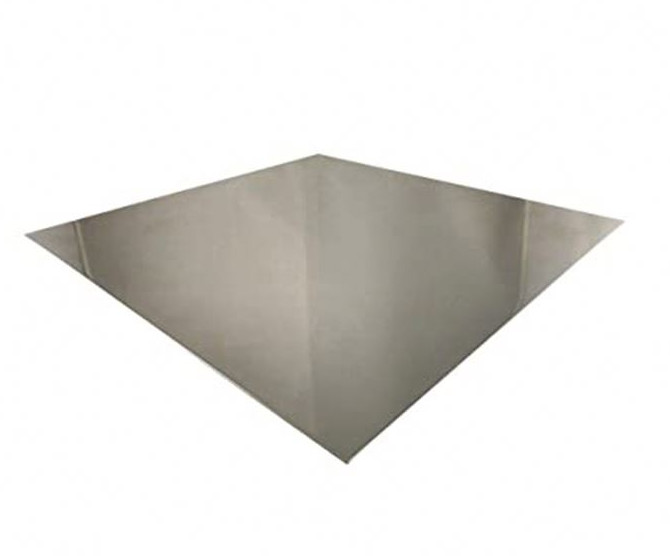

Ferro Nickel Alloy Invar 36 4J36 Nickel Plate Hot Rolled Sheet

Product Details:

Place of Origin:	Jiangsu,China
Brand Name:	BLM
Certification:	ISO
Model Number:	BLM-S

Payment & Shipping Terms:

Minimum Order Quantity:	100kgs
Price:	Negtation
Packaging Details:	Packing with wooden box
Delivery Time:	25days
Payment Terms:	T/T
Supply Ability:	5 tons per month

Contact Now

Detailed Product Description

Place Of Origin:	Jiangsu,China	Type:	Invar 36
Application:	Electric Industry	Material:	4J36
Size:	Standard Or According To Customers' Drawings	Surface:	Bright
High Light:	Hot Rolled Sheet Invar 36 Material , Nickel Plate Invar 36 Material , Ferro Nickel Alloy Invar 36 Material

Factory Ferro Nickel Alloy Invar 36 4J36 Nickel Plate Price Hot Rolled Sheet

1 . Description

Invar (also know as Invar 36, NILO 36, Pernifer 36, and Invar Steel) is a low expansion alloy consisting of 36% Nickel, balance Iron. Invar Alloy exhibits extremely low expansion around ambient temperatures, making Invar Alloy particularly useful in applications where minimum thermal expansion and high dimensional stability is required, such as in precision instruments like optoelectronic devices, optical and laser benches, electronics, and other kinds of scientific instruments.

Product Name	Factory Ferro Nickel Alloy Invar 36 4J36 Nickel Plate Price Hot Rolled Sheet
Standard	ASTM, AISI, GB, JIS, EN, DIN
Specification	Width: 500~1500mm
	Thickness: 0.2~8.0mm
	Thickness: 0.2~8.0mm
Type	Cold/Hot rolled plate, thick plate, color coated plate, galvanized plate
Material	200 series: 201, 202 300 series: 301, 302, 303, 304, 304L, 309, 310, 310S, 316, 316L, 321, 347 400 series: 409, 410, 420, 430, 440 600 series: 15-5PH, 17-4PH, 17-7PHOther: 9004L Duplex: 254SMO, 2205, 2507, ASTM A694, S32760 Hastelloy: B/B-2/B-3/C-4/C-22/C-276/C-2000/G-30/G-35/X/N; Haynes: 230/556/188 Inconel: 600/601/617/625/686/690/718/725/783/X-750 Incoloy: 800/800H/800HT/825/925/926/A-286 GH: GH2132, GH3030, GH3039, GH3128, GH4180, GH3044 Monel: 400/K500 Nitronic: 40/50/60 Nimonic: 75/80A/90
Quality	MTC
Package	Standard seaworthy package or Customized.
Delivery Time	5-30 working days after receiving the down payment.
*Payment Term	Trade assurance, By T/T, 50% down payment, 50% balance before shipment.

2 . Typical Physical Properties

Density (g/cm3)	8.1
Electrical resistivity at 20℃(Ωmm2/m)	0.78
Temperature factor of resistivity(20℃~200℃)X10-6/℃	3.7~3.9
Thermal conductivity, λ/ W/(m*℃)	11
Curie point Tc/ ℃	230
Elastic Modulus, E/ Gpa	144

3 . The Heat Treatment Process

The heat treatment process
Annealing for stress relief	Heated to 530~550℃ and hold 1~2 h. Cold down
annealing	In order to eliminate hardening, which be bring out in cold-rolled, cold drawing process. Annealing needs heated to 830~880℃ in vacuum,hold 30 min.
The stabilization process	1) In protective media and heated to 830 ℃, hold 20min. ~ 1h, quench 2) Due to the stress generated by quenching, heated to 315℃,hold 1~4h.
Precautions	1) Can not be hardened by heat treatment 2) Surface treatment can be sandblasting, polishing or pickling. 3) Alloy can be used 25% hydrochloric acid pickling solution at 70 ℃ to clear oxidized surface
