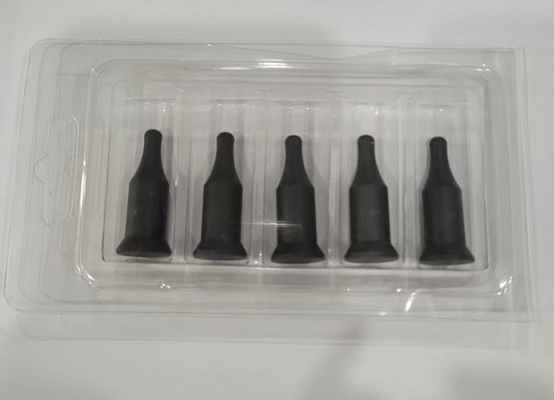

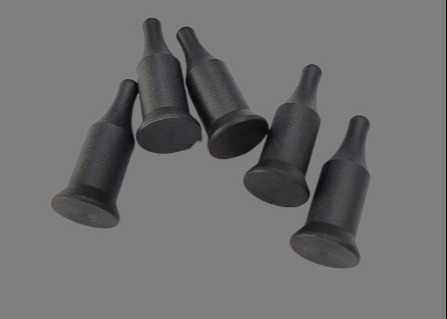

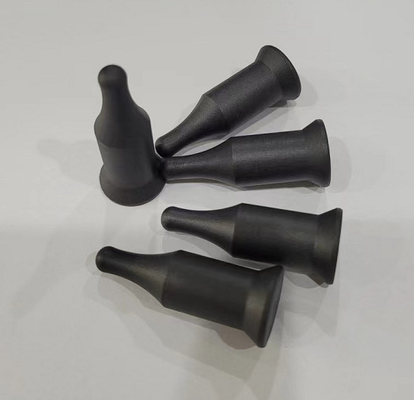

KCF Insulated Position Guide Pin Round Head For Welding Of Bolts And Nuts

KCF Insulated Position Guide Pin Round Head And Pointed Used For Welding Of Bolts And Nuts In Automobile Industry

1 . Descriptions:

KCF Guide Sleeves have been used in Resistance Welding applications for several decades. KCF is not a coating, it's the actual material. KCF Alloy is a Ferritic Stainless Alloy, which adds Chrome, Aluminum, and other special elements. When the KCF material is heat treated via a special high temperature process, the Aluminum comes to the surface and joins with oxygen to form Aluminum-Oxide, creating an insulated skin on its surface. This process makes the pins and sleeves very strong because it's all same the material, even the insulated surface. The surface of the KCF pin/sleeve is 20-30 micrometers thick.

2 . Product Features

Product color: black

Size: M4.M5.M6.M8.M10.M12 or customizes

Pin head shape: round head/pointed head

Object: convex welding nut/sheet metal hole and other insulation positioning

scope: Artificial put/nut conveyor/robot welding product

3. advantage

Have dissimilar extra strong sex with alumina ceramic materials and insulation, good insulation, this material can be processed into round, flat, oval, shapes of block, is mainly used for high temperature, insulation environment protection some product parts, like bolt, nut welding in automobile industry.

4. KCF Sleeves & KCF Pins

5. Customized Pins

6. welding assembly Picture

7. Legend of welding sample
