Customized Silicon Nitride Ceramic Welding Pins M4 M5 M6 M7 M8 M10 M12 M14

Quality Customized Silicon Nitride Ceramic Welding Pins M4 M5 M6 M7 M8 M10 M12 M14 factory
Quality Customized Silicon Nitride Ceramic Welding Pins M4 M5 M6 M7 M8 M10 M12 M14 factory
Quality Customized Silicon Nitride Ceramic Welding Pins M4 M5 M6 M7 M8 M10 M12 M14 factory

Basic Properties

Place of Origin:Jiangsu,China
Brand Name:BLM
Certification:ISO
Model Number:BLM-S

Trading Properties

Minimum Order Quantity:10PCS
Price:Negtation
Standard Packaging:Packing with plastic bags
Delivery Time:25days
Payment Terms:T/T
Supply Ability:500pcs per month
Specifications
Place Of Origin: Jiangsu,China Application: Industrial Ceramic
Shape: Round Size: Customized
Feature: Corrosion Resistant Material: Silicon Nitride
Highlight

Customized Ceramic Welding Pins

,

Ceramic Welding Guide Pin

,

M5 Ceramic Welding Pins
Product Description

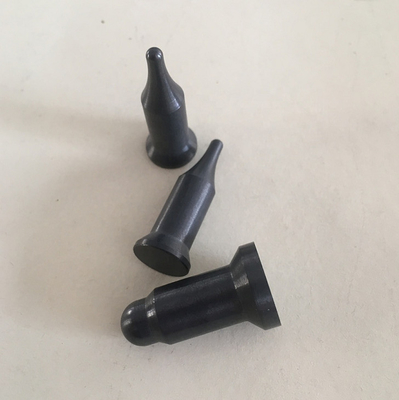

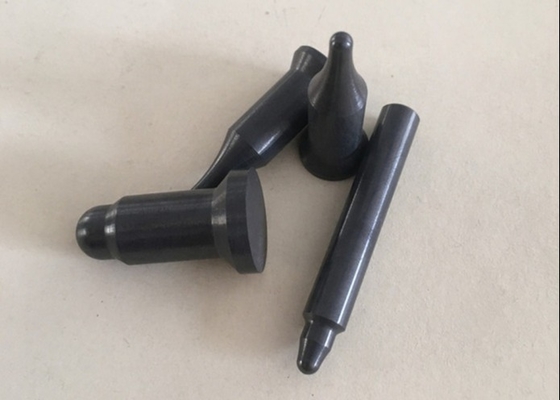

M4 M5 M6 M7 M8 M10 M12 M14 Customized Silicon Nitride Ceramic Welding Guide Pin



1 . Description

     Silicon Nitride (Si3N4) has good high temperature strength, creep resistance and oxidation resistance.In addition, its low thermal expansion coefficient gives excellent thermal shock resistance compared with most ceramic materials.

The fact that this ceramic material is an extremely low-friction and non-magnetic material with a very low specific weight, excellent dry running properties and therefore superior emergency operating features is what makes it the material of choice for demanding applications,like ceramic bearing.
Silicon nitride is produced in three main ways; Gas Pressure Sintering silicon nitride (GPSSN) , Hot Isostatic Pressing silicon nitride (HIPSN) and Hot Pressed silicon nitride (HPSN). Three way can pore-free densified compacts with low amounts of sintering additives can be obtained. So they present high strength with high reliability and good heat resistance. These properties make them one of the best candidate materials for heat engine component as well as other industrial fields application.





2 . Silicon Nitride Ceramic Properties

Silicon Nitride Ceramic Properties Color: Gray and Gray-black

Density: 3.2~3.25 g/cm3

Hardness: HRA 92~94

Highest Operating Temperature: 1300 ~1600 ℃

Thermal Conductivity: 23-25 W.(M.K)-1

Bending Strength: ≥ 900 Mpa

Fracture Toughness: 6~8 (Mpa.m1/2)

Thermal Expansion Coefficient (at 0~1400℃): 2.95~3 ×10-6/℃





3 . Manufacturing technique:
Uni-axial pressing
Iso-static pressing
Extrusion
Slip casting



Customized Silicon Nitride Ceramic Welding Pins M4 M5 M6 M7 M8 M10 M12 M14 0
