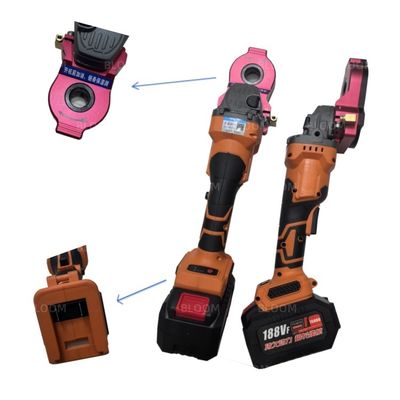

BLM Lithium Battery Brushless Electrode Cap Grinder Single Side Tip Dresser For Spot Welding Electrode Caps Tips
Basic Properties
Place of Origin:China
Brand Name:BLM
Trading Properties
Minimum Order Quantity:2
Price:260
Standard Packaging:1pc/1 box
Delivery Time:7-20 work days
Payment Terms:T/T
Specifications
| Highlight | brushless Spot Welding Electrode Cap Grinder,Grinder Single Side Tip Dresser |
||
|---|---|---|---|
Product Description
| product name | single side electric tip dresser |
| power source | lithium battery power supply |
| grinding maximun diameter | 18mm (it need to be matched according to the tool holder) |
| speed | 1600 r/min |
| battery capacity | 24V - 10A |
| weight |
2.35kg |
Welding provide holders and cutters for most common tip dressers and for the majority of electrodes that are in accordance with global industry standards.manual tip dresser, also supply all kinds of cutter.
It can cut various shapes and angel electrode. Easy to operate and good grinding quality.
Accept customized cutter according to clients' requirements.
Usage:
1. Install the lithium battery to the tail end of the grinder;
2. Insert one side of the blade into the hole on the wall of the tool box;
3. Place the knife box with the installed blade on the rotating gear;
4. Check the direction of the knife box and align it with the electrode head;
5.Set the required power and speed for the tail switch;
6. After the blade contacts the electrode head, manually press the bottom control grinding button;
7. Apply pressure within the range of rotation during grinding
1. Install the lithium battery to the tail end of the grinder;
2. Insert one side of the blade into the hole on the wall of the tool box;
3. Place the knife box with the installed blade on the rotating gear;
4. Check the direction of the knife box and align it with the electrode head;
5.Set the required power and speed for the tail switch;
6. After the blade contacts the electrode head, manually press the bottom control grinding button;
7. Apply pressure within the range of rotation during grinding
