Water Cooled Jumper Cables Custom Secondary Cable Water Cooling Aid Cable for Resistance Welding

Name: Water Cooled Jumper Cables Custom Secondary Cable Water Cooling Aid Cable for Resistance Welding
Brand: BLOOM(suzhou) Materials Co.,Ltd
SKU: standard or customized
Price: 40. USD
Availability: InStock

Quality Water Cooled Jumper Cables Custom Secondary Cable Water Cooling Aid Cable for Resistance Welding factory

Basic Properties

Place of Origin:Jiangsu, China

Brand Name:BLM

Certification:ISO 9001

Model Number:standard or customized

Trading Properties

Minimum Order Quantity:2

Price:USD40.-/set

Standard Packaging:wooden case

Delivery Time:7~30days

Payment Terms:T/T

Supply Ability:300 sets/ month

Specifications

Name:	Secondary Cable	MOQ:	2 SET
Used For:	Industrial Resistance Welding	Condition:	Brand New
Warranty:	12 Months After Shipment	Advantages:	Easy Operation
Insulation Material:	Rubber	Conductor Material:	Copper
Customization:	Yes
Highlight	Hanging spot welding machine parts , spot welding Water Cooling Cable , spot welding machine Secondary Cables

Product Description

Water Cooled Jumper Cables Custom Secondary Cable Water Cooling Aid Cable for Resistance Welding

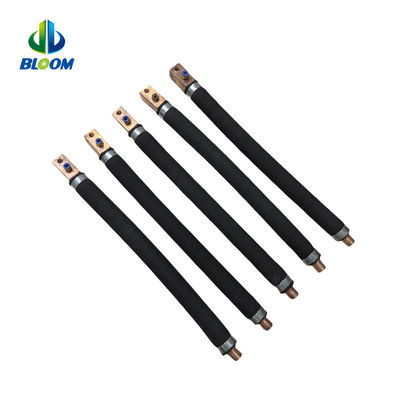

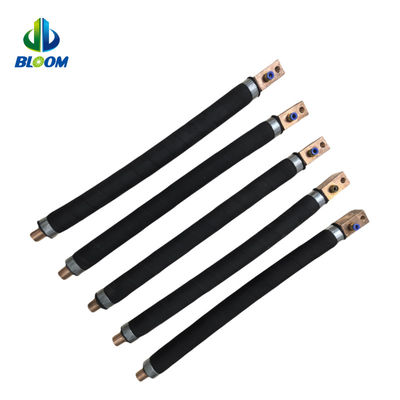

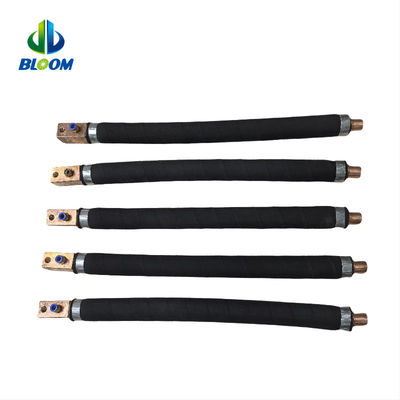

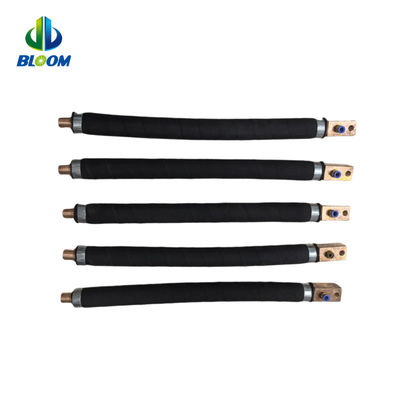

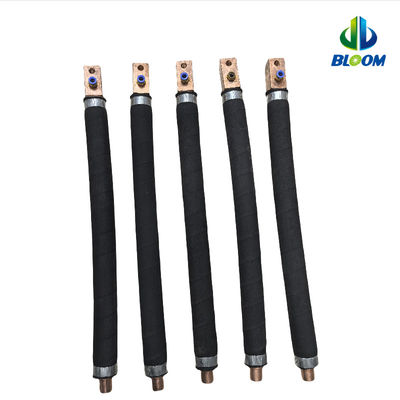

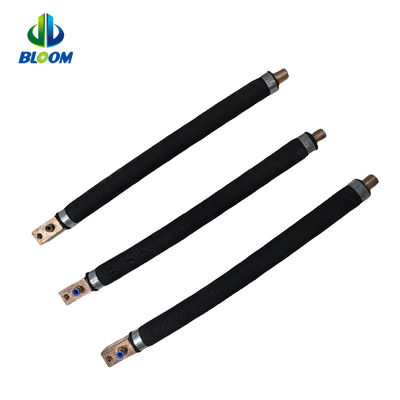

A hollow special cable designed for high-current heating equipment, available as Kickless Cable or Secondary Cable. Composed of electrodes (cable heads), wires and outer protective sleeves, primarily used in suspended spot welding machines.

Key Features

Terminal performance: High-purity red copper material with one-time forging process for superior conductivity
Conductive structure: High-purity red copper rod core, drawn into tinned single wires and twisted together - eliminates fuzzing, breakage issues while achieving low impedance and high power
Rubber sleeve: Special high-rubber content pipes offering softness, wear resistance, heat resistance, elasticity and flexibility with rich color options
Pipe clamp: Stainless steel sleeve pressed by hydraulic locking machine for extended service life and superior aesthetics compared to traditional stainless steel belt locking

Technical Specifications

Name	Secondary / Aid Cable
Insulation Material	Rubber
Conductor Material	Copper
Standard Length	0.6m-3.5m
Standard Diameter	150/200/300/400mm²
Connections	Customization Accepted
Applicable Industries	Spot Welding
Warranty of core components	12 months after shipment
Origin	China
Package	Wooden case or customization
