BLOOM(SUZHOU) MATERIALS CO.,LTD
Attitude Is Everything.Details Determine Success or Failure.

|
| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | BLM-kcf-1 |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | FobShanghai usd 3.5-5/pc |
| Packaging Details: | packed and labeled according to the regulations and customer's requests.Great care is taken to avoid any damage which might otherwise be caused during storage or transportation. |
| Delivery Time: | 10-30 days subject to the clients' requirement and quantity |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 3000 pc/pcs per Month |
| Name: | KCF Guide Pin | Place Of Origin: | Jiangsu, China (Mainland) |
|---|---|---|---|
| Type: | Kcf Pin | Application: | Resistance Welding |
| Delivery: | 7-10 Days Subject To The Clients' Requirements And Quantity | Price Term: | Ex-Work,FOB,CNF,CFR,CIF,FCA,DDP,DDU |
| Size: | Standard Or Customization | Material: | KCF |
| Field: | Spot Welding | Color: | Black |
| Highlight: | KCF Location Pin,KCF Location Pin Guide Pin,Resistance Spot Welding Accessories |
||

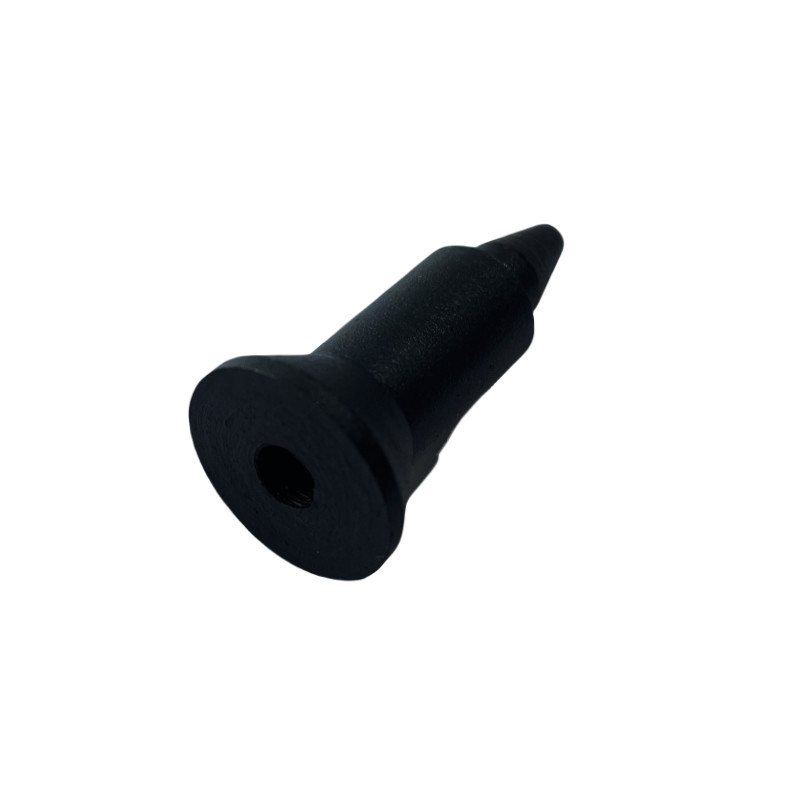

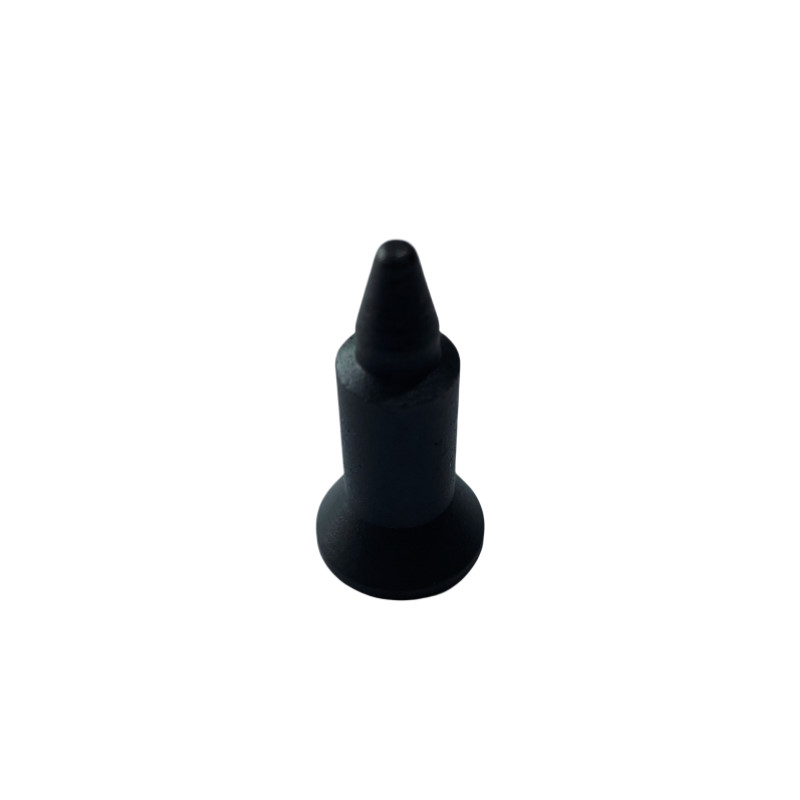

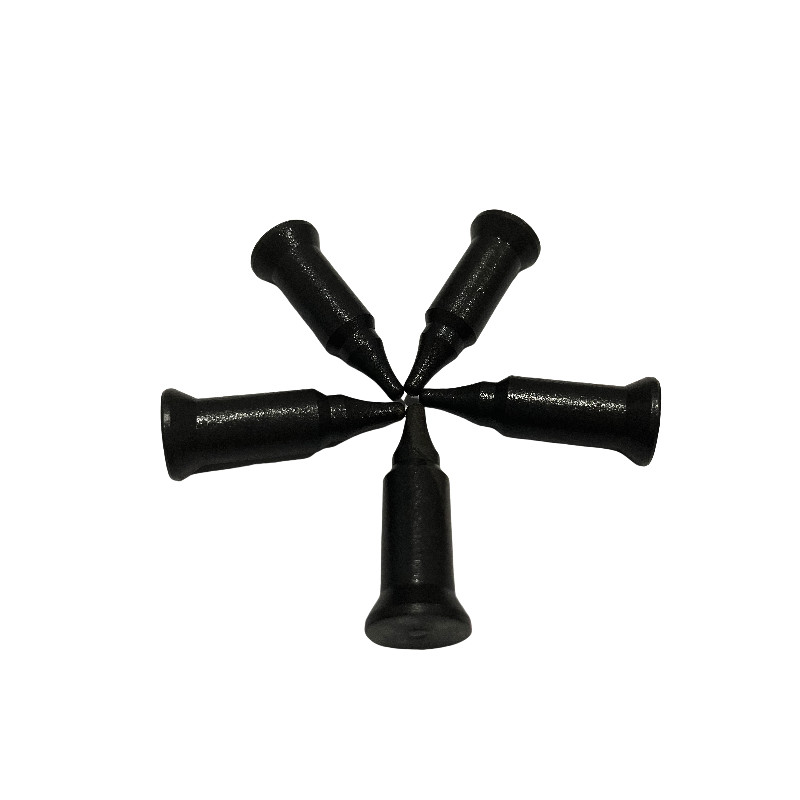

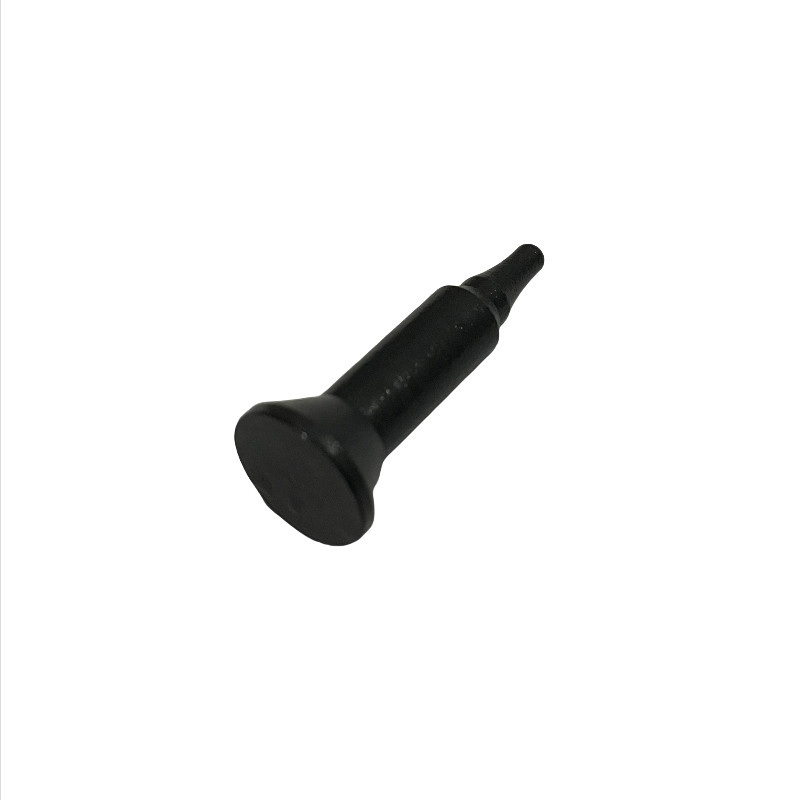

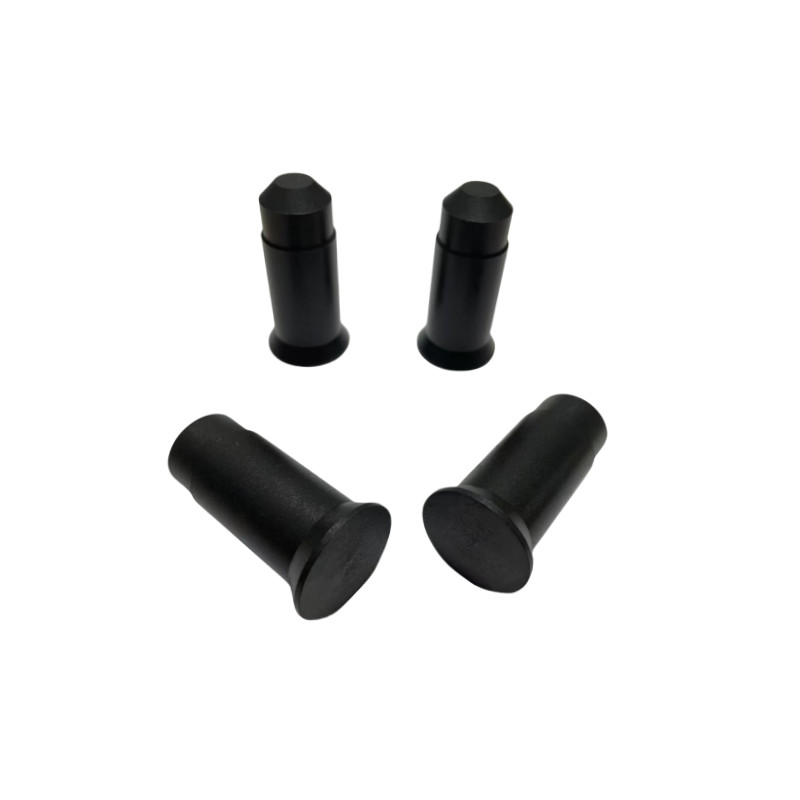

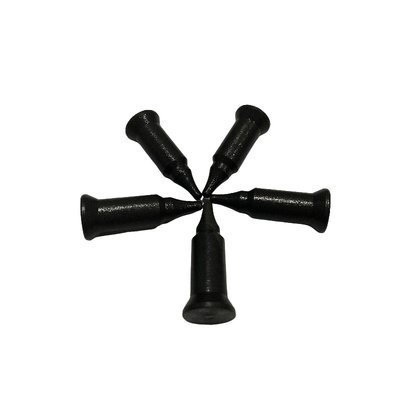

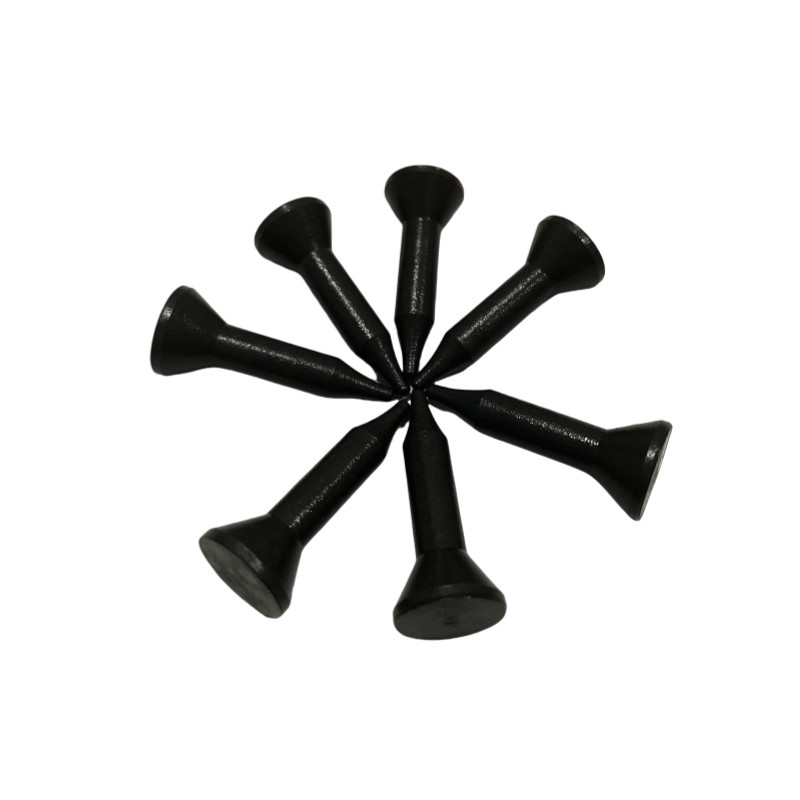

KCF Weld Guide Sleeves with Stud Welding Electrodes KCF Sleeve for Bolt Welding
1 . Descriptions:
Bloom Resistance Welding manufacture and supply various material guide sleeve,locating pin,KCF bushings,KCF sleeve.Our material include KCF alloy material,ceramic coated,Zirconia ceramic,Silicon nitride ceramic etc.To meet different clients' requirements.The standard size M4,M5,M6,M8,M10,M12,7/16 kcf sleeve are always in stock.Specifical specification can be customized according to your drawing.Welcome your enquiry.
KCF Guide Pins /Sleeve is not an insulation coating but a specially processed insulation material which does not peel.
Has been being used in resistance welding applications for several decades. It has an insulated skin on its surface. Any shape can be made quickly. Our standard shapes are cheaper in the business.
KCF Weld Guide Sleeves are commonly used in stud welding applications where a stud welding electrode is used to join a metal stud to a workpiece. The KCF sleeve is designed to provide insulation and protection to the stud welding electrode during the welding process.
When using a KCF Weld Guide Sleeve with stud welding electrodes, the sleeve is placed over the electrode prior to welding. The electrode is then inserted through the sleeve and positioned onto the workpiece. The sleeve helps to prevent the electrode from sticking to the workpiece, which can cause damage to the electrode and reduce the quality of the weld.
In addition to stud welding, KCF sleeves can also be used for bolt welding applications. In bolt welding, a threaded stud is welded to a workpiece to create a secure threaded connection. The KCF Sleeve for Bolt Welding is designed to fit over the threaded stud and provide insulation and protection to the stud during the welding process.
2 . KCF Guide Pin Technical Specification
Pin Material: KCF,AL2O3,ZrO2,Si3N4,Ceramic,Stainless Steel etc.
KCF Pins Diameter:M4,M5,M6,M8,M10,M12…
Application: KCF guide pins are widely used on projection welding,nut welding,stud welding
3 . Advantages:
▲high temperature strength
▲ superior thermal shock resistance
▲ excellent wear resistance
▲ mechanical fatigue and creep resistance
▲ Excellent non-wetting property with good oxidation resistance
▲ It is convenient to process the rod shape, and the period will be shorter
4 . KCF standard pin
|
|
A |
B |
C |
D |
E |
F |
G |
L |
Q |
R |
|
KCF-M4-(B) |
3.2 |
4～7 |
10 |
5 |
2 |
22 |
4 |
31 |
2.5 |
9 |
|
KCF-M5-(B) |
4.1 |
5～8 |
10 |
6 |
2.5 |
22 |
4 |
32 |
3 |
13.3 |
|
KCF-M6-(B) |
4.9 |
6～9 |
10 |
7 |
2.5 |
22 |
3 |
32 |
3.5 |
15.5 |
|
KCF-M8-(B) |
6.8 |
8～11 |
12 |
8 |
3 |
23 |
3 |
34 |
5 |
17.5 |
|
KCF-M10-(B) |
8.5 |
10～13 |
15 |
10 |
3.5 |
24 |
3 |
37 |
7 |
30.5 |
|
KCF-M7/16-(B) |
9.7 |
11～14 |
16 |
12 |
4 |
24 |
3 |
39 |
8 |
37.5 |
|
KCF-12-(B) |
10.4 |
12～15 |
16 |
12 |
4 |
24 |
3 |
39 |
9 |
41 |
5 . Company profile
Bloom(suzhou) Materials Co., Ltd is a foreign trade company with own R&D team. Its main business is selling various of stainless steel, Precipitation hardening steel, duplex steel, heat resistance steel, corrossion resistant alloys, autenitic steels and so on. The most advanced business is KCF insulation metal and its products. With the best quality and shortest delivery time, we are willing to offer best service to you.
Contact Person: Kara Liu
Tel: 0086-13914912658
