Place of Origin: | Jiangsu, China (Mainland) |
Brand Name: | BLM-kcf-1 |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | FobShanghai usd 3.5-5/pc |
Packaging Details: | packed and labeled according to the regulations and customer's requests.Great care is taken to avoid any damage which might otherwise be caused during storage or transportation. |
Delivery Time: | 25-30 days subject to the clients' requirement and quantity |
Payment Terms: | Western Union, L/C, T/T |
Supply Ability: | 3000 pc/pcs per Month |
Name: | KFC TUBE/KCF SLEEVE | Place Of Origin: | Jiangsu, China (Mainland) |
---|---|---|---|
Type: | Kcf Pin | Application: | Resistance Welding |
Delivery: | 7-10 Days Subject To The Clients' Requirements And Quantity | Price Term: | Ex-Work,FOB,CNF,CFR,CIF,FCA,DDP,DDU |
Size: | Standard Or Customization | ||
Highlight: | Bolt Welding Projection Guide Pins,KCF Guide Pins Pipe,Tube Sleeve Guide Pins |

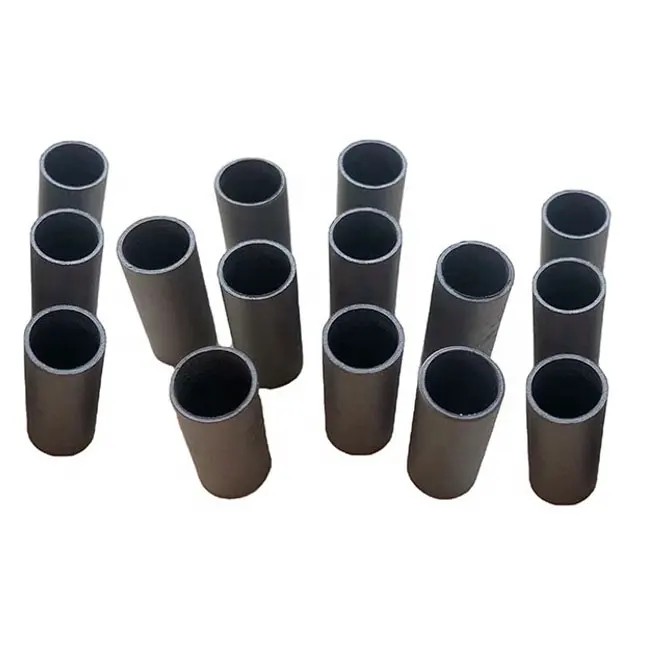

KCF Sleeves for Bolt Welding Good Quality Projection Weld KCF Guide Pins Pipe / Tube / Sleeve
1 . Descriptions:
Bloom Resistance Welding manufacture and supply various material guide sleeve,locating pin,KCF bushings,KCF sleeve.Our material include KCF alloy material,ceramic coated,Zirconia ceramic,Silicon nitride ceramic etc.To meet different clients' requirements.The standard size M4,M5,M6,M8,M10,M12,7/16 kcf sleeve are always in stock.Specifical specification can be customized according to your drawing.Welcome your enquiry.
KCF Guide Pins /Sleeve is not an insulation coating but a specially processed insulation material which does not peel.
Has been being used in resistance welding applications for several decades. It has an insulated skin on its surface. Any shape can be made quickly. Our standard shapes are cheaper in the business.
The KCF sleeve is available in different sizes and shapes to fit a variety of welding electrodes and workpieces. It is a popular choice for spot welding applications in industries such as automotive, aerospace, and electronics.
2 . KCF Guide Pin Technical Specification
Pin Material: KCF,AL2O3,ZrO2,Si3N4,Ceramic,Stainless Steel etc.
KCF Pins Diameter:M4,M5,M6,M8,M10,M12…
Application: KCF guide pins are widely used on projection welding,nut welding,stud welding
3 . Advantages:
▲high temperature strength
▲ superior thermal shock resistance
▲ excellent wear resistance
▲ mechanical fatigue and creep resistance
▲ Excellent non-wetting property with good oxidation resistance
▲ It is convenient to process the rod shape, and the period will be shorter
4 . KCF standard pin
|
A |
B |
C |
D |
E |
F |
G |
L |
Q |
R |
KCF-M4-(B) |
3.2 |
4~7 |
10 |
5 |
2 |
22 |
4 |
31 |
2.5 |
9 |
KCF-M5-(B) |
4.1 |
5~8 |
10 |
6 |
2.5 |
22 |
4 |
32 |
3 |
13.3 |
KCF-M6-(B) |
4.9 |
6~9 |
10 |
7 |
2.5 |
22 |
3 |
32 |
3.5 |
15.5 |
KCF-M8-(B) |
6.8 |
8~11 |
12 |
8 |
3 |
23 |
3 |
34 |
5 |
17.5 |
KCF-M10-(B) |
8.5 |
10~13 |
15 |
10 |
3.5 |
24 |
3 |
37 |
7 |
30.5 |
KCF-M7/16-(B) |
9.7 |
11~14 |
16 |
12 |
4 |
24 |
3 |
39 |
8 |
37.5 |
KCF-12-(B) |
10.4 |
12~15 |
16 |
12 |
4 |
24 |
3 |
39 |
9 |
41 |

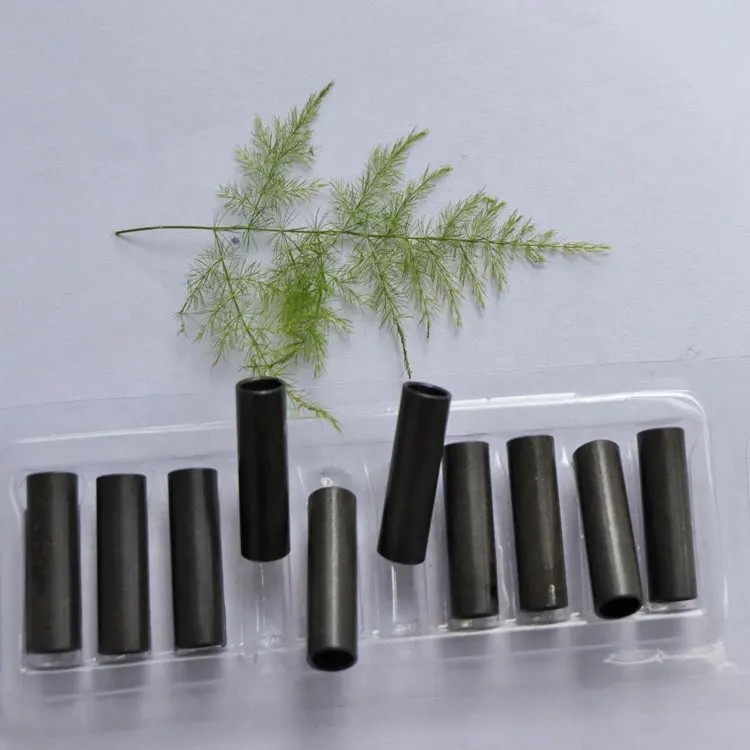

5 . More pictures
