One Side Penumatic Tip Dresser Using Compressed Air For Grinding Electrode Tips

Quality One Side Penumatic Tip Dresser Using Compressed Air For Grinding Electrode Tips factory
Quality One Side Penumatic Tip Dresser Using Compressed Air For Grinding Electrode Tips factory
Quality One Side Penumatic Tip Dresser Using Compressed Air For Grinding Electrode Tips factory
Quality One Side Penumatic Tip Dresser Using Compressed Air For Grinding Electrode Tips factory
Quality One Side Penumatic Tip Dresser Using Compressed Air For Grinding Electrode Tips factory
Quality One Side Penumatic Tip Dresser Using Compressed Air For Grinding Electrode Tips factory

Basic Properties

Place of Origin:China
Brand Name:BLM
Model Number:CDY-1

Trading Properties

Minimum Order Quantity:1 set
Price:USD280.-/set
Standard Packaging:packed with wooden case
Delivery Time:7~10 working days
Payment Terms:T/T, D/A
Supply Ability:100 sets per week
Specifications
Features: Protable Type Name: Tip Dresser
Application: Grinding Field: Spot Welding
Material: Alloy Used For: Electrode Cap
Customized: Yes Model: CDY-1
Accessory: Cutter And Holder Power: Compressed Air
Highlight

One Side Penumatic Tip Dresser

,

Grinding Electrode Tips Penumatic Tip Dresser

,

Compressed Air Penumatic Tip Dresser
Product Description

Penumatic Tip Dresser Using Compressed Air for Grinding Electrode Cap



Tip dresser includes tip dresser tool,cutter blade,cutter holder. All kinds of standard tip dresser cutter blade can be offered by our company. Customized tip dresser cutter according to your drawing can also be satisfied.It is powered by compressed air.Its rotating speed can be around 1300RPM.Tip dresser helps maintain weld consistency and quality in spot welding. Repeated exposure to high temperature will make copper electrode tip geometry after a period of welding. Tip dresser can reset the electrode shape to help welding performance meets the precise specifications as requirements.



Main Specifications



Model CDY-1
Power Compressed air
The Biggest diameter of electrodes(mm) Dia18mm
Turnover(rpm) 1300
Diameter(mm) 7.6-10.0mm
Install model PT-1/4
Weight(kg) 1.8kgs

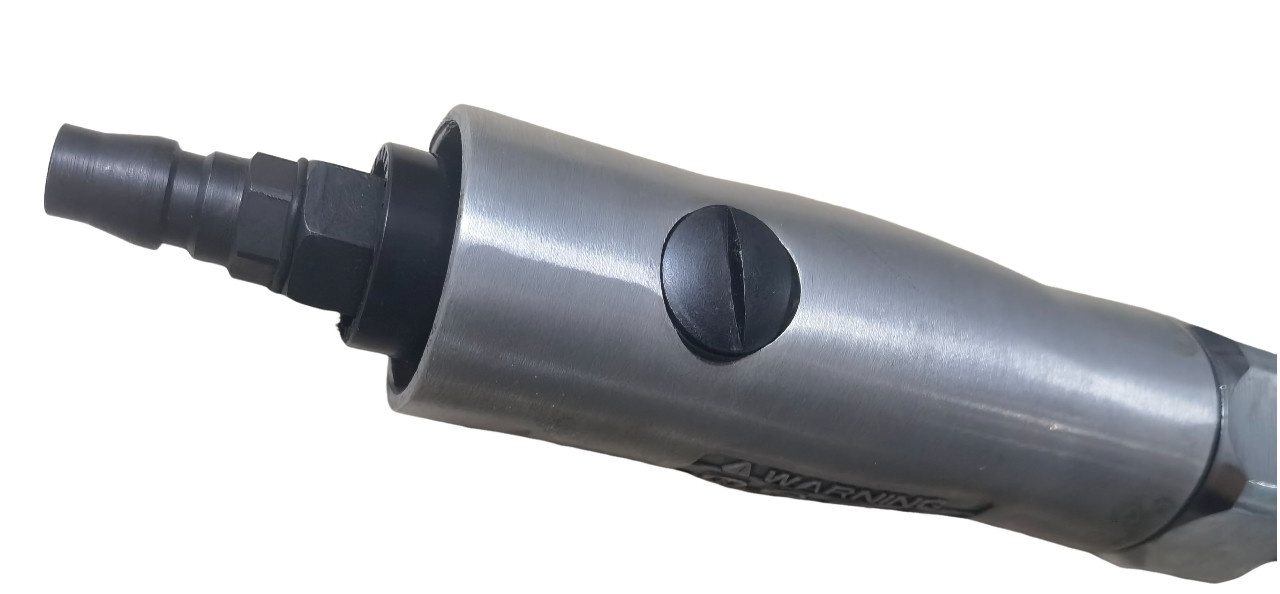

One Side Penumatic Tip Dresser Using Compressed Air For Grinding Electrode Tips 0

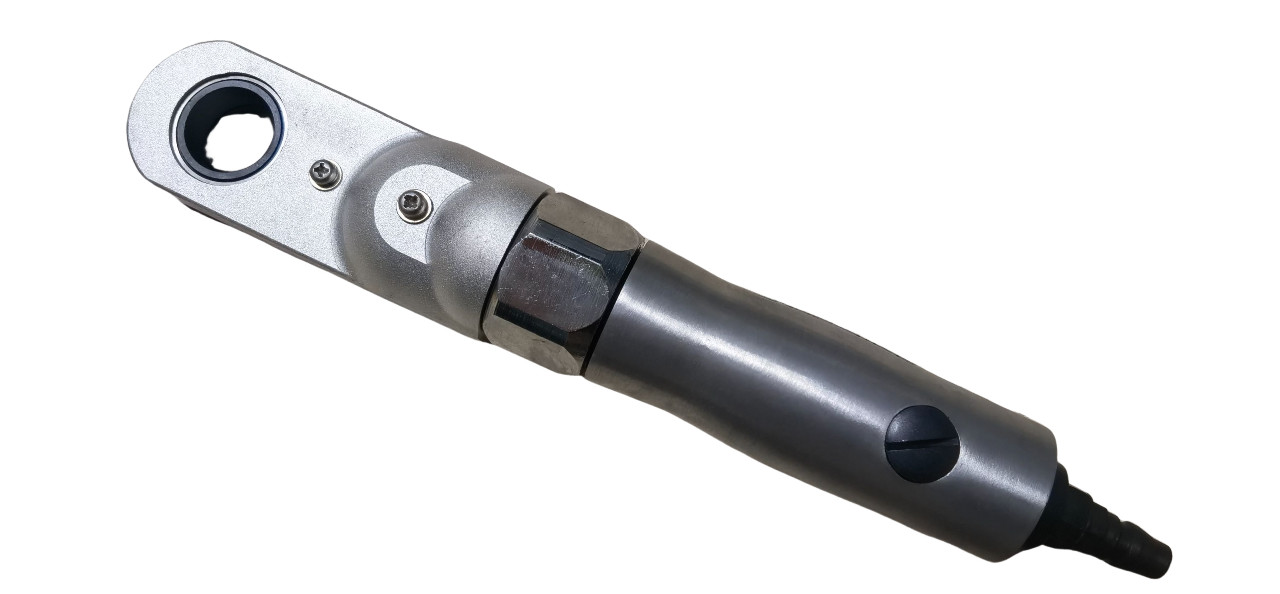

One Side Penumatic Tip Dresser Using Compressed Air For Grinding Electrode Tips 1

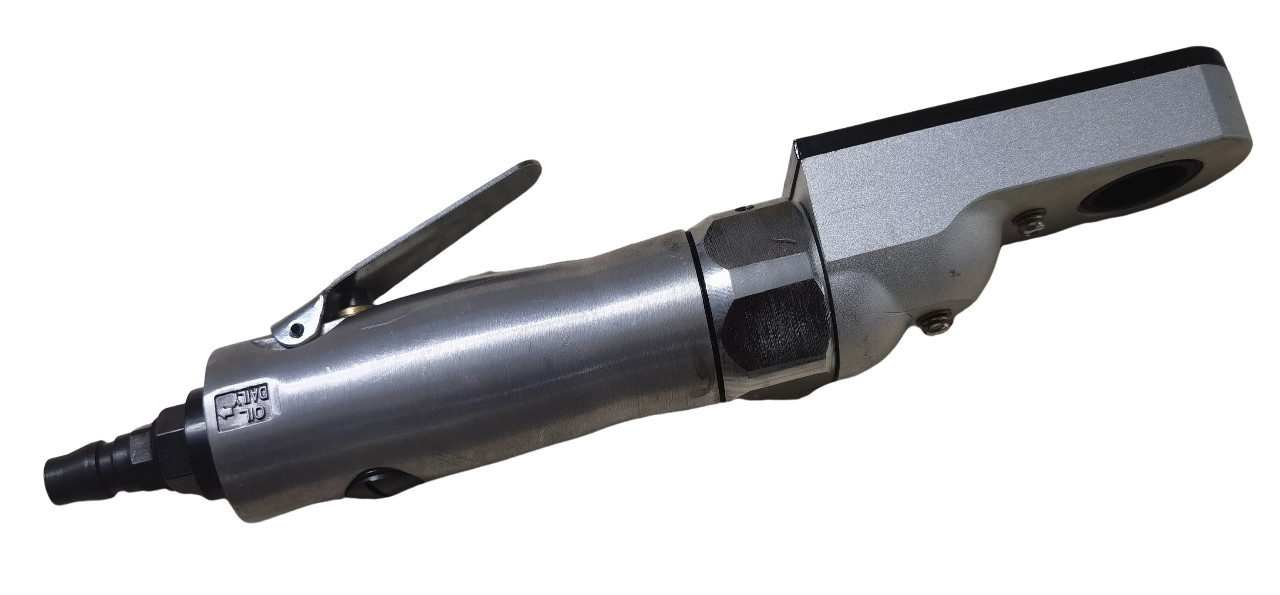

One Side Penumatic Tip Dresser Using Compressed Air For Grinding Electrode Tips 2

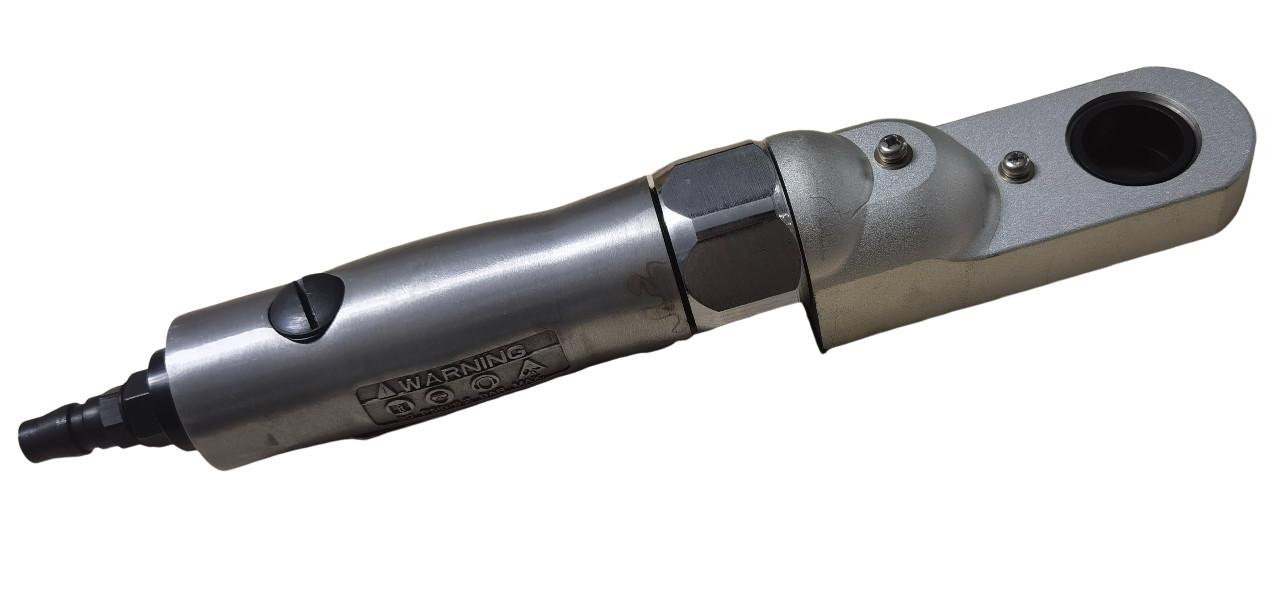

One Side Penumatic Tip Dresser Using Compressed Air For Grinding Electrode Tips 3

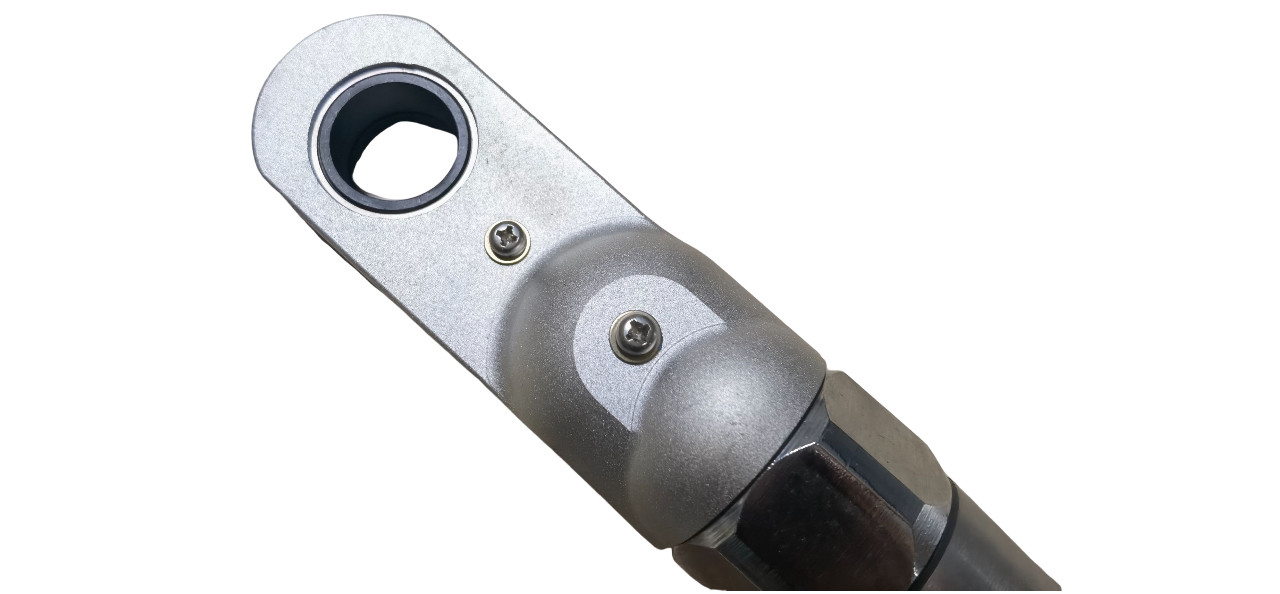

One Side Penumatic Tip Dresser Using Compressed Air For Grinding Electrode Tips 4

One Side Penumatic Tip Dresser Using Compressed Air For Grinding Electrode Tips 5

One Side Penumatic Tip Dresser Using Compressed Air For Grinding Electrode Tips 6
