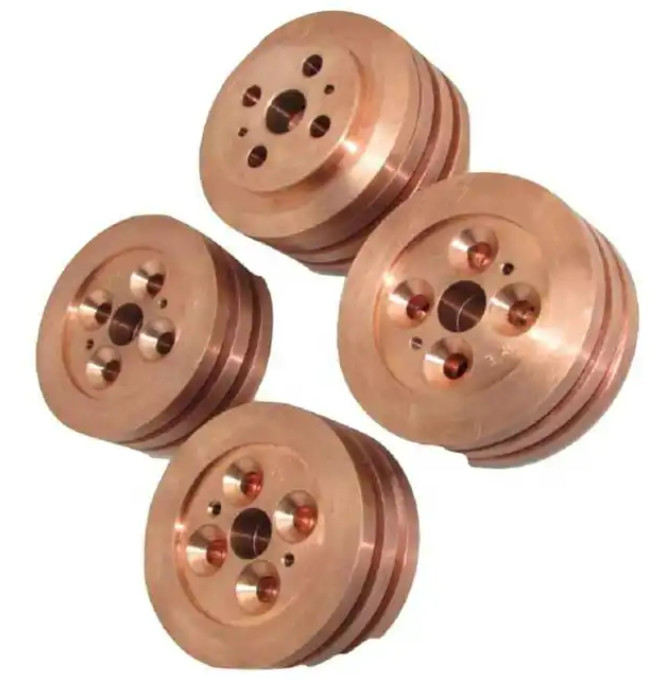

Welding Copper Disc Welding Wheel Disc Shape Seam Welder Parts

Welding Copper Disc Welding Wheel Disc Shape Seam Welder Parts

Welding Copper Disc Welding Wheel Disc Shape Seam Welder Parts
Welding Copper Disc Welding Wheel Disc Shape Seam Welder Parts
Welding Copper Disc Welding Wheel Disc Shape Seam Welder Parts
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: BLM-VP-1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: packed and labeled according to the regulations and customer's requests.Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.
Delivery Time: 25-30 days subject to the clients' requirement and quantity
Payment Terms: Western Union, L/C, T/T
Supply Ability: 300 Ton/Tons per Month
Contact Now
Detailed Product Description
Name: Electrode Wheel/copper Disc Place Of Origin: Jiangsu, China (Mainland)
Type: Flange Delivery: 25-30 Days Subject To The Clients' Requirements And Quantity
Price Term: Ex-Work,FOB,CNF,CFR,CIF,FCA,DDP,DDU Surface Treatment: Polishing, Heat Treatment,Polishing,Heat Treatment
Drawing Format: PDF/JPEG/AI/PSD Standard Or Nonstandard: Nonstandard
Size: Customized
High Light:

Welding Wheel Disc Welding Copper Disc

,

Seam Welder Parts Welding Copper Disc

,

Seam Welder Parts Welding Wheel Disc

Seam Welding Wheel Copper Alloy Resistance Electrode Wheels Seam Welder Accessory Parts Disc Shape for Seaming Welding



Welding wheel is electrode wheel of welding seam wheel machine. Seam welding machine is similar to spot welding machine, but different are that electrode of spot welding machine is rod and welding is instantaneous discharge. Electrode of seam wheel machine is two rounds of electrode and electrode discharge is continuous or interval discharge.





Product Name Electrode Wheel
Material CuCrZr / BeCu
Color Coppery
Design Customers' requirement





An electrode wheel made of copper alloy is a component used in seam welding machines. Seam welding is a type of resistance welding process commonly used for joining sheet metal components.

The electrode wheel is designed to apply pressure and conduct electrical current to create a weld between two metal surfaces. It typically consists of a copper alloy disc that rotates and applies pressure onto the workpiece. The copper alloy is chosen for its excellent electrical conductivity, high thermal conductivity, and good wear resistance.

The round electrode disc is the part of the electrode wheel that comes into direct contact with the workpiece. It is usually smooth and flat to ensure even pressure distribution and optimal electrical contact during the welding process. The round shape helps in achieving a consistent and continuous weld along the seam.

The copper alloy electrode wheel and round electrode disc are essential components in seam welding machines, as they provide the necessary electrical conductivity and mechanical pressure required to create strong and durable welds in sheet metal applications.

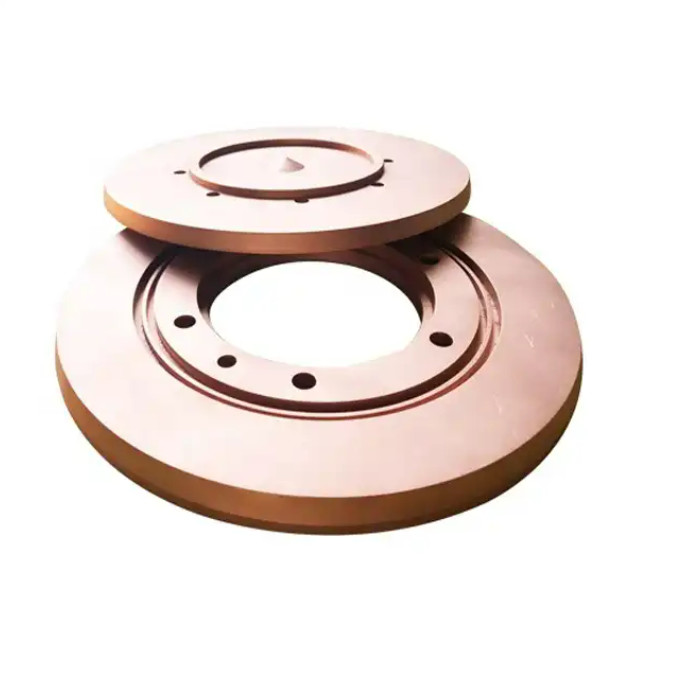

Welding Copper Disc Welding Wheel Disc Shape Seam Welder Parts 0

To use a welding wheel, specifically an electrode wheel, in seam welding, follow these general steps:

Setup and Preparation: Ensure that you have a seam welding machine with a properly installed and functioning electrode wheel. Make sure the machine is powered off and disconnected from the power source before proceeding.

Material Preparation: Prepare the metal sheets or components that require welding. Clean the surfaces to be joined to remove any dirt, oil, or contaminants that could interfere with the welding process.

Adjustments: Depending on the specific machine and application, you may need to make adjustments to the welding parameters such as current, speed, and pressure. Refer to the machine's manual or consult an expert for guidance on the appropriate settings for your specific welding task.

Alignment: Position the metal sheets or components to be welded, ensuring that the seam is properly aligned. The electrode wheel should be positioned to apply pressure directly on the seam.

Power On: Turn on the seam welding machine and ensure that all ety measures are in place. Follow the manufacturer's instructions for powering on and operating the machine.

Welding Operation: As the machine operates, the rotating electrode wheel should make contact with the seam while applying pressure. The electrical current passes through the wheel and generates heat at the interface between the metal surfaces. The heat, combined with the pressure applied by the wheel, melts and fuses the metal, creating a continuous weld along the seam.

Monitoring and Adjustment: Throughout the welding process, monitor the quality of the weld and make any necessary adjustments to the welding parameters if needed. This may include modifying the current, speed, or pressure to achieve the desired weld characteristics.

Completion and Inspection: Once the welding operation is complete, allow the weld to cool down. Inspect the weld for any defects, such as incomplete fusion or excessive porosity. Perform any necessary post-welding treatments or inspections based on the specific requirements of your application.

Maintenance: After using the welding wheel, clean and maintain it according to the manufacturer's instructions. Regularly inspect the wheel for wear or damage and replace it as needed to ensure optimal performance.

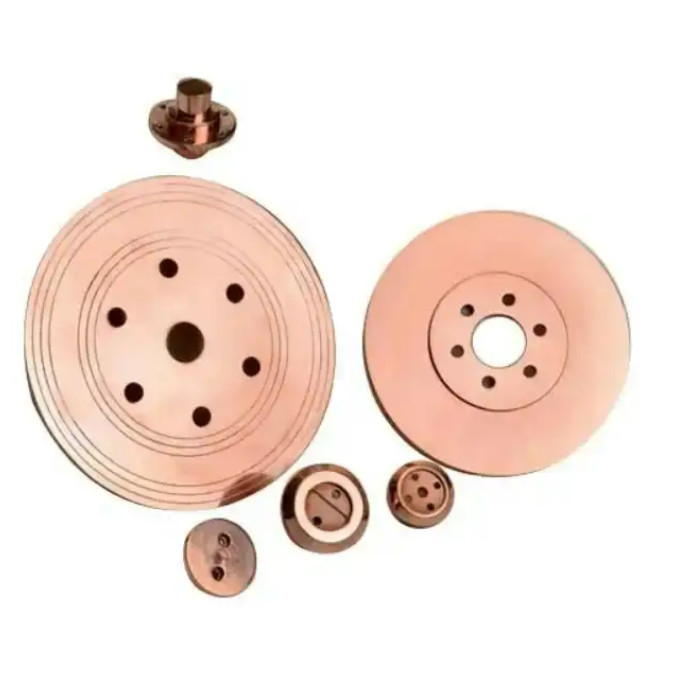

Welding Copper Disc Welding Wheel Disc Shape Seam Welder Parts 1

The electrode wheel made of copper alloy is primarily used in seam welding machines for joining sheet metal components. Seam welding is a process commonly used in industries such as automotive, aerospace, and manufacturing, where a continuous and leak-proof weld is required along the length of a seam.

The electrode wheel, along with its round electrode disc, serves several important functions in the seam welding process:

Electrical Conductivity: Copper is an excellent conductor of electricity, making it an ideal material for the electrode wheel. When electrical current passes through the wheel, it transfers the energy to the workpiece, generating heat at the interface and facilitating the welding process.

Pressure Application: The rotating electrode wheel applies pressure to the workpiece, ensuring proper contact and promoting effective heat transfer. The pressure helps to create a tight joint between the metal surfaces, resulting in a strong and durable weld.

Heat Dissipation: Copper has high thermal conductivity, meaning it can efficiently dissipate heat generated during the welding process. This helps prevent overheating and distortion of the workpiece, ensuring consistent and controlled welds.

Wear Resistance: Copper alloys used in electrode wheels are often chosen for their good wear resistance properties. The rotating motion of the wheel and the friction between the electrode disc and the workpiece can cause wear over time. Copper alloys are selected to withstand these conditions and provide a longer service life for the electrode wheel.

Overall, the electrode wheel made of copper alloy plays a crucial role in seam welding by providing electrical conductivity, applying pressure, dissipating heat, and ensuring wear resistance. These properties contribute to the successful and efficient creation of continuous, high-quality welds in sheet metal applications.

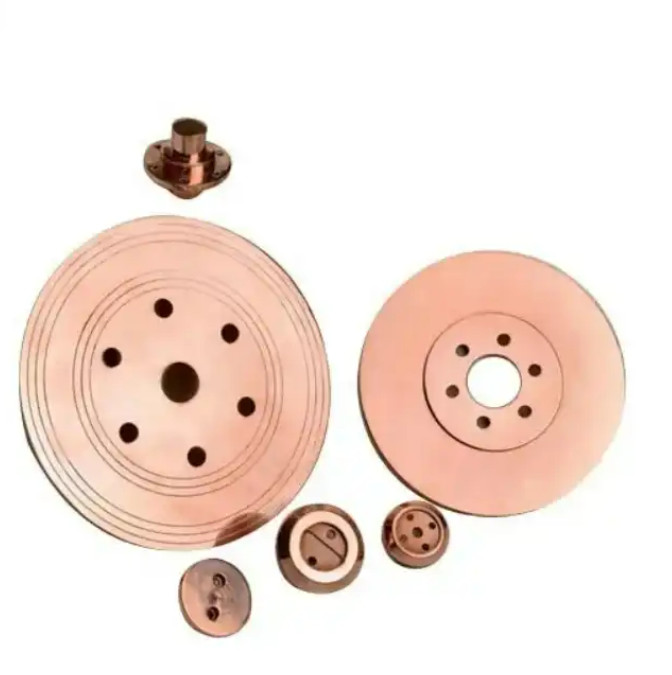

Welding Copper Disc Welding Wheel Disc Shape Seam Welder Parts 2Welding Copper Disc Welding Wheel Disc Shape Seam Welder Parts 3

Welding Copper Disc Welding Wheel Disc Shape Seam Welder Parts 4
