Spot Welding Dowel Locating KCF Guide Pin Silicon Nitride Ceramic Zirconia Pin

         Spot Welding of Guide Dowel Locating Positioning Centering Locator Silicon Nitride Ceramic Zirconia Pin

1 . Descriptions:

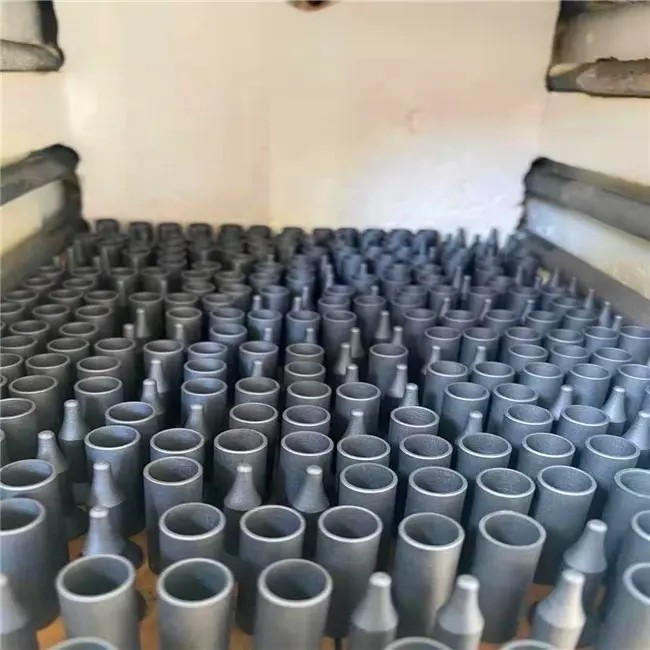

KCF material is a special metal material.Through special heat treatment process and process temperature range of 1000-1500 degree adjustment,the surface can generate a layer of 10-32μm thick high-quality insulation layer,the insulation layer and the alloy matrix has a good ability to combine.So that the material takes into account the good wear resistance and high insulation resistance.The material in the mechanical processing after formation of a variety of parts,after cleaning and heat treatment with insulation,wear and anti-oxidation of the three functions of the product.This material is mainly used in resistance welding equipment.

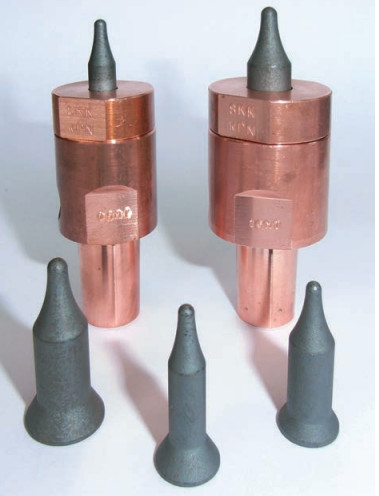

We generally use ceramic guide pins as a welding nut positioning pin, but because of the toughness of ceramics is poor, fragile, so now KCF guide pin instead of ceramic is more and more popular.

2 . KCF Guide Pin Technical Specification

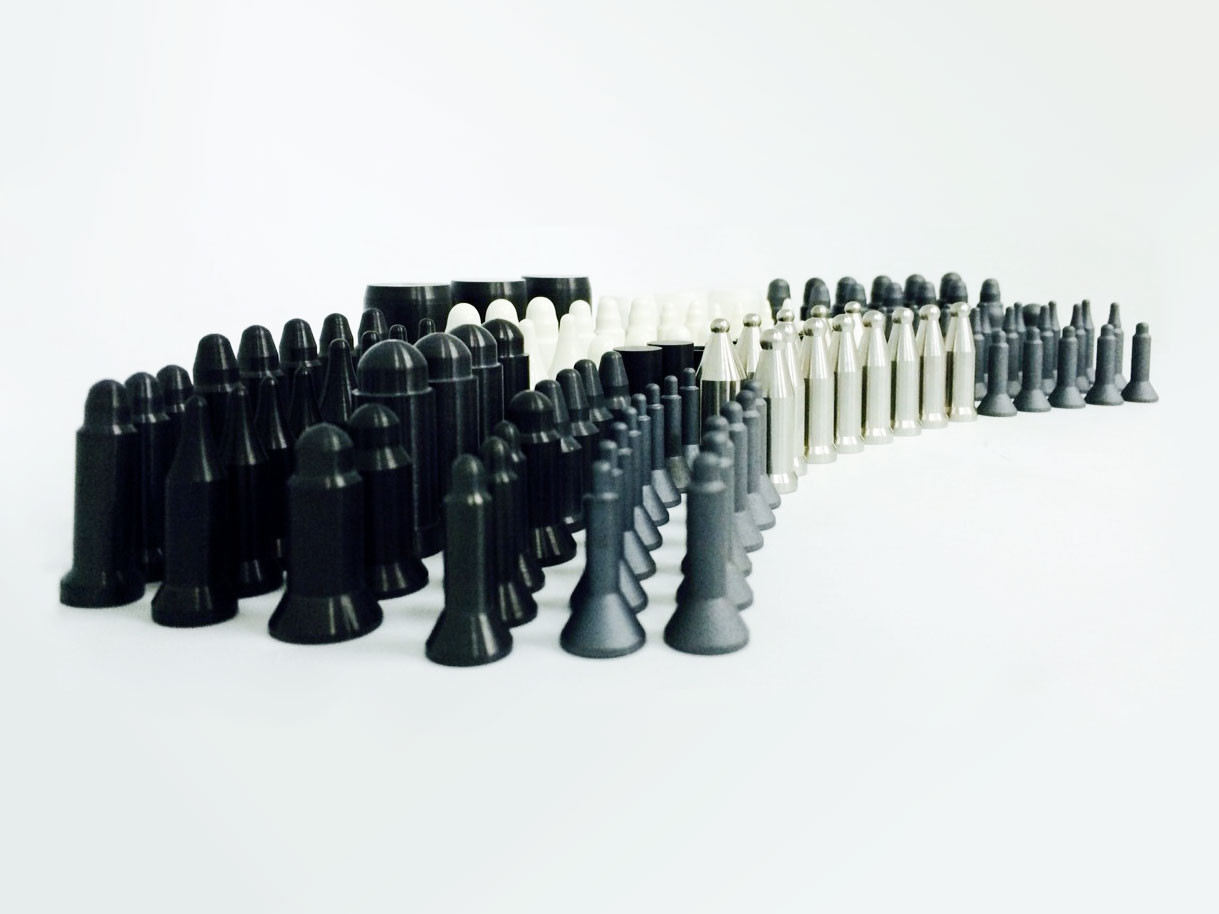

Pin Material: KCF,AL2O3,ZrO2,Si3N4,Ceramic,Stainless Steel etc.

KCF Pins Diameter:M4,M5,M6,M8,M10,M12…

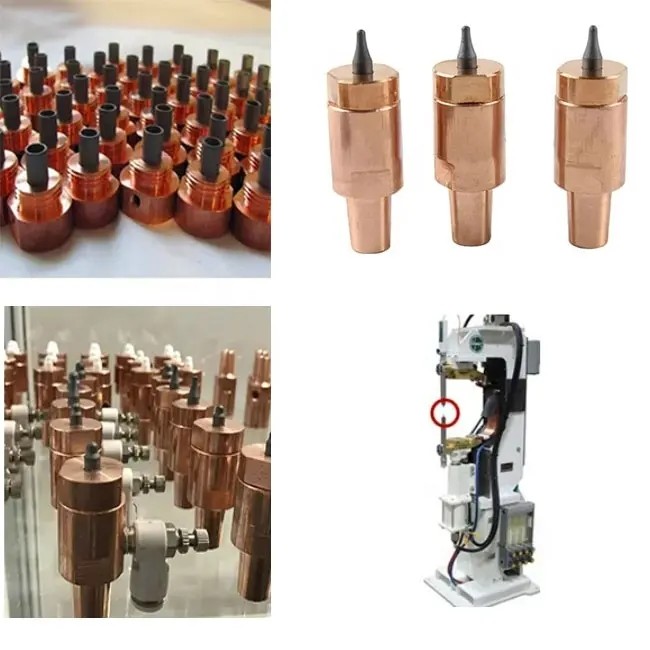

Application: KCF guide pins are widely used on projection welding,nut welding,stud welding

3 . Advantages:

▲high temperature strength
▲superior thermal shock resistance
▲ excellent wear resistance
▲good fracture toughness
▲mechanical fatigue and creep resistance
▲ Excellent non-wetting property with good oxidation resistance

▲ It is convenient to process the rod shape, and the period will be shorter

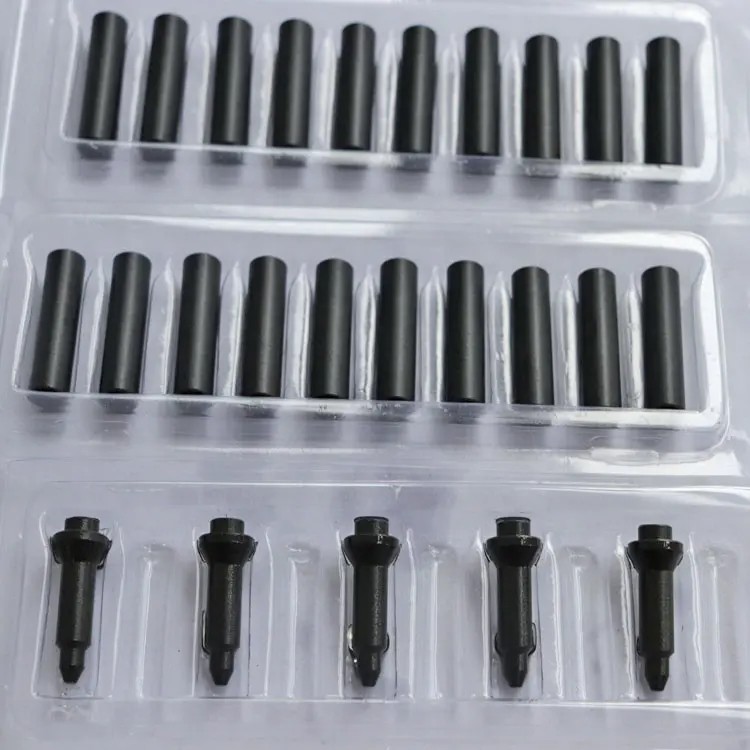

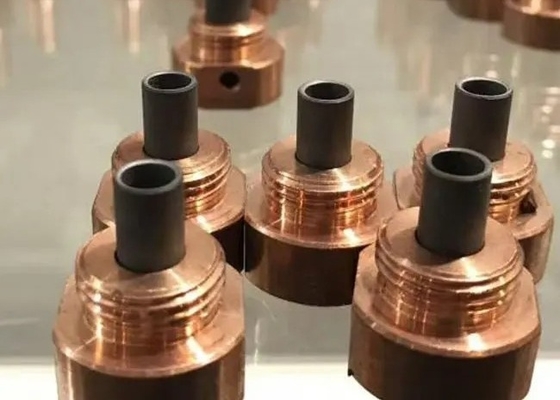

4 . More pictures
