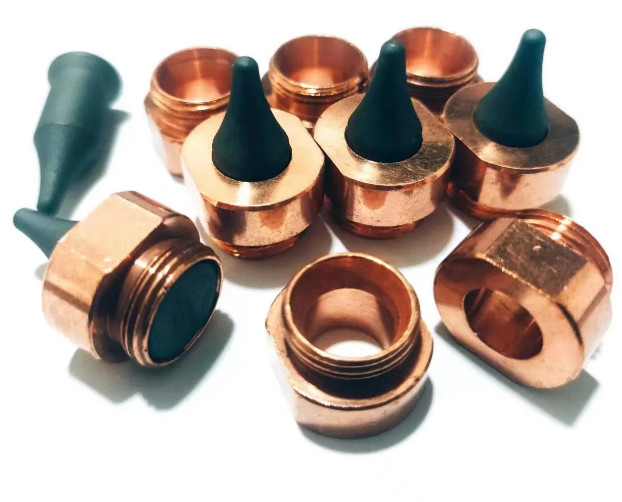

Bloom KCF Guide Pin Electrodes For Spot Nut Welding Oxidation Resistant

Product Details:

Brand Name:	BLM-kcf-1
Model Number:	B-pin

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiation
Packaging Details:	packed and labeled according to the regulations and customer's requests.Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.
Delivery Time:	25-30 days subject to the clients' requirement and quantity
Payment Terms:	Western Union, L/C, T/T
Supply Ability:	3000 pc/pcs per Month

Contact Now

Detailed Product Description

Place Of Origin:	Jiangsu, China (Mainland)	Size:	Standard Or Customization
Type:	Kcf Pin	Application:	Spot Welding
Delivery:	7-10 Days Subject To The Clients' Requirements And Quantity	Price Term:	Ex-Work,FOB,CNF,CFR,CIF,FCA,DDP,DDU
High Light:	Electrodes KCF Guide Pin , Spot Nut Welding KCF Pin , Oxidation Resistant KCF Guide Sleeve

Bloom High Quality Guide Pin Spot Nut Kcf Pin Welding Electrodes Pin for Nut Welding

1 . Descriptions:

KCF (Known Current Flow) guide pins are commonly used in spot welding to ensure consistent and accurate placement of the electrodes during the welding process. These guide pins are typically cylindrical in shape and made of copper alloy material to conduct electricity.

The KCF guide pins are placed in the welding fixture and act as a guide for the welding electrodes to ensure proper alignment and contact with the metal being welded. As the welding current passes through the electrodes and the guide pins, the KCF pins help to maintain a consistent current flow, which is important for producing a high-quality weld.

When selecting KCF guide pins for spot welding, it's important to consider factors such as the size and shape of the pins, the type of metal being welded, and the welding current and voltage. The specific requirements will depend on the application and the welding equipment being used. It's recommended to consult the welding equipment manufacturer or a welding expert for guidance on selecting the appropriate KCF guide pins for a particular application.

2. Properties

Code	Composition(wt%)	Tensile strength(N/mm2)	Yield strength(N/mm2)	Elongation(%)	Features	Application
KCF	Cr20,Al3,Fe Bal	539	392	15	Oxidation resistant	Brazing jigs,Guide pins for projection welding

We offer various sizes of KCF guide pin and KCF sleeves. The standard kcf pins are always in stock.Also supply customized pins according to your drawing.With excellent insulation performance and long-life,our kcf guide pins are directly or indirectly used on GM,VW,TOYOTA etc.automotive welding factory.

KCF Guide Pin Technical Specification

Pin Material: KCF,AL2O3,ZrO2,Si3N4,Ceramic,Stainless Steel etc.

KCF Pins Diameter:M4,M5,M6,M8,M10,M12…

Application: KCF guide pins are widely used on projection welding,nut welding,stud welding

KCF Guide Pins Advantage:

Good insulation performance
Excellent wear resistance ability
High temperature anti-oxidation performance
Good heat shock performance

What is KCF Guide Pins?

KCF material is a special metal material.Through special heat treatment process and process temperature range of 1000-1500 degree adjustment,the surface can generate a layer of 10-32μm thick high-quality insulation layer,the insulation layer and the alloy matrix has a good ability to combine.So that the material takes into account the good wear resistance and high insulation resistance.The material in the mechanical processing after formation of a variety of parts,after cleaning and heat treatment with insulation,wear and anti-oxidation of the three functions of the product.This material is mainly used in resistance welding equipment.

We generally use ceramic guide pins as a welding nut positioning pin, but because of the toughness of ceramics is poor, fragile, so now KCF guide pin instead of ceramic is more and more popular.

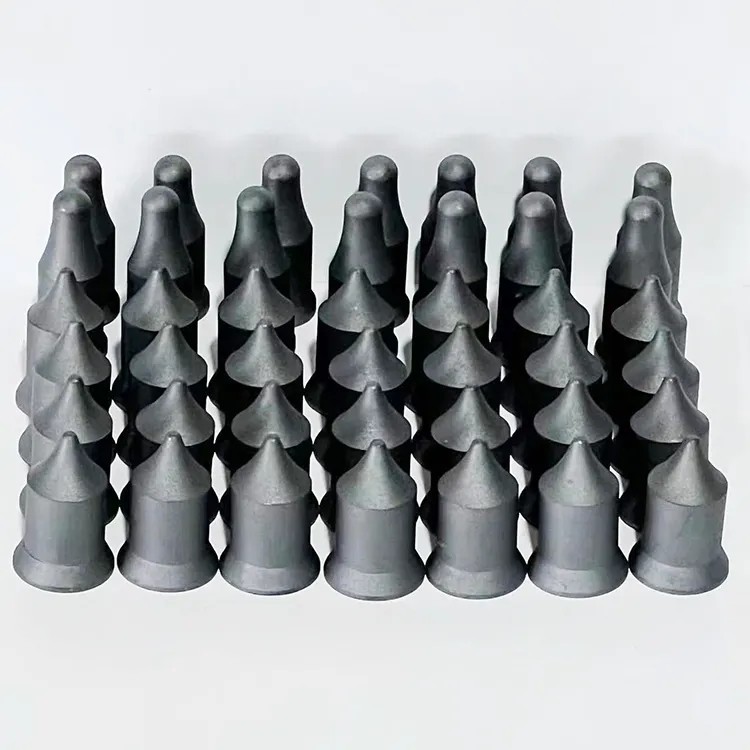

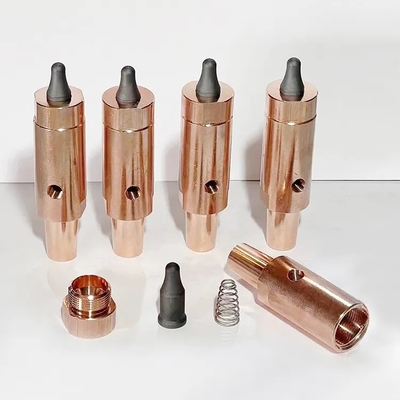

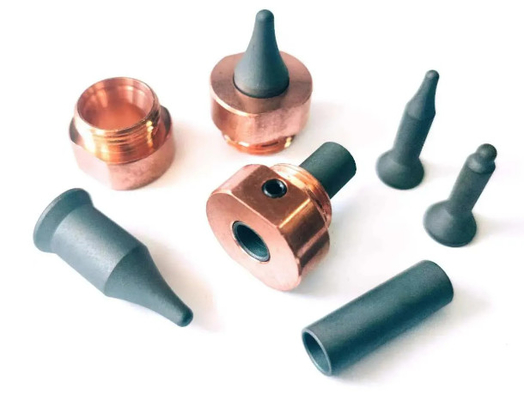

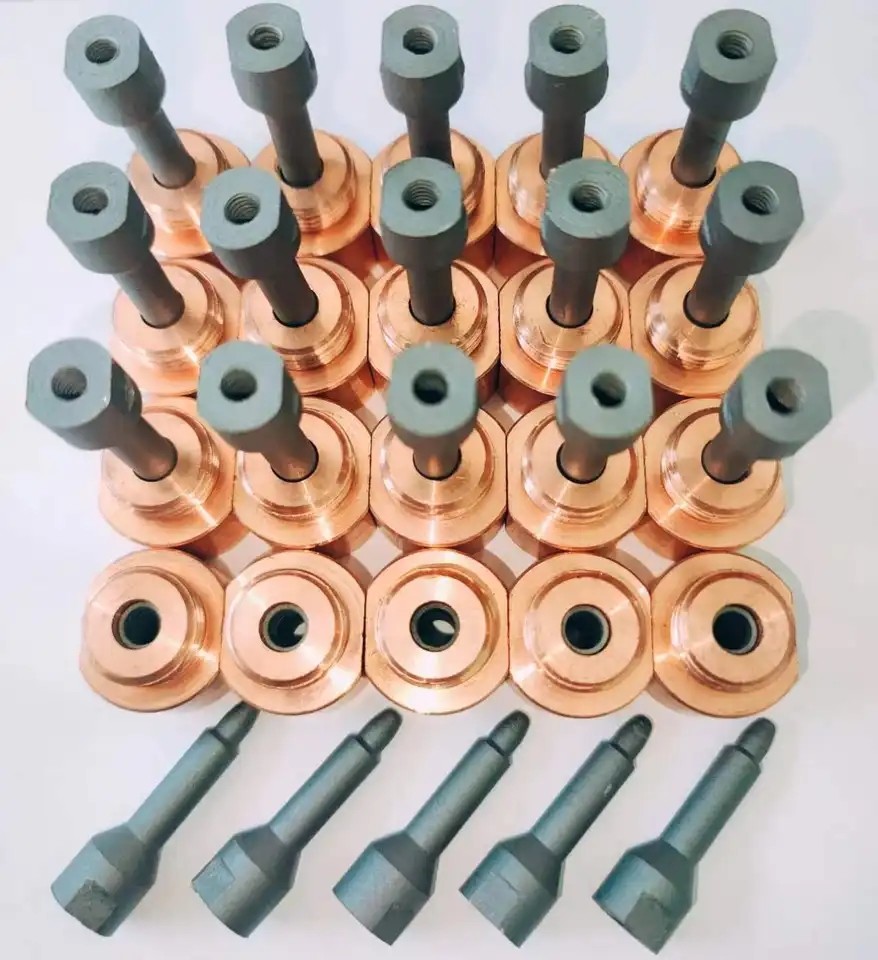

2 . More pictures

Bloom KCF Guide Pin Electrodes For Spot Nut Welding Oxidation Resistant 0

Bloom KCF Guide Pin Electrodes For Spot Nut Welding Oxidation Resistant 1
