Place of Origin: | Jiangsu, China (Mainland) |
Brand Name: | BLM-IV-1 |
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiation |
Packaging Details: | packed and labeled according to the regulations and customer's requests.Great care is taken to avoid any damage which might otherwise be caused during storage or transportation. |
Delivery Time: | 25-30 days subject to the clients' requirement and quantity |
Payment Terms: | Western Union, L/C, T/T |
Supply Ability: | 1000 per Month |
Place Of Origin: | Jiangsu,China | Material: | 316L/X260/W6Mo5Cr4V2 Or Customized |
---|---|---|---|
Spare Parts Type: | Spare Parts For Twin Screw Exruder | Application: | Machinery Repair Shops,Food An Beverage Factory |
Center Distance: | 26mm | Screw Distance: | 30mm |
Dimension(LxWxH): | 120x135x115mm | After Warranty Service: | Video Technical Support,online Support |
High Light: | Plastic Machinery Conical Twin Screw Barrel,High Output Conical Twin Screw Barrel,92 / 188 Conical Twin Screw Barrel |

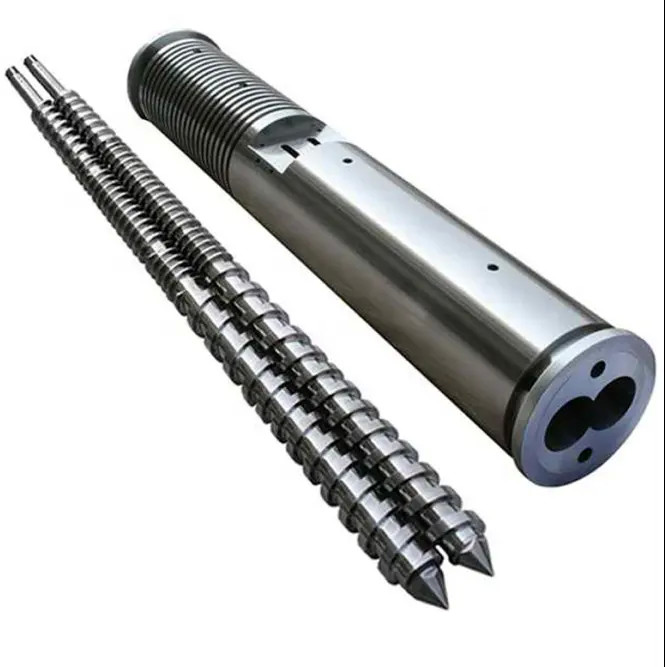

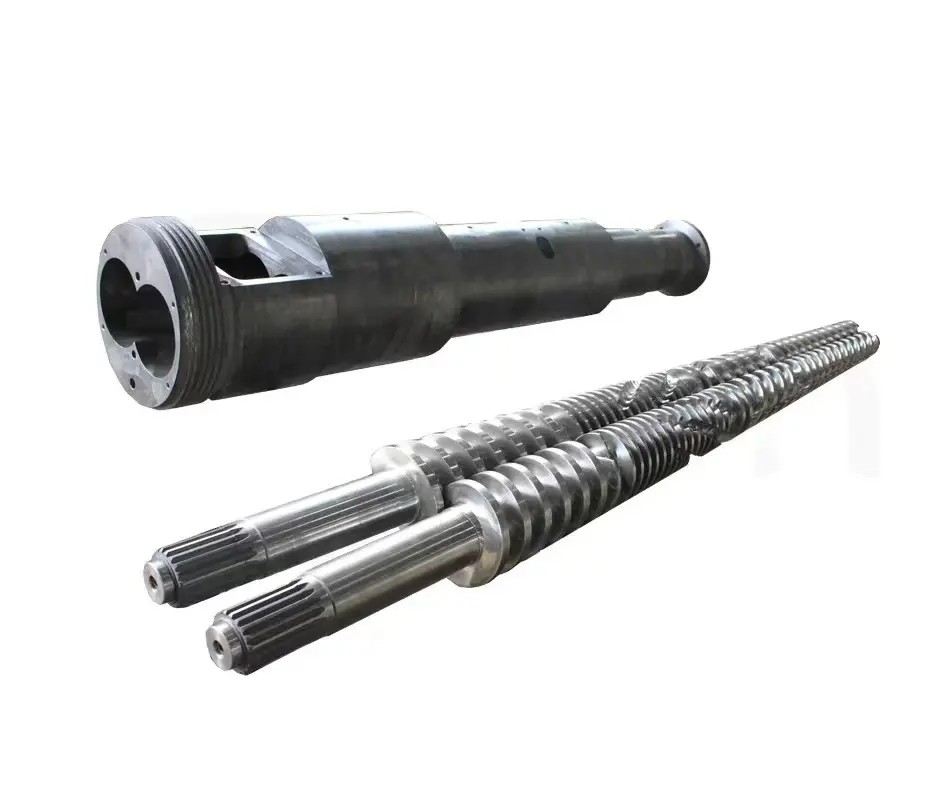

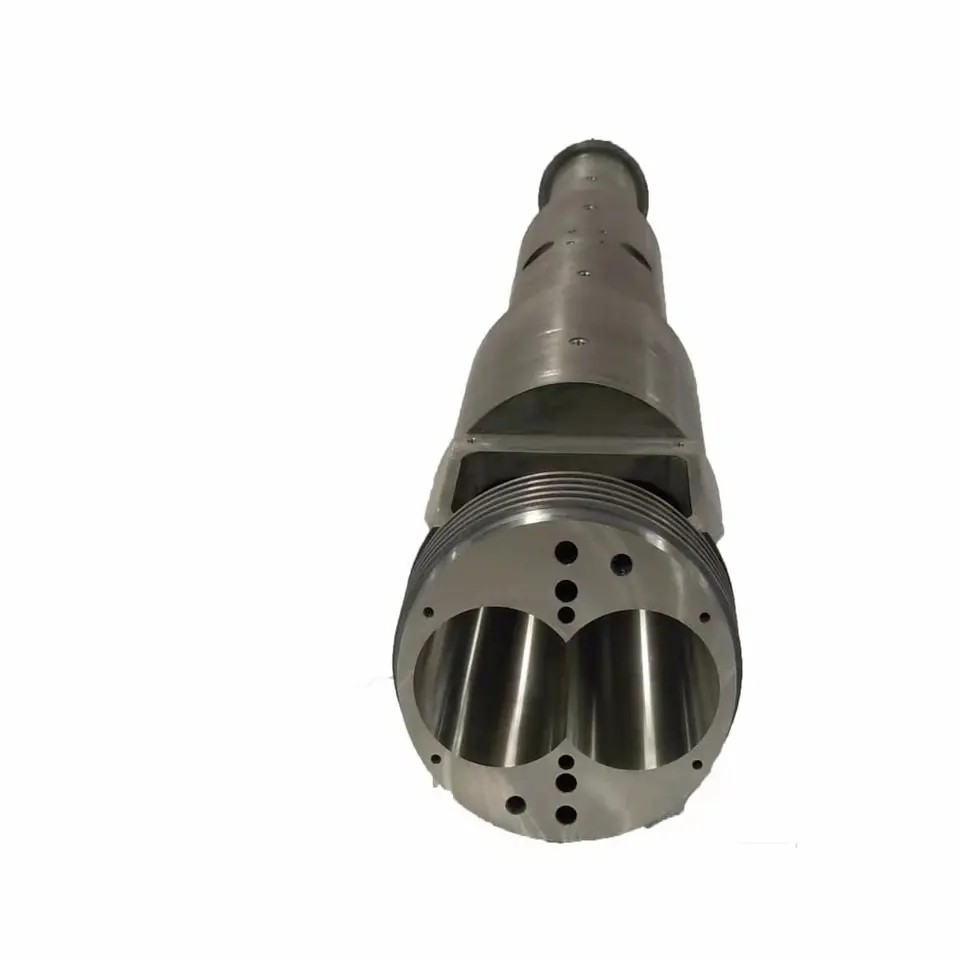

92 / 188 High Output Twin Conical Twin Screw Barrel For Plastic Machinery
Product Description:
65/132, 80/156, and 92/188 are specifications for conical twin-screw extruder barrels. These numbers refer to the diameter and length of the barrel in millimeters.
For example, a 65/132 conical twin-screw barrel has a diameter of 65mm at the feed end and 132mm at the discharge end, with a total length of the barrel typically ranging from 1,200mm to 1,800mm.
Similarly, an 80/156 conical twin-screw barrel has a diameter of 80mm at the feed end and 156mm at the discharge end, with a total length typically ranging from 1,500mm to 2,400mm.
A 92/188 conical twin-screw barrel has a diameter of 92mm at the feed end and 188mm at the discharge end, with a total length typically ranging from 2,000mm to 3,000mm.
Conical twin-screw extruder barrels are designed to provide increased pressure and mixing action during plastic processing, making them ideal for applications such as PVC pipe and profile extrusion, as well as for recycling and compounding processes.
Bloom manufacture screw element suitable for the following extruder products brand:
No. | Brand Name |
1 |
APV |
2 | KOBE |
3 | OMC |
4 | Buhler |
5 | Kraussmaffei |
6 | Theysohn |
7 | Buss |
8 | Berstorff |
9 | Toshiba |
10 | Clextral |
11 | Labtech |
12 | USEON |
13 | Coperion |
14 | Lantai |
15 | JSW |
16 | Leistritz |
17 | Keya |
18 | Maris |
19 | others |
B . according to materials
For wear application:
Tool steel:W6Mo5Cr4V2
PM-HIP material:WR5,WR13,WR14,CPM10V,CPM9V
For corrosion application:
38CrMoAla
PM-HIP material:WR4,WR13,WR14,CPM10V,CPM9V
For wear and corrosion application:
PM-HIP material:WR13,WR14,CPM10V,CPM9V
Other materials:
Stainless Steel:316L,440C etc.
1.Made of high speed steel (W6Mo5Cr4V2 and M2),Vacuum heating treatment and overall hardening, high wear-resistance and toughness.
2.Made nitrider steel (38CrMoAIA). high hardness, super toughness, anti-corrosion and anti-burst.
3.Made of HIP material imported from Europe (super wear-resistance powder metallurgical steel X245 and WR5).With features of high wear-resistance. high torque, anti-corrosion and anti-burst, this type of screw elements is used to produce such engineering plastics as that of more than 50% fiber glass.
4.Made of Hastelloy C-276 (00Cr16Mo16W4),super anti-corrosive nickel alloy. this type of screw elements is used to produce fluoroplastics(F46).
Screw and barrel accessories are important components for conical twin screw extrusion systems used in PVC and WPC profile applications. These accessories help to enhance the performance and efficiency of the extrusion process and ensure the quality of the finished products.
A 92/188 high output twin conical twin-screw barrel is a type of extrusion barrel used in plastic machinery for processing plastic materials. This type of barrel has a diameter of 92mm at the feed end and 188mm at the discharge end, with a total length typically ranging from 2,000mm to 3,000mm.
The "high output" designation refers to the ability of this conical twin-screw barrel to process large volumes of plastic material at a high rate of speed, making it ideal for applications that require high throughput and productivity.
Conical twin-screw barrels are designed to provide increased pressure and mixing action during plastic processing, and the 92/188 configuration is commonly used in applications such as PVC pipe and profile extrusion, as well as for recycling and compounding processes. The larger diameter at the discharge end of the barrel allows for greater output and improved product quality, while the conical shape of the barrel provides increased mixing and homogenization of the plastic material being processed.
Overall, the 92/188 high output twin conical twin-screw barrel is a powerful and efficient component of plastic machinery, capable of processing large volumes of plastic material at high speeds and producing high-quality plastic products.

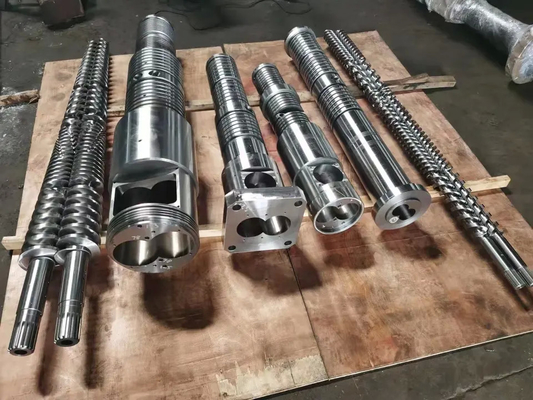

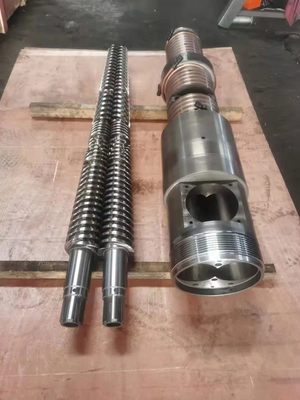

Production Process Show
