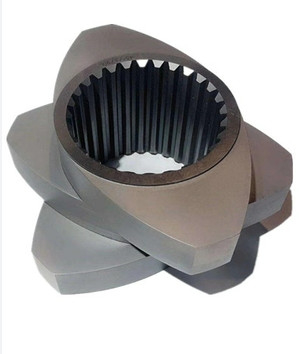

Wenger Twin Screw Extruder Elements For Food Twin Screw Extruder

Wenger Twin Screw Extruder Elements For Food Twin Screw Extruder

Wenger Twin Screw Extruder Elements For Food Twin Screw Extruder
Wenger Twin Screw Extruder Elements For Food Twin Screw Extruder
Wenger Twin Screw Extruder Elements For Food Twin Screw Extruder
Product Details:
Place of Origin: Jiangsu, China
Brand Name: BLM
Certification: ISO 9001
Model Number: standard or customized
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negetation
Packaging Details: Packing in wooden case
Delivery Time: 60 to 75 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: according to the customized products
Contact Now
Detailed Product Description
Main Material: NiCrW Alloy (Ni60 Based On The Addition Of CrC And CrB Product Features: Wear Resistance, Corrosion Resistance, Belongs To The Special Alloy, Hardness In HRC≥57, Alloy Parent Full Melt, Improve The Density, Hardness.
Temperature Resistance: Temperature Limit 600℃ Alloy Layer Thickness: ≧1.8mm
Alloy Layer Hardness: HRC≥57 Advantage: Elliptic Flat Angle Process
Recommendation Reason: New Composite Liner Liner Type: Nickel Chrome Tungsten Composite Liner
Application Extruder Macchine Type: Type 75 And Above 75 Can Made By Composite Liner Application Area: Plastic Manufacturing,food Processing ,construction,pharmaceuticals,chemical Manufacturing,recycling And So On
High Light:

Wenger Twin Screw Extruder Elements

,

Twin Screw Extruder Elements Corrosion Resistance

,

Twin Screw Extruder Elements For Food

Wenger Twin Screw Extruder Elements for Food Twin Screw Extruder



1 . Factory introduction

We are a professional manufacturer of nickel base alloy, Hastelloy alloy, tungsten carbide alloy, cobalt base alloy and H.I.P liner sleeve.



We have provided super wear-resistant high corrosion resistance bushing for many domestic and foreign parallel twin-screw extruder customers and modification enterprises, and can be developed according to customer needs, combined with the actual conditions of high quality non-standard products, Oze product performance is excellent, stable quality, reasonable price, timely delivery, perfect after-sales.



The Wenger Twin Screw Extruder is a machine used for processing food, feed, and other materials. It consists of two intermeshing screws that rotate within a barrel to convey, mix, and shape the material as it moves through the extruder. The extrusion process typically involves heating and pressurizing the material, which can cause physical and chemical changes that can improve its properties or create new products. Wenger Twin Screw Extruders are commonly used in the food and feed industries to produce snacks, breakfast cereals, pet food, and aquafeed, among other products. They are known for their versatility, efficiency, and ability to impart specific properties to the processed material.

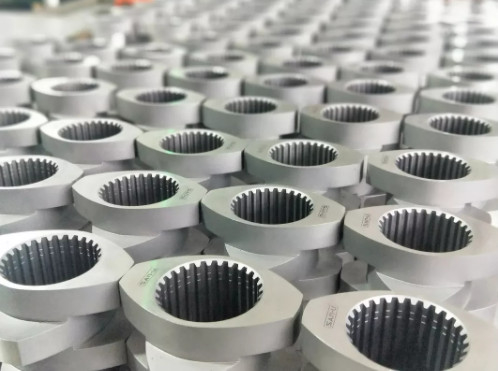

Wenger Twin Screw Extruder Elements For Food Twin Screw Extruder 0





2 . The usage of the screw elements

The screw elements of a Wenger Twin Screw Extruder are the components that are responsible for conveying, mixing, and compressing the material as it moves through the extruder. The screw elements typically consist of several helical flights that are arranged in a specific pattern to achieve the desired processing characteristics. Wenger Twin Screw Extruders may use various types of screw elements depending on the specific application and processing requirements. Some examples of screw elements are conveying screws, kneading blocks, shearing elements, and mixing paddles. Wenger Twin Screw Extruders may also use modular screw elements that can be easily swapped out to change the processing capabilities of the extruder.





3 . The advantages



The screw elements of a Wenger Twin Screw Extruder offer several advantages over other types of extruders. Some of the key advantages are:

a . Versatile processing capabilities: The screw elements can be customized to achieve specific processing objectives, such as conveying, mixing, cooking, shearing, and shaping. This versatility allows the extruder to process a wide range of products with different textures, shapes, and properties.

b . Efficient mixing and dispersion: The intermeshing screws and screw elements create a highly efficient mixing and dispersing environment that can uniformly distribute additives, flavors, and nutrients throughout the material.

c . Consistent quality and control: The precise control of temperature, pressure, and screw speed in a Wenger Twin Screw Extruder, coupled with the ability to customize the screw elements, provides consistent and repeatable output quality and processing performance.

d . High throughput and yield: The twin screw design allows for higher throughput and yield compared to single-screw extruders, which can result in lower production costs and higher profitability.

e . Easy maintenance and cleaning: The modular design of the screw elements makes them easy to replace and maintain, while the self-wiping action of the screws minimizes the risk of product buildup and contamination.





4 . Applicatons

Wenger Twin Screw Extruders have a wide range of applications in the food, feed, and other industries. Some common applications include:

a . Snacks: Extruded snacks such as chips, curls, and puffed snacks can be produced using Wenger Twin Screw Extruders.

b . Breakfast cereals: Extruded breakfast cereals such as flakes, loops, and balls can be produced using Wenger Twin Screw Extruders.

c . Pet food: Extruded pet food products such as kibble, treats, and chews can be produced using Wenger Twin Screw Extruders.

d . Aquafeed: Extruded fish and shrimp feed can be produced using Wenger Twin Screw Extruders.

e . Functional ingredients: Wenger Twin Screw Extruders can be used to produce functional ingredients such as protein isolates, fiber concentrates, and starches.

f . Pharmaceutical products: Wenger Twin Screw Extruders are used in the pharmaceutical industry for granulation, controlled release formulations, and extrusion-spheronization.

g . Polymer compounding: Wenger Twin Screw Extruders can be used for polymer compounding, including the production of masterbatches, blends, and composites.

Wenger Twin Screw Extruder Elements For Food Twin Screw Extruder 1





5 . Our QC Control

Spectroscopic Component

Wenger Twin Screw Extruder Elements For Food Twin Screw Extruder 2



German Digimar Altimeter





Wenger Twin Screw Extruder Elements For Food Twin Screw Extruder 3



Dye penetrant inspection(PT Test)

Wenger Twin Screw Extruder Elements For Food Twin Screw Extruder 4Wenger Twin Screw Extruder Elements For Food Twin Screw Extruder 5



Ultrasonic Flaw Detection (UT Test)

Wenger Twin Screw Extruder Elements For Food Twin Screw Extruder 6





6 . Our detection

Three Coordinate Measuring Machine





Wenger Twin Screw Extruder Elements For Food Twin Screw Extruder 7



Rockwell Hardness Tester

Wenger Twin Screw Extruder Elements For Food Twin Screw Extruder 8





Carbon Sulfur Detector

Wenger Twin Screw Extruder Elements For Food Twin Screw Extruder 9



Abrasive Wear Testing Machine

Wenger Twin Screw Extruder Elements For Food Twin Screw Extruder 10







7 . Our Advantage

1) Independent research and development of materials and processes can ensure the performance and process of materials to the maximum extent, and greatly prolong the service life compared with ordinary products.

Wenger Twin Screw Extruder Elements For Food Twin Screw Extruder 11



2) Independently develop the process of key products, and constantly improve and enhance the old process to achieve the best product performance.

Wenger Twin Screw Extruder Elements For Food Twin Screw Extruder 12





3) Continuously improving and optimizing product appearance of the composite layer ,which greatly improved the service life of products.

Wenger Twin Screw Extruder Elements For Food Twin Screw Extruder 13
