Place of Origin: | Jiangsu,China |
Brand Name: | BlM |
Certification: | ISO |
Model Number: | CUSTOMIZED |
Type: | Sheet Extruder | Plastic Processed: | WPC |
---|---|---|---|
Product Type: | Granulating Extruder | Feeding Mode: | Multiple Feed |
Screw Channel Structure: | Deep Screw | Application: | Materbatch,plastic,food,chemical |
High Light: | 350mm Extrusion Screw Barrel,Extrusion parallel twin screw barrel,parallel twin screw barrel 350mm |
Product Description
We manufacture barrels for co-rotating twin screw extruders ranging from 12 mm to 350 mm and over. Our manufacturing specializes in barrels for twin screw extruders and is optimized for flexible order handling.
Bloom supplies cylinder barrel suitable for the following extruder products lines :
-APV -KOBE -OMC
-Buhler -KraussMaffei -Theysohn
-Buss -Berstorff- -Toshiba
-Clextral -Labtech -USEON
-Lantai - others
-JSW -Leistritz
-Keya -Maris
Range of Work
Diameter of 12-350mm
Types of Barrels
Standard for classification: Design geometry Standard for classification: With inner or not
* Feeding barrel * Solid barrel
* Closed barrel * Barrels with inners
* Vent barrel
* Combi barrel
* Extended degassing barrel
* Combi barrel with backward venting
We offer a broader choice of materials:
Solid barrels
*Nitrided steel barrels *Tooling steel barrels *Bimetallic

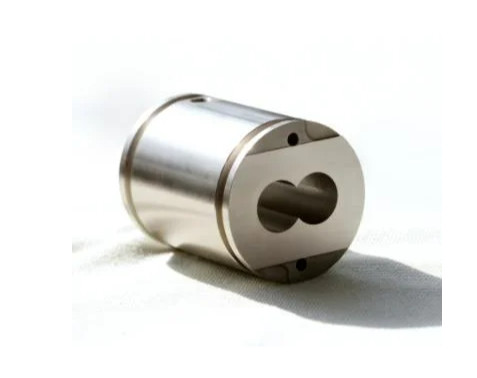

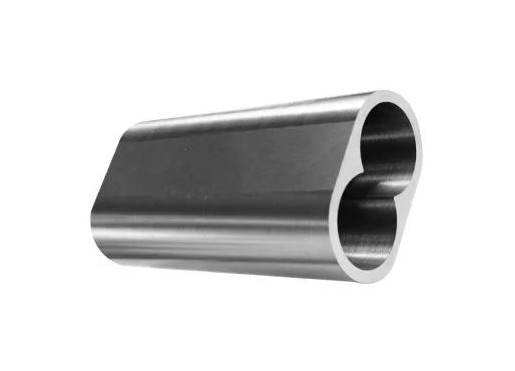

Barrel with installed inner
* made of PM-HIP solid *WR13
By working closely with customers in choosing optional materials,we can minimize wear and tear and associated costs.
Our Main Materials and Their Application:
For Wear Application:
Tool Steel: W6Mo5Cr4V2
PM-HIP Materials: SAM10, SAM26, SAM39, CPM10V, CPM9V
For Corrosion Application:
Nitrided Steel: 38CrMoAlA
PM-HIP Materials: SAM26, SAM39, CPM10V, CPM9V
For Wear & Corrosion Application:
PM-HIP Materials: SAM26, SAM39, CPM10V, CPM9V
Other Materials: 316L HC276 etc.
Standard Barrel Parameter Table (selection table) |
|||
Model |
Size(mm) W*H*L |
Hole Diameter(mm) |
Distance(mm) |
BM-20 |
115*105*132 |
φ23 |
18.4 |
BM-30 |
135*115*120 |
φ30.6 |
26 |
BM-35 |
140*120*140 |
φ36 |
30 |
BM-36 |
160*140*150 |
φ36 |
30 |
BM-40 |
175*145*160 |
φ41.6 |
34.5 |
BM-50 |
190*150*190 |
φ51 |
42 |
BM-52 |
200*155*210 |
φ52 |
43 |
BM-53 |
210*160*220 |
φ53.3 |
48 |
BM-58 |
220*175*240 |
φ58 |
48 |
BM-60 |
210*170*240 |
φ60 |
52 |
BM-65 |
210*170*240 |
φ63 |
52 |
BM-75 |
260*200*290 |
φ71.8 |
60 |
BM-85 |
280*215*320 |
φ81.9 |
67.8 |
BM-92 |
310*240*360 |
φ92 |
78 |
BM-95 |
310*240*360 |
φ94 |
78 |
BM-110 |
330*240*420 |
φ109 |
91.5 |
BM-125 |
390*290*500 |
φ125 |
98 |
BM-135 |
370*300*410 |
φ134 |
110 |
