Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials

Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials

  • Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials
  • Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials
  • Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials
  • Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials
  • Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials
Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials
Product Details:
Place of Origin: Jiangsu, China
Brand Name: BLM
Certification: ISO 9001
Model Number: standard or customized
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negetation
Packaging Details: Packing in wooden case
Delivery Time: 60 to 75 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: according to the customized products
Contact Now
Detailed Product Description
Main Material: NiCrW Alloy (Ni60 Based On The Addition Of CrC And CrB Product Features: Wear Resistance, Corrosion Resistance, Belongs To The Special Alloy, Hardness In HRC≥57, Alloy Parent Full Melt, Improve The Density, Hardness.
Temperature Resistance: Temperature Limit 600℃ Alloy Layer Thickness: ≧1.8mm
Alloy Layer Hardness: HRC≥57 Advantage: Elliptic Flat Angle Process
Recommendation Reason: New Composite Liner Liner Type: Nickel Chrome Tungsten Composite Liner
Application Extruder Macchine Type: Type 75 And Above 75 Can Made By Composite Liner Application Area: Plastic Manufacturing,food Processing ,construction,pharmaceuticals,chemical Manufacturing,recycling And So On
High Light:

Parallel Twin Screw Extruder Parts

,

Twin Screw Extruder Screw Elements

,

W6mo5cr4V2 Extruder Screw Elements

Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials



1 . Factory introduction

We are a professional manufacturer of nickel base alloy, Hastelloy alloy, tungsten carbide alloy, cobalt base alloy and H.I.P liner sleeve.



We have provided super wear-resistant high corrosion resistance bushing for many domestic and foreign parallel twin-screw extruder customers and modification enterprises, and can be developed according to customer needs, combined with the actual conditions of high quality non-standard products, Oze product performance is excellent, stable quality, reasonable price, timely delivery, perfect after-sales.



At present, the factory area of the company is over 3000 square meters, and another 3000 square meters are under planning and design, covering the complete production process of material research and development, main parts production and testing. The company has 6 technical personnel, more than 40 front-line workers, a number of Taiwan, Germany imported production and testing equipment. Currently there are two production plants in China.





Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials 0





2 . Properties of Nickel-Chromium-Tungsten Alloy

Nickel-Chromium- Tungsten alloy has excellent abrasion resistance and corrosion resistance. The increase of Cr content in the nickel-chromium alloy matrix contributes to the oxidation resistance, high temperature resistance and corrosion resistance of the alloy. At the same time, the addition of CrB is better than WC. The microhardness of CrB is as high as 4000-4200DPH, which is close to diamond. It is more conducive to improving the overall strength of the alloy. Due to the high density of WC, it is about 15.7g/cm3, while the matrix of nickel-chromium alloy is only about 8g/cm3. The melting is caused by the uneven surface and depth of the alloy due to the easy segregation of WC, so the content and particle size of WC must be controlled.

Nickel-Chromium-Tungsten alloy( we call WJ65) hard phase increased to about 50%, OS02 and OS25 only ten to thirty,Moreover, the fusion is not sufficient, and the microscopic pores are relatively obvious, which is reflected by the Rockwell hardness HRC of only 52-55 While the Rockwell hardness of nickel chromium tungsten alloy (WJ65) is HRC56-64, the conventional control is HRC58-60. The service life is 3-5 times longer then WR5 or CPM10V Nickel-Chromium-Tungsten alloy( WJ65 )on the basis of Ni60 in accordance with foreign

twin screw working conditions of the formula, greatly improved Hard phase carbides (containing tungsten carbide chromium carbide and other carbides), and the nickel pool fullDissolve. Our Ni-Cr -W alloy layer can reach HRC64 is the best proof.



Chemical composition( %)

C Cr Si B Co Fe Ni
0.50 15.10 2.00 2.00 Co / /
1.60 20.00 5.50 5.50 / 15.00 bal





3 . Product details

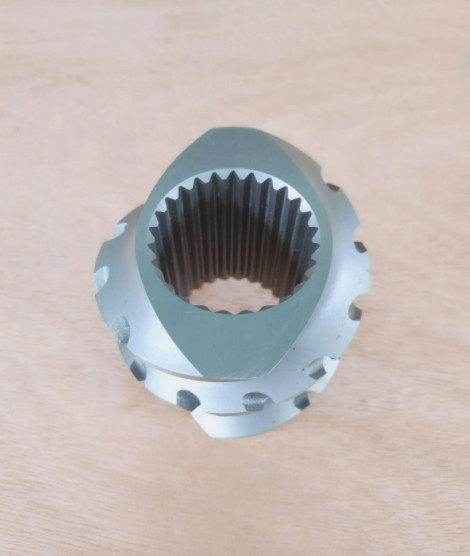

Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials 1

Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials 2

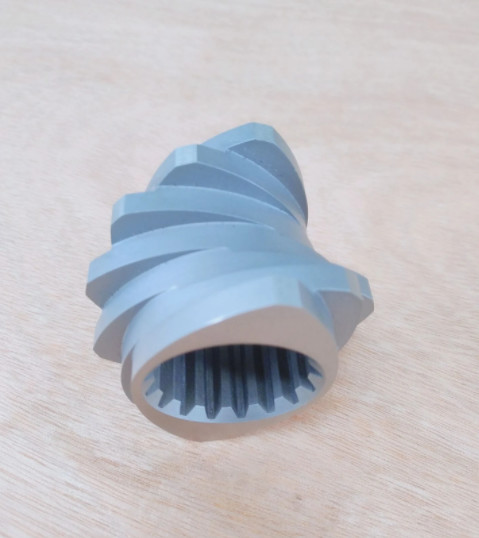

Semi-finished Product



Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials 3

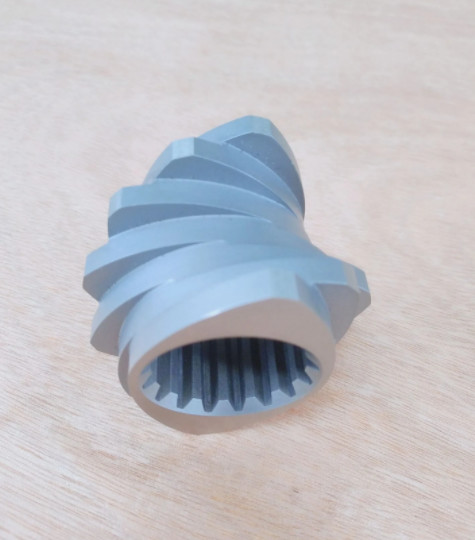

Finished Product

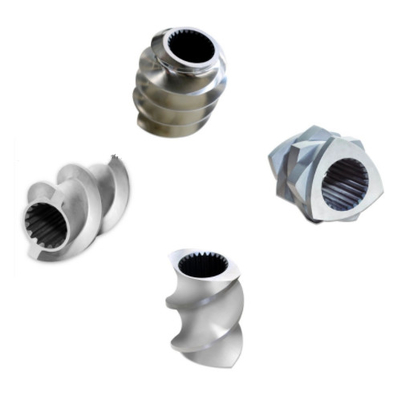

Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials 4

Recommendation Index: Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials 5Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials 6Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials 7Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials 8Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials 9

Main Materials : NiCrW alloy (Ni60 based on the addition of CrC and CrB

Main Features: Wear resistance, corrosion resistance, belongs to the special alloy, hardness in HRC≥57, alloy parent full melt, improve the density, hardness.

Structure Drawing:

Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials 10









New Process Of Spray Welding

Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials 11





The Main Process Is Different (from the original sintering process to the current spray welding process)
The product has better densification, the hardness can reach more than 57 degrees, and the service life of the product is 3-5 times that of the sintering process.


Type 35, Type 40,type 50, type 65 with integral nickelchromium tungsten, 75 and above 75 can made by composite liner.





Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials 12



4 . Our QC Control

Spectroscopic Component

Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials 13



German Digimar Altimeter





Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials 14



Dye penetrant inspection(PT Test)

Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials 15Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials 16



Ultrasonic Flaw Detection (UT Test)

Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials 17





5 . Our detection

Three Coordinate Measuring Machine





Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials 18



Rockwell Hardness Tester

Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials 19





Carbon Sulfur Detector

Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials 20



Abrasive Wear Testing Machine

Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials 21







5 . Our Advantage

1) Independent research and development of materials and processes can ensure the performance and process of materials to the maximum extent, and greatly prolong the service life compared with ordinary products.

Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials 22



2) Independently develop the process of key products, and constantly improve and enhance the old process to achieve the best product performance.

Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials 23





3) Continuously improving and optimizing product appearance of the composite layer ,which greatly improved the service life of products.

Parallel Twin Screw Extruder Screw Elements W6mo5cr4V2 Materials 24
