Handheld Pneumatic Tip Dressing Tool High Speed With Dressing Blades And Holders

Handheld Pneumatic Tip Dressing Tool High Speed With Dressing Blades And Holders

Handheld Pneumatic Tip Dressing Tool High Speed With Dressing Blades And Holders
Handheld Pneumatic Tip Dressing Tool High Speed With Dressing Blades And Holders
Handheld Pneumatic Tip Dressing Tool High Speed With Dressing Blades And Holders
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: BLM-TR-1
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: exw usd 15/pc
Packaging Details: packed and labeled according to the regulations and customer's requests.Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.
Delivery Time: 25-30 days subject to the clients' requirement and quantity
Payment Terms: Western Union, L/C, T/T
Supply Ability: 3000 pc/pcs per Month
Contact Now
Detailed Product Description
Place Of Origin: Jiangsu,China Model Number: BLM-R
Shape: Customized Chemical Composition: HHS
Tip Diameter: 8-25mm Application: SP,spot Welding Cap Tip
High Light:

Spot Welder Tip Dresser High Speed

,

Handheld Tip Dressing Tool

,

Spot Welder Tip Dresser 25mm

Handheld Type Pneumatic Tip Dressing Tool High Speed With Dressing Blades And Holders





1 . Description



Having exact electrodes for resistance welding is one of the fundamental conditions for a good control of resistance welding and therefore to obtain high quality welds.
The ETD-18 pneumatic manual spot sharpener is light and easy to use with rapid replacement of blades and blade holders.
The ETD-18 sharpener for electrodes allows mounting blades and blade holders of various shapes based on the profile of the welding electrode to be used.
It sharpens electrodes for resistance spot welders from Ø10mm to Ø18mm, with different shapes and angles of the head without removing the spot welding electrode from the candle.
Extremely powerful, it allows to revive the electrode area in contact with the material to be joined, to be sure of performing quality welds at any time.



Spot Welder Tip Dresser Main Features

1) Small, lightweight and easy to operate.

2) Only need compressed air.

3) Low cost,high speed,reliable performance.

4) Suport various shapes of weld electrode.

5) Easy to change cutter and holder



1 Correspond to majority of cap tip shapes
2 Cutter holder fit into various types of tip dresser from each maker
3 Contribute to reduce the cutter variety and inventory management
4 Support the long life span of cutter blade and reduce dressing time



2. Type of cutter cases :

The cutter case bore diameter acts as a guide so that the cutter dresses at the correct location relative to the tip. Please specify a cutter case that matches the tip size.





3. More pictures

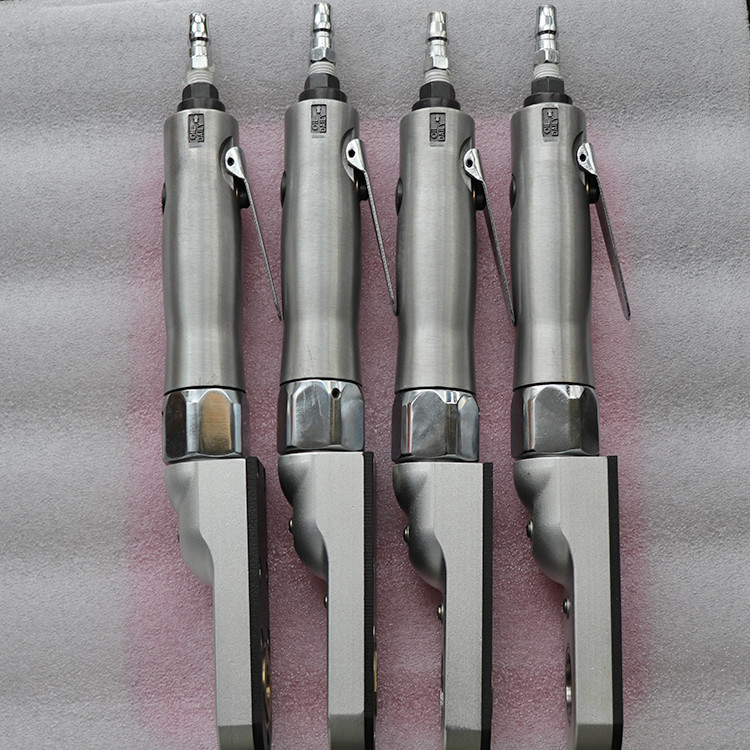

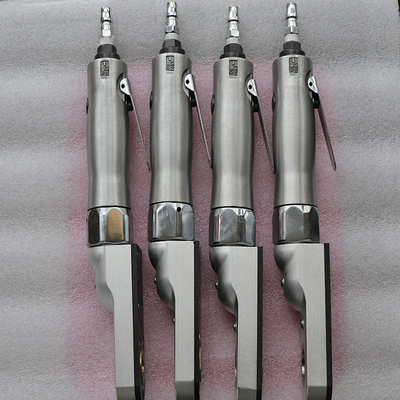

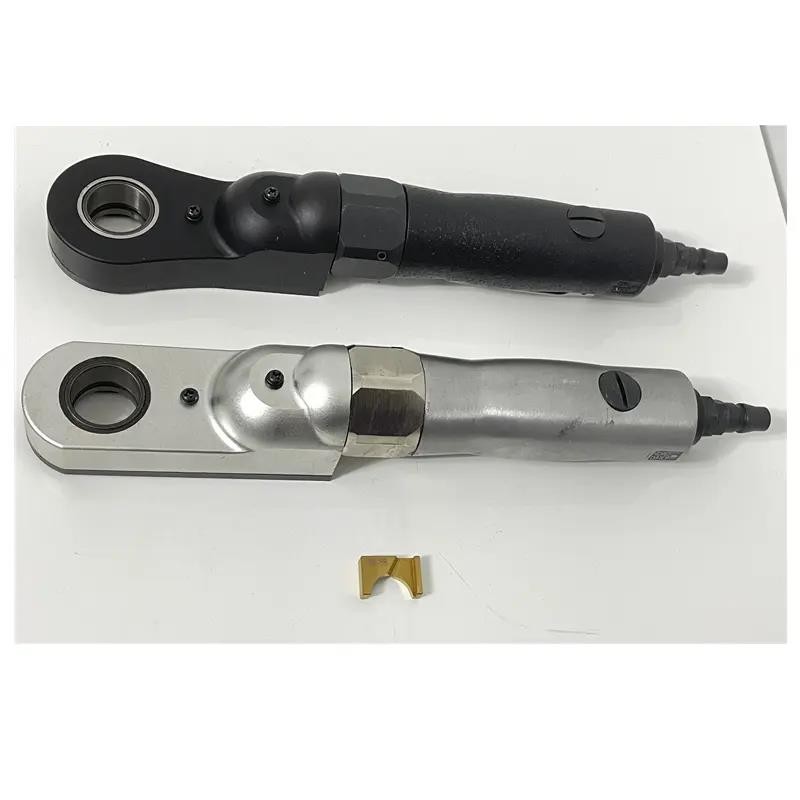

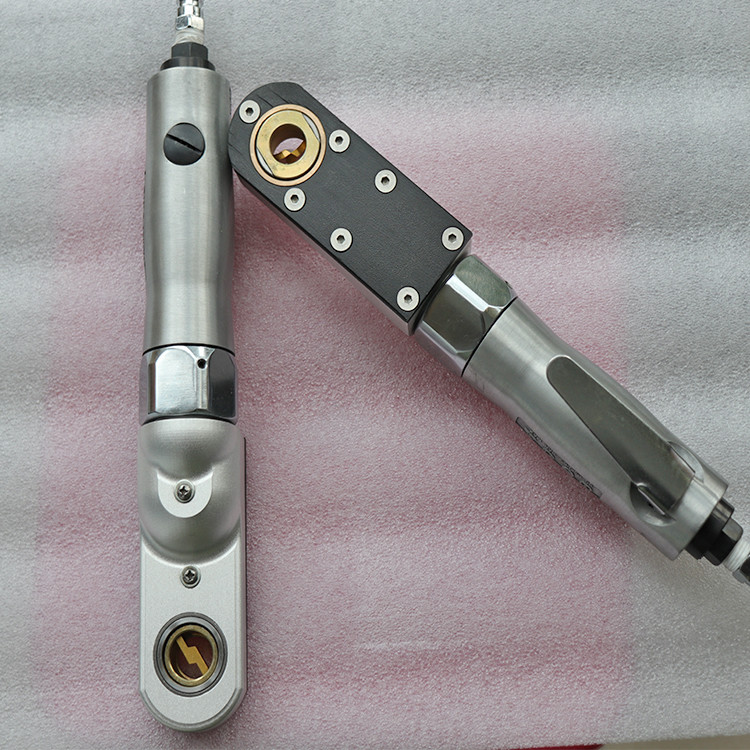

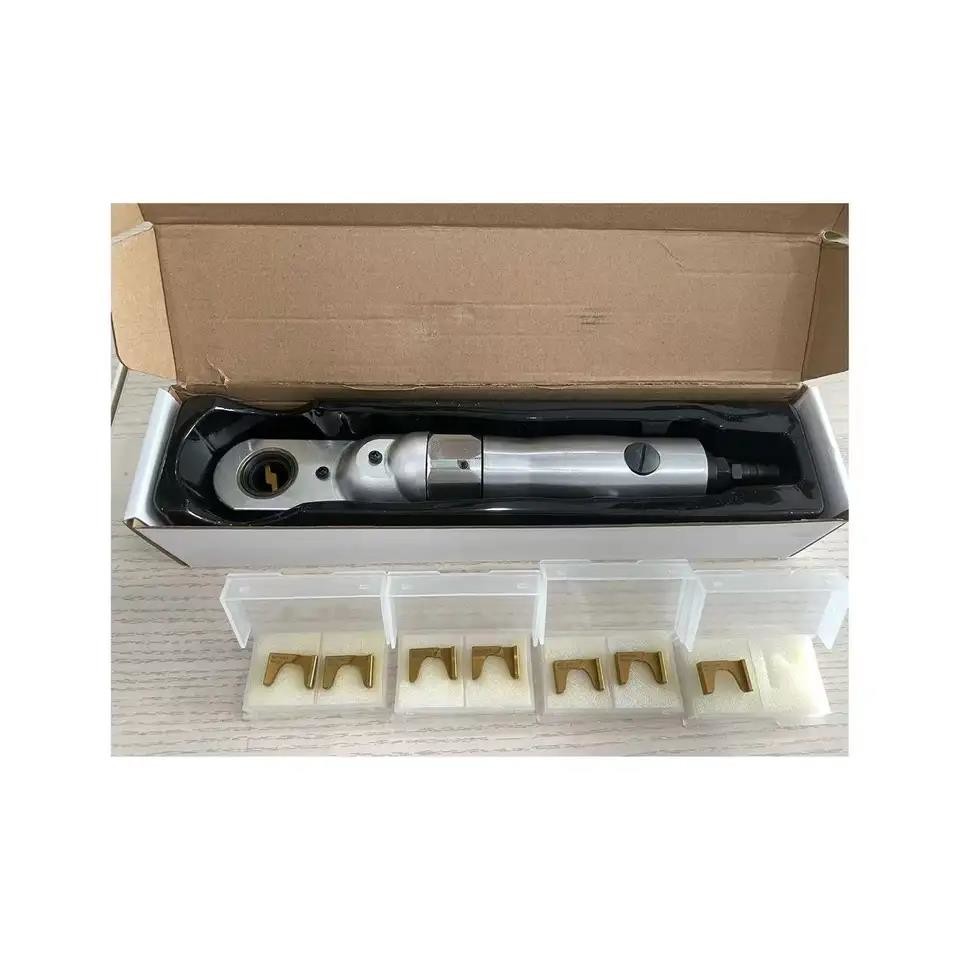

Handheld Pneumatic Tip Dressing Tool High Speed With Dressing Blades And Holders 0



Handheld Pneumatic Tip Dressing Tool High Speed With Dressing Blades And Holders 1Handheld Pneumatic Tip Dressing Tool High Speed With Dressing Blades And Holders 2

Handheld Pneumatic Tip Dressing Tool High Speed With Dressing Blades And Holders 3
