|Place of Origin:||Jiangsu, China (Mainland)|
|Minimum Order Quantity:||1pcs|
|Price:||FobShanghai usd 3.5-5/pc|
|Packaging Details:||packed and labeled according to the regulations and customer's requests.Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.|
|Delivery Time:||25-30 days subject to the clients' requirement and quantity|
|Payment Terms:||Western Union, L/C, T/T|
|Supply Ability:||3000 pc/pcs per Month|
|Size:||Standard Or Customization||Place Of Origin:||Jiangsu, China (Mainland)|
|Type:||Kcf Pin||Application:||Resistance Welding|
|Delivery:||7-10 Days Subject To The Clients' Requirements And Quantity||Price Term:||Ex-Work,FOB,CNF,CFR,CIF,FCA,DDP,DDU|
Kcf Location Pin Customization,
Kcf Locator Pin Customization,
Kcf Guide Pin Customization
Kcf Pin Kcf Guide Pin Location Pin Locator Pin Nut Locator Pilot Pin Welding Pin Cetering Pin
1 . Descriptions:
Bloom Resistance Welding manufacture and supply various material guide sleeve,locating pin,KCF bushings,KCF sleeve.Our material include KCF alloy material,ceramic coated,Zirconia ceramic,Silicon nitride ceramic etc.To meet different clients' requirements.The standard size M4,M5,M6,M8,M10,M12,7/16 kcf sleeve are always in stock.Specifical specification can be customized according to your drawing.Welcome your enquiry!KCF guide pin(location pin) is a kind of insulated welding guide pins made from KCF special alloy material.It has a special insulated surface and this insulated surface is a film growing from alloy base inside,not an external insulation coating. KCF guide pins(location pins)had been being used for locating threaded or non-threaded nuts to eliminate arcing or powerful electric current threaded damage,protecting screw thread during the resistance welding process.
Locator pin can be supplied in different materials: ceramic, KCF and stainless steel. KCF is a special heat treated alloy with a hard, insulating skin which lasts much longer than ceramic though with higher initial price. Senwang offers a range of standard designs while special designs can also be made to order.
We generally use ceramic guide pins as a welding nut positioning pin, but because of the toughness of ceramics is poor, fragile, so now KCF guide pin instead of ceramic is more and more popular.
2 . KCF Guide Pin Technical Specification
Pin Material: KCF,AL2O3,ZrO2,Si3N4,Ceramic,Stainless Steel etc.
KCF Pins Diameter:M4,M5,M6,M8,M10,M12…
Application: KCF guide pins are widely used on projection welding,nut welding,stud welding
3 . Advantages:
▲high temperature strength
▲ superior thermal shock resistance
▲ excellent wear resistance
▲ mechanical fatigue and creep resistance
▲ Excellent non-wetting property with good oxidation resistance
▲ It is convenient to process the rod shape, and the period will be shorter

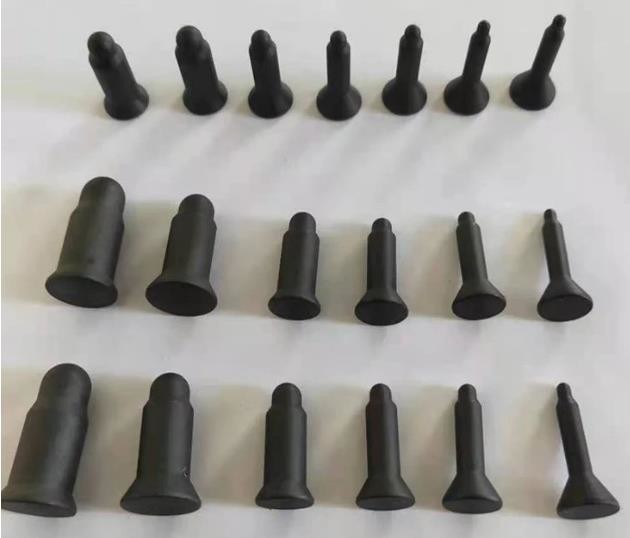

4 . KCF standard pin

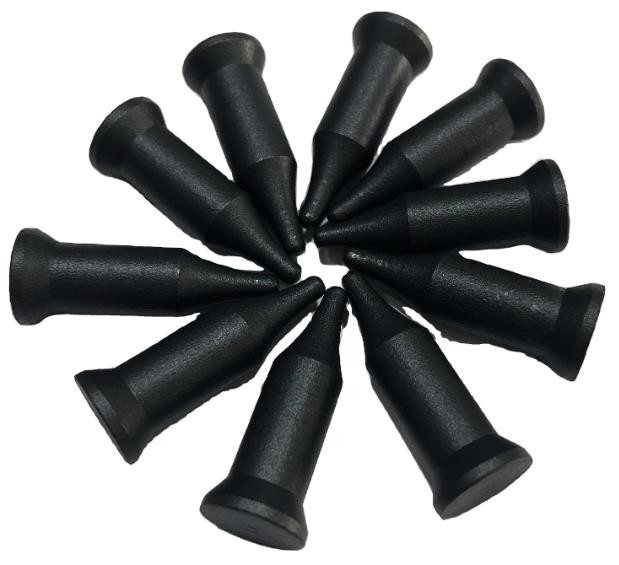

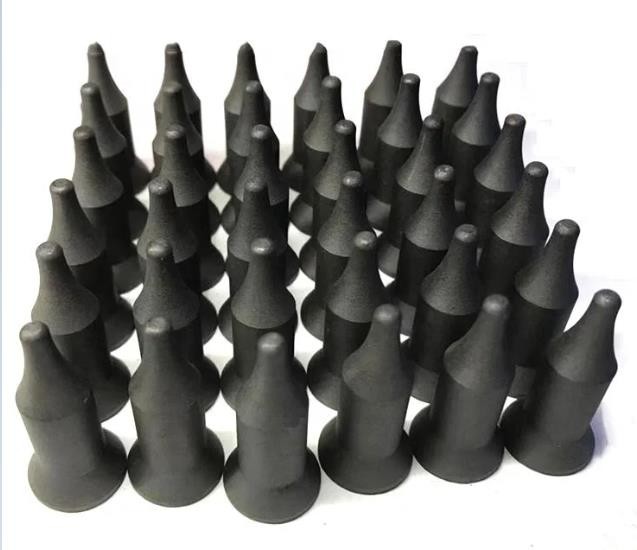

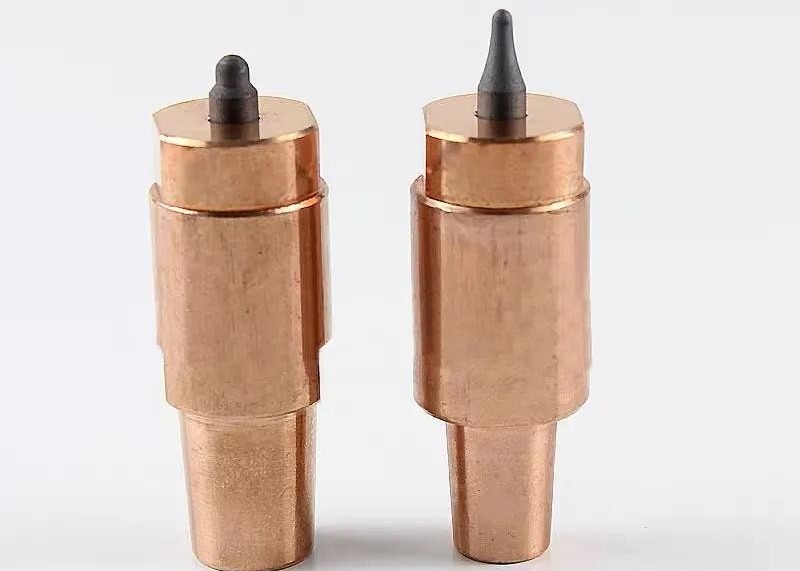

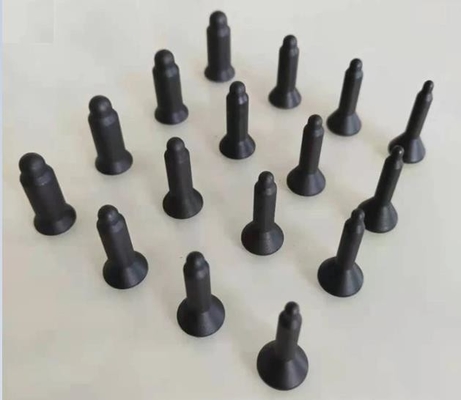

5 . More pictures
