BLOOM(SUZHOU) MATERIALS CO.,LTD
Attitude Is Everything.Details Determine Success or Failure.

|
| Place of Origin: | Jiangsu,China |
| Brand Name: | Bloom |
| Certification: | ISO 9001 |
| Model Number: | BLM -1 |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negetation |
| Packaging Details: | Packing in wooden case |
| Delivery Time: | 30 to 45 days |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs per month |
| Material: | W6Mo5Cr4V2;WR5;WR13 Or Customized | Screw Type: | Double |
|---|---|---|---|
| Product Name: | Twin Screw Extruder Screw Element | Application: | Plastic Industry |
| Surface Treatment: | Vacuum Quenching | Machine Type: | Plastic Wood Food Twin Extruder Machine |
| High Light: | PVC Conical Twin Screw And Barrel,38crmoala Conical Screw Barrel,WPC Conical Twin Screw And Barrel |
||
1 . Description
|
Material |
|
|
Nitriding Hardness |
|
|
Nitriding Depth |
|
|
Quenching Hardness |
|
|
Nitrided Brittleness |
|
|
Surface Roughness |
|
|
Screw Straightness |
|
|
Chromium plating layer hardness after nitriding |
|
|
Chrome platethickness |
|
|
Alloy Depth |
|
|
Packing |
|
2 . Our strengths
Descriptions
Twin screw barrel is gradually adopted by many manufacturers because of its high efficiency. Compared with single screw barrel, twin screw barrel has higher requirements for machining clearance. Our company has a professional team to help users solve design problems, and can also process according to the samples or drawings provided by customers.
Main Charactors:
Using machining center finishing, reasonable processing technology, advanced testing equipment, to ensure that the processing accuracy of each product.
Twin-screw extruder screw element:
- convenient interchangeability by agile combination.
- fulfill efficient self-cleaning, transmission, compounding, pressure-forming and etc.
- made of high speed tool steel W6Mo5Cr4V2, or anti-corrosion steel 38CrMoAlA by speed treatment.
The flexible modular principle is realized with screw barrel sections from the wide range of different designs possible. Fast, intensive and uniform heating of the screw barrel section is ensured by electrical heaters. The barrel sections are cooled with water by means of an internal bore system with bores arranged close to the inside barrel wall.
Bloom supplies cylinder barrel suitable for the following extruder products lines :
-APV -KOBE -OMC
-Buhler -KraussMaffei -Theysohn
-Buss -Berstorff- -Toshiba
-Clextral -Labtech -USEON
-Lantai - others
-JSW -Leistritz
-Keya -Maris
Size and capacity
Here is list of our general design data, which may be updated in some different circumstance.
| Specification (d / D) | Working Length (mm) | Rotate Speed (rpm) | Capacity (kg/h) |
| Φ35/75 | 810 | 5-50 | 40-70 |
| Φ45/90 | 990 | 5-45 | 50-80 |
| Φ45/100 | 990 | 5-45 | 60-90 |
| Φ48/112 | 1104 | 4-45 | 70-100 |
| Φ50/105 | 1045 | 4-45 | 100-150 |
| Φ51/105 | 1220 | 4-45 | 100-150 |
| Φ55/110 | 1220 | 4-40 | 120-180 |
| Φ55/120 | 1230 | 4-40 | 130-180 |
| Φ58/126 | 1320 | 4-40 | 140-200 |
| Φ60/125 | 1320 | 4-40 | 150-200 |
| Φ65/120 | 1440 | 4-40 | 200-250 |
| Φ65/132 | 1440 | 4-40 | 200-250 |
| Φ68/146 | 1550 | 4-40 | 220-300 |
| Φ80/143 | 1800 | 4-35 | 300-360 |
| Φ80/156 | 1800 | 4-35 | 300-360 |
| Φ92/188 | 2000 | 3-35 | 400-500 |
Types of Barrels
Standard for classification: Design geometry Standard for classification: With inner or not
* Feeding barrel * Solid barrel
* Closed barrel * Barrels with inners
* Vent barrel
* Combi barrel
* Extended degassing barrel
* Combi barrel with backward venting
We offer a broader choice of materials:
Solid barrels
*Nitrided steel barrels *Tooling steel barrels *Bimetallic
Barrel with installed inner
* made of PM-HIP solid *WR13
By working closely with customers in choosing optional materials,we can minimize wear and tear and associated costs

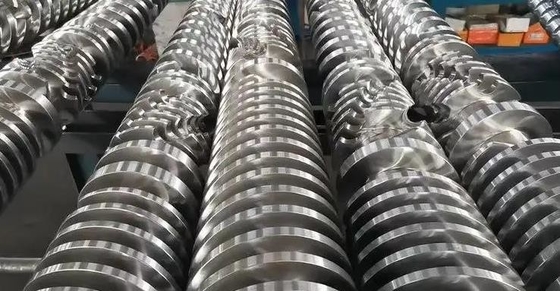

3. Pictures
