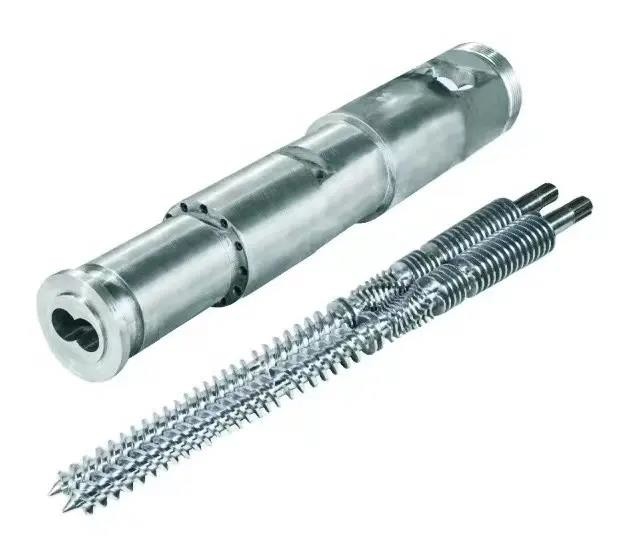

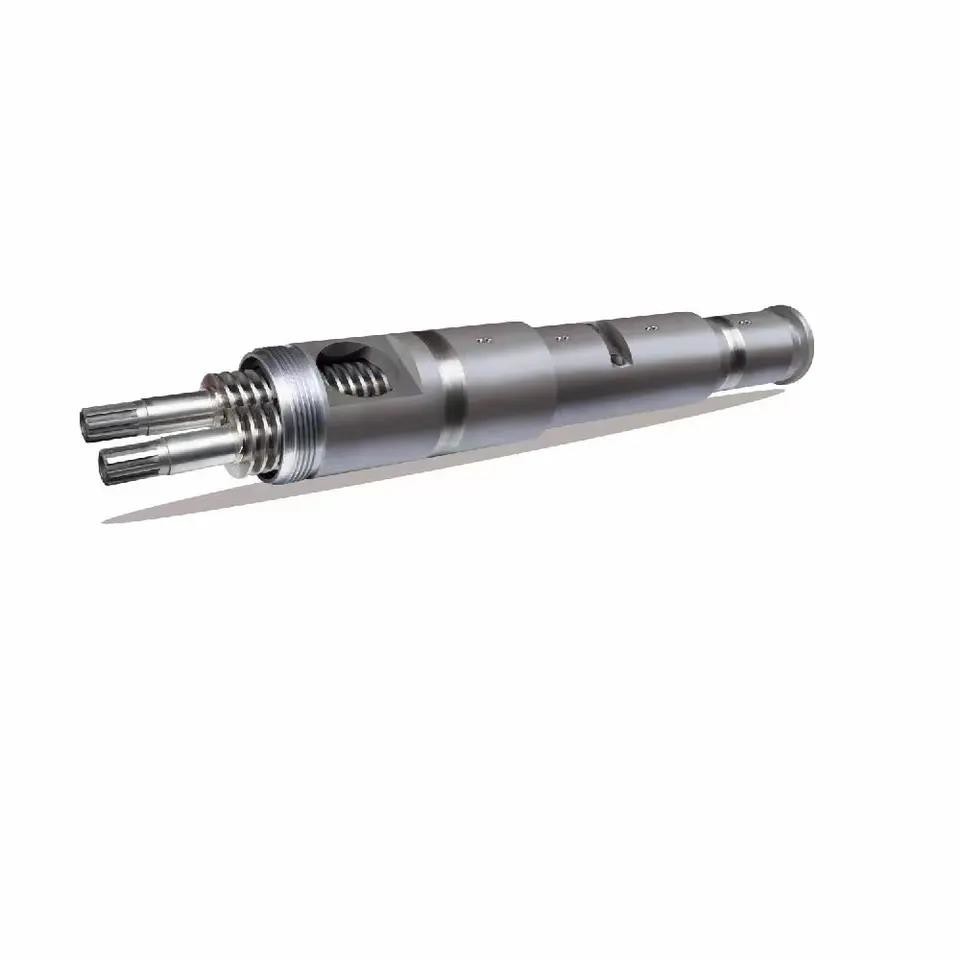

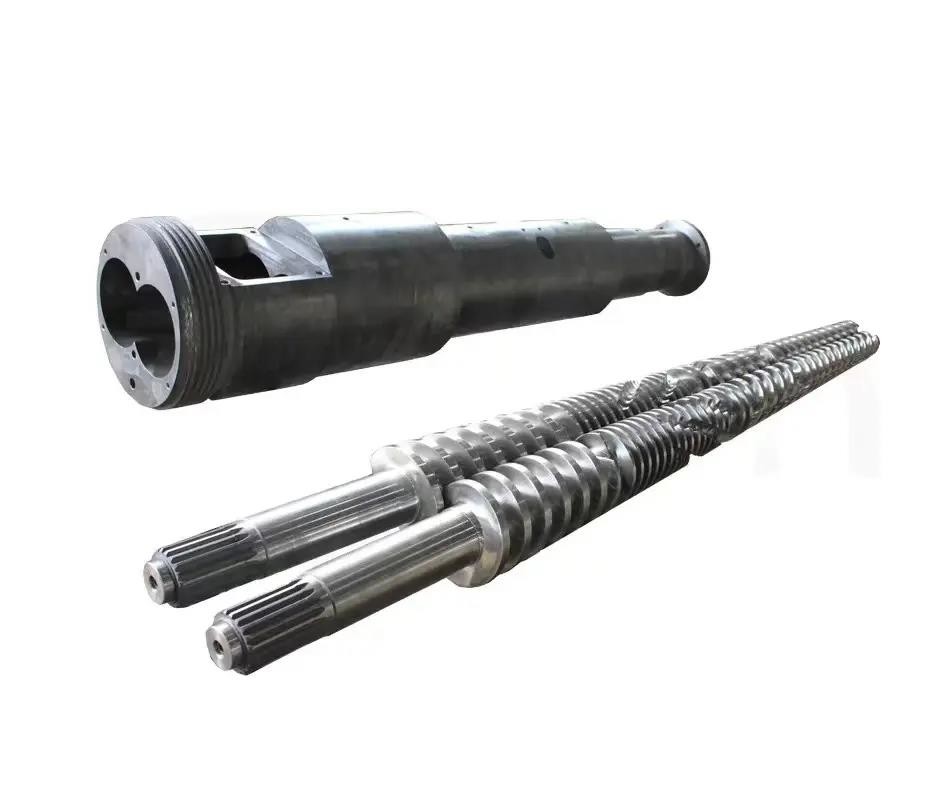

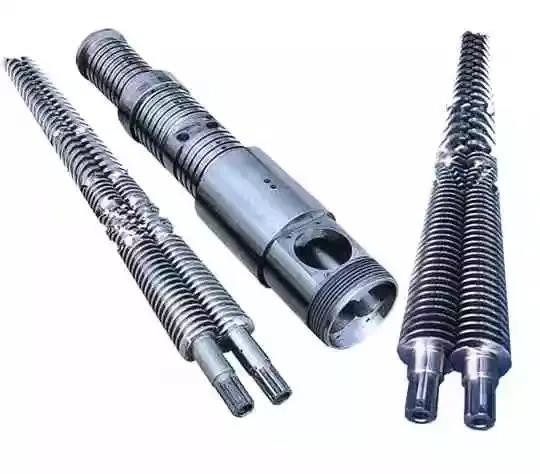

Bimetallic Screw And Barrel For Plastic Extruder Machines

Bimetallic Screw And Barrel For Plastic Extruder Machines

Bimetallic Screw And Barrel For Plastic Extruder Machines
Bimetallic Screw And Barrel For Plastic Extruder Machines
Bimetallic Screw And Barrel For Plastic Extruder Machines
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: BLM-IV-1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: packed and labeled according to the regulations and customer's requests.Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.
Delivery Time: 25-30 days subject to the clients' requirement and quantity
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000 per Month
Contact Now
Detailed Product Description
Charactor: Bimetallic Type: Pipe Extruder
Screw Quantity: Single Screw Other Name: Conical Single Screw Extruder
Application: Extrusion Of Pipes, Sheets And Other Products Screw Diameter: 75 Mm
Maximum Extrusion Diameter: 110 Mm Production Capacity: 120 Kg/h
Positioning Accuracy: 1 Mm Dimensions: 2500 Mm
Motor Power: 45 Kw
High Light:

Single Screw Bimetallic Screw Barrel

,

Single Screw Bimetallic Screw And Barrel

,

Plastic Extruder Bimetallic Screw Barrel

bimetallic screw and barrel for plastic extruder machine





Main Charactors:

Using machining center finishing, reasonable processing technology, advanced testing equipment, to ensure that the processing accuracy of each product.

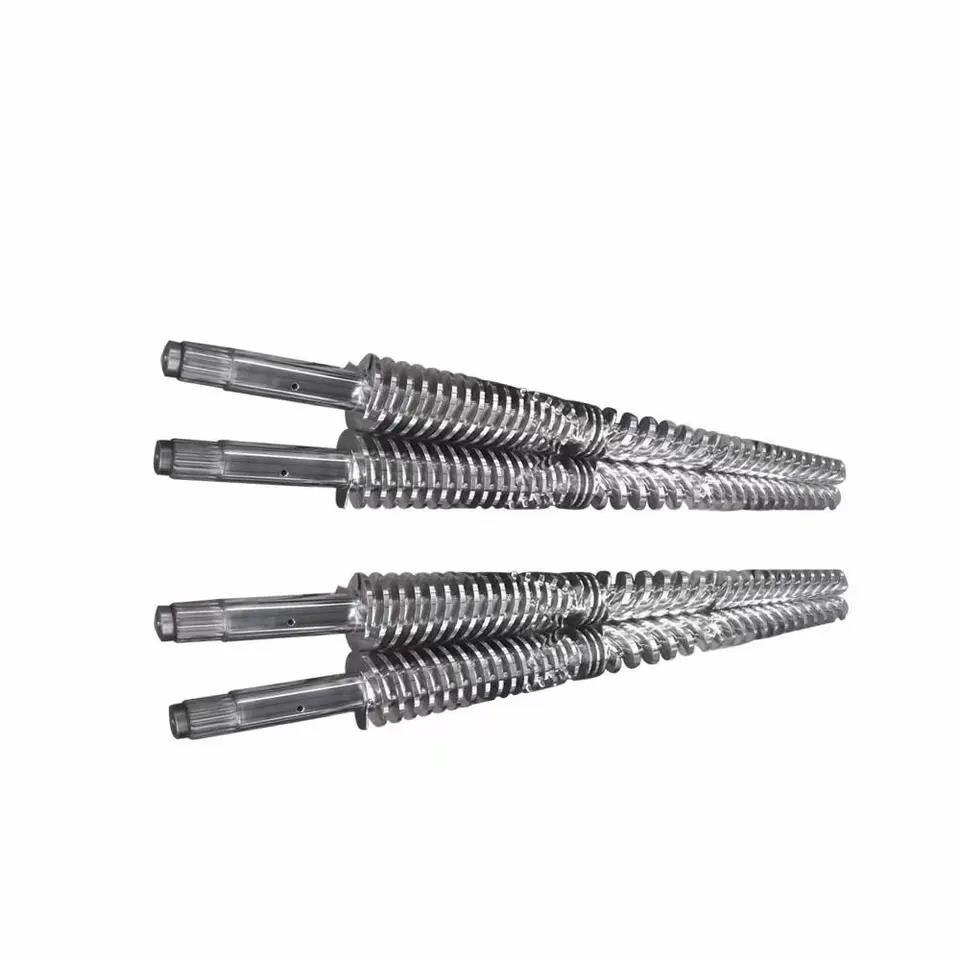

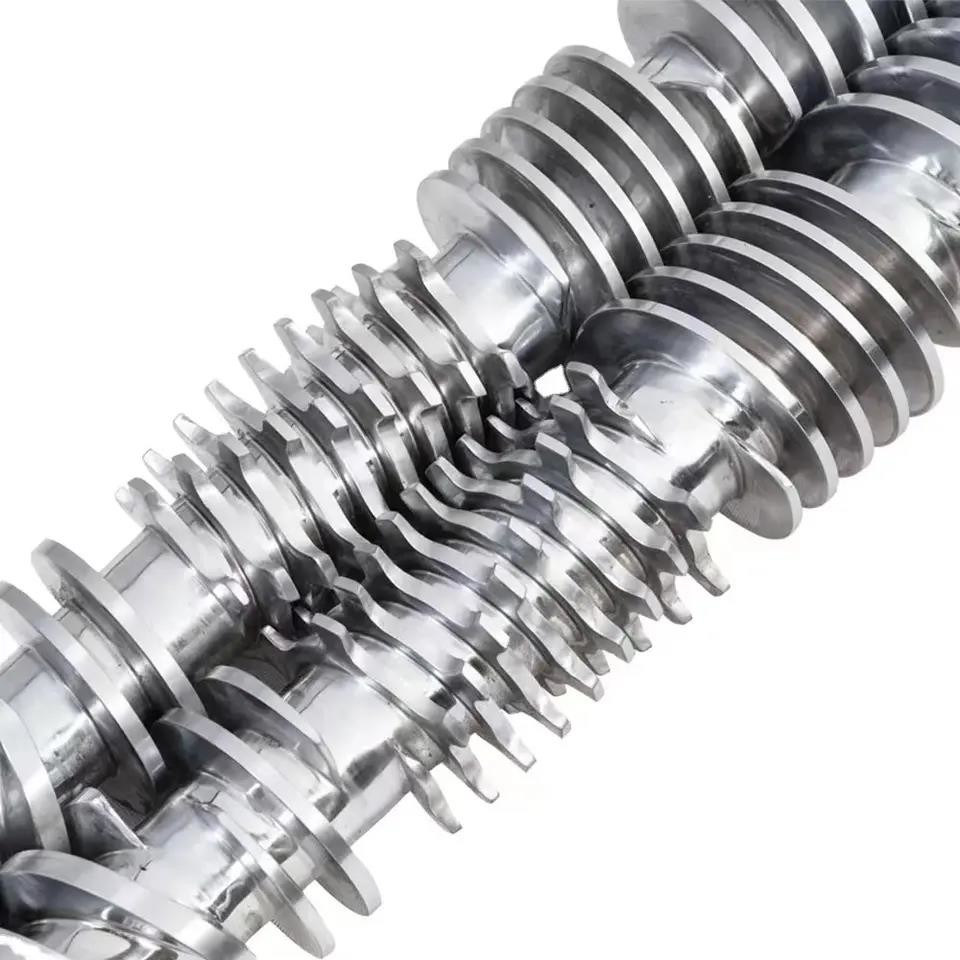

Twin-screw extruder screw element:
- convenient interchangeability by agile combination.
- fulfill efficient self-cleaning, transmission, compounding, pressure-forming and etc.
- made of high speed tool steel W6Mo5Cr4V2, or anti-corrosion steel 38CrMoAlA by speed treatment.
The flexible modular principle is realized with screw barrel sections from the wide range of different designs possible. Fast, intensive and uniform heating of the screw barrel section is ensured by electrical heaters. The barrel sections are cooled with water by means of an internal bore system with bores arranged close to the inside barrel wall.



Bimetallic Screw And Barrel For Plastic Extruder Machines 0

Bimetallic Screw And Barrel For Plastic Extruder Machines 1

Bimetallic Screw And Barrel For Plastic Extruder Machines 2

Code No
Description
Materials
Alloy Thickness
Application
BLM-B-01
Barrel
38CrMoAl+Alloy
2mm
Extruder
BLM-B-02
Barrel
45 Steel +Alloy
3mm
Extruder
BLM-B-03
Barrel
316Steel+Alloy
5-20mm
Extuder
BLM-B-04
Barrel
304Steel+Alloy
5-20mm
Extruder



Bimetallic Screw And Barrel For Plastic Extruder Machines 3

No
Size W*H*L (mm)
Hole Diameter Φ (mm)
Center Distance D(mm)
BLM-001
115*105*132
Φ23
18.4
BLM-002
135*115*120
Φ30.6
26
BLM-003
190*150*190
Φ51
42
BLM-004
210*160*220
Φ53.3
48
BLM-005
210*170*240
Φ60
52
BLM-006
310*240*360
Φ92
78
BLM-007
330*240*420
Φ100
91.5
BLM-008
370*300*410
Φ134
110
Note:We can customize all sizes according to your drawings.
