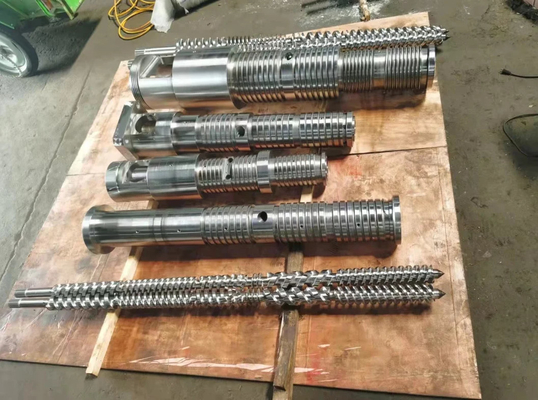

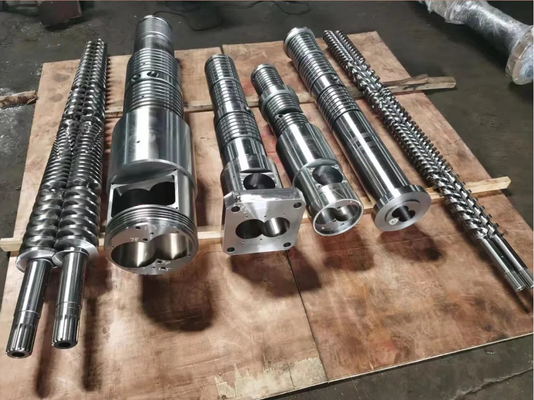

Conical Twin Screw Barrel For PVC Pipeline Extruder 80/156 65/132 55/110 50/105

Conical Twin Screw Barrel For PVC Pipeline Extruder 80/156 65/132 55/110 50/105

Conical Twin Screw Barrel For PVC Pipeline Extruder 80/156 65/132 55/110 50/105
Conical Twin Screw Barrel For PVC Pipeline Extruder 80/156 65/132 55/110 50/105
Conical Twin Screw Barrel For PVC Pipeline Extruder 80/156 65/132 55/110 50/105
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: BLM-IV-1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: packed and labeled according to the regulations and customer's requests.Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.
Delivery Time: 25-30 days subject to the clients' requirement and quantity
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000 per Month
Contact Now
Detailed Product Description
Place Of Origin: Jiangsu,China Material: 38CrMoAIA, 38CrMoAlA,SKD61,SACM645
Spare Parts Type: Screw Barrel Video Outgoing-inspection: Provided
Applicable Industries: Plastic Rubber Machinery Parts Application: Plastic Machine
Surface Treatment: Nitrided Or Bimetallic Application Machine: PVC WPC Profilr Pipe Extruder
Feature Effect: Wear Adn Corrosion Resistance Nitride Hardness: HV900-1000
Highlight:

Pipeline Extruder Conical Twin Screw Barrel

,

PVC Extruder Conical Twin Screw Barrel

Conical Twin Screw Barrel For PVC Pipeline Extruder Extrusion Machine 80/156 65/132 55/110 50/105 Bloom Manufacturer



Product  Description:

Bloom manufacture screw elements,barrels and other extruder machinesWe have provided machines with matching screw and barrel, such as engel (Engel), davis-standard (Davis standard), weber (Weber), berstorff (Berstorff), Battenfeld, Cincinnati, Taiwan Zhuyou, South Nanrong, Zhende, Haitian, Haitai, Hangzhou Tairui, Chenhsong, Korea Woojin, Japan Sumitomo, sumida, Liansu, Hongqi, Jugang, Yuanfeng, Xiongsu, etc. Domestic and foreign plastic machinery companies.




Conical twin-screw extruder is an efficient mixing and extrusion equipment. The machine has the characteristics of low shear rate, difficult material decomposition, uniform plasticizing and mixing, stable quality, high output, wide application range and long service life.



Product name

Conical Twin Screw Extruder

Other name

Conical twin extruder

Application

Plasticizing PVC or wood-plastic products

Features

stable quality,high output,wide application range

Drive

Motor





The main products are precision screw barrels (nitrided screw barrels, double alloy screw barrels, stainless steel screw barrels, fully hardened screws, high-speed tool steel screw barrels): injection molding machine screw barrels, extruder screw barrels, Blow molding machine screw barrel, chemical fiber machine screw barrel, single screw barrel, parallel twin screw barrel, conical twin screw barrel, screw barrel accessories;...

The products are made of high-quality 38crmoala; high-quality sacm645; high-quality skd11; high-quality skd61; 9cr18mov and other high-quality materials, which are tempered and formed. The surface can be nitrided, hard-plated, spray-welded hard alloy and other processes. The product has the advantages of high wear resistance, corrosion resistance and long service life. Widely applicable to various rubber and plastic raw materials, such as: pe, pp, pvc, ps, abs, pa, pom, pc, psv, ptfe, pvr, pr, up, pec, pf, vf, mp, pmma, pet, pbt , pps, mppo, pi, lcp, etc.




1. Parallel twin-screw barrel series:

φ50/2 (2 represents twin screw), φ65/2, φ80/2, φ90/2, φ105/2, φ125/2, φ130/2, φ150/2, φ180/2, φ200/2



2. Conical twin-screw barrel series

sjs 35 (φ35/80-2), sjs 51 (φ51/105-2), sjs 55 (φ55/113-2), sjs 65 (φ65/132-2), sjs 80 (φ80/156-2), sjs 92 (φ92/188)



Screw steering: different directions outward



Screw speed:

1-40,1-32,1-36,1-32,1-32,1-32



Effective length of the screw (the effective length of the screw generally refers to the length of the screw part):

810mm, 1070mm, 1200mm, 1441mm, 1800mm, 2500mm



3. Extrusion and injection molding single screw, barrel series

Specifications: diameter φ15mm-diameter φ360mm

Aspect ratio (the effective length of the screw divided by the diameter of the screw): l/d=15-45



4. Rubber screw and barrel series



4.1 Pin screw, barrel

Specifications: diameter φ75mm-diameter φ200mm



4.2 Cold and hot feeding screw, barrel

Specifications: diameter φ30mm-diameter φ250mm





Conical Twin Screw Barrel For PVC Pipeline Extruder 80/156 65/132 55/110 50/105 0

Conical Twin Screw Barrel For PVC Pipeline Extruder 80/156 65/132 55/110 50/105 1

Conical Twin Screw Barrel For PVC Pipeline Extruder 80/156 65/132 55/110 50/105 2









Production Process Show

Conical Twin Screw Barrel For PVC Pipeline Extruder 80/156 65/132 55/110 50/105 3





Testing Equipments Show

Conical Twin Screw Barrel For PVC Pipeline Extruder 80/156 65/132 55/110 50/105 4

Conical Twin Screw Barrel For PVC Pipeline Extruder 80/156 65/132 55/110 50/105 5





Packing&Delivery

Conical Twin Screw Barrel For PVC Pipeline Extruder 80/156 65/132 55/110 50/105 6





Company Introduction

Conical Twin Screw Barrel For PVC Pipeline Extruder 80/156 65/132 55/110 50/105 7

Our company Bloom(Suzhou) Materials Co., Ltd is a trading company especially for oversea sales, but our factory OUZI technology is specialized in the manufacturing of Replacement parts for Twin Screw Extruder. So far has over then 5 years of research and development production experience. Manufacturing Barrels, Gearboxes, Overall Liners and Screw Elements for Twin Screw Extruder. Our products cover all kinds of wear and corrosion resistant spare parts such as screw elements , barrels, shafts, plugs, couplings and so on. The screw diameter ranges from dia12.mm to dia.350mm. We do not produce single metal barrels and screw parts, but we also researched and produce bimetallic extruded screw barrels, which will make the life time of the parts double or triple increased. Our factory has strong technical force, excellent processing equipment, advanced production technology, strict inspection system and perfect after-sales service. My factory OUZI technology is the main supplier of spare parts of Leistritz China. We welcome all the friend oversea to contact and test my products, we are sure that Quality proves everything.If You give us one chance , we will return you inconceivable quality increased.



Conical Twin Screw Barrel For PVC Pipeline Extruder 80/156 65/132 55/110 50/105 8

Conical Twin Screw Barrel For PVC Pipeline Extruder 80/156 65/132 55/110 50/105 9

Conical Twin Screw Extruder
