BLOOM(SUZHOU) MATERIALS CO.,LTD
Attitude Is Everything.Details Determine Success or Failure.

|
| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | BLM-kcf-1 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | FobShanghai usd 3.5-5/pc |
| Packaging Details: | packed and labeled according to the regulations and customer's requests.Great care is taken to avoid any damage which might otherwise be caused during storage or transportation. |
| Delivery Time: | 25-30 days subject to the clients' requirement and quantity |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 3000 pc/pcs per Month |
| Size: | Standard Or Customization | Place Of Origin: | Jiangsu, China (Mainland) |
|---|---|---|---|
| Type: | Kcf Pin | Application: | Resistance Welding |
| Delivery: | 7-10 Days Subject To The Clients' Requirements And Quantity | Price Term: | Ex-Work,FOB,CNF,CFR,CIF,FCA,DDP,DDU |
| Highlight: | M12 KCF Guide Pin,Nut Welding KCF Pin,Resistance Welding KCF Pin |
||
Customized KCF Long Length Pins With High Quality
1 . Descriptions:
Bloom Resistance Welding manufacture and supply various material guide sleeve,locating pin,KCF bushings,KCF sleeve.Our material include KCF alloy material,ceramic coated,Zirconia ceramic,Silicon nitride ceramic etc.To meet different clients' requirements.The standard size M4,M5,M6,M8,M10,M12,7/16 kcf sleeve are always in stock.Specifical specification can be customized according to your drawing.Welcome your enquiry!
Locator pin can be supplied in different materials: ceramic, KCF and stainless steel. KCF is a special heat treated alloy with a hard, insulating skin which lasts much longer than ceramic though with higher initial price. Senwang offers a range of standard designs while special designs can also be made to order.
We generally use ceramic guide pins as a welding nut positioning pin, but because of the toughness of ceramics is poor, fragile, so now KCF guide pin instead of ceramic is more and more popular.
2 . KCF Guide Pin Technical Specification
Pin Material: KCF,AL2O3,ZrO2,Si3N4,Ceramic,Stainless Steel etc.
KCF Pins Diameter:M4,M5,M6,M8,M10,M12…
Application: KCF guide pins are widely used on projection welding,nut welding,stud welding
3 . Advantages:
▲high temperature strength
▲ superior thermal shock resistance
▲ excellent wear resistance
▲ mechanical fatigue and creep resistance
▲ Excellent non-wetting property with good oxidation resistance
▲ It is convenient to process the rod shape, and the period will be shorter
4 . KCF standard pin
| A | B | C | D | E | F | G | L | Q | R | |
| KCF-M4-(B) | 3.2 | 4～7 | 10 | 5 | 2 | 22 | 4 | 31 | 2.5 | 9 |
| KCF-M5-(B) | 4.1 | 5～8 | 10 | 6 | 2.5 | 22 | 4 | 32 | 3 | 13.3 |
| KCF-M6-(B) | 4.9 | 6～9 | 10 | 7 | 2.5 | 22 | 3 | 32 | 3.5 | 15.5 |
| KCF-M8-(B) | 6.8 | 8～11 | 12 | 8 | 3 | 23 | 3 | 34 | 5 | 17.5 |
| KCF-M10-(B) | 8.5 | 10～13 | 15 | 10 | 3.5 | 24 | 3 | 37 | 7 | 30.5 |
| KCF-M7/16-(B) | 9.7 | 11～14 | 16 | 12 | 4 | 24 | 3 | 39 | 8 | 37.5 |
| KCF-12-(B) | 10.4 | 12～15 | 16 | 12 | 4 | 24 | 3 | 39 | 9 | 41 |

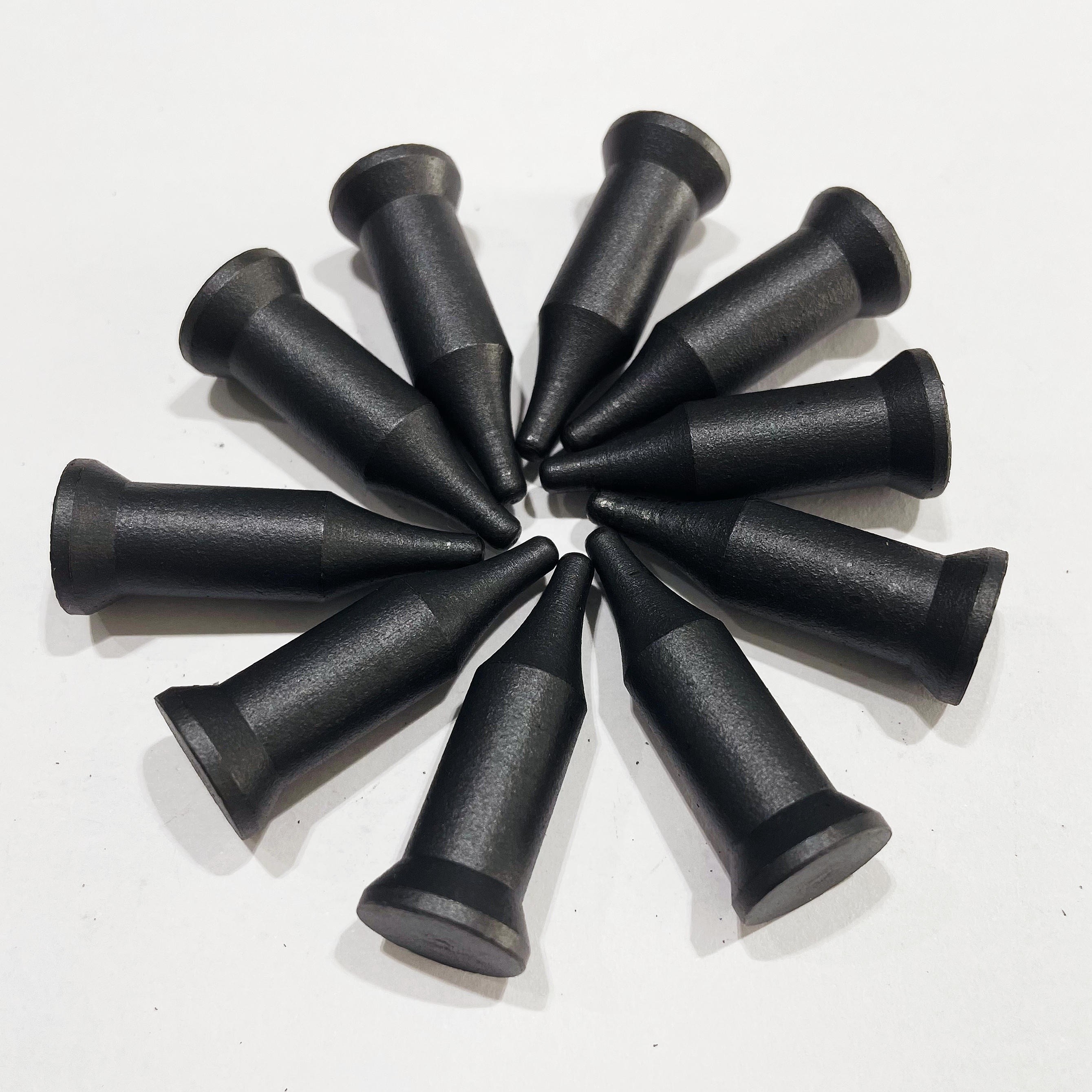

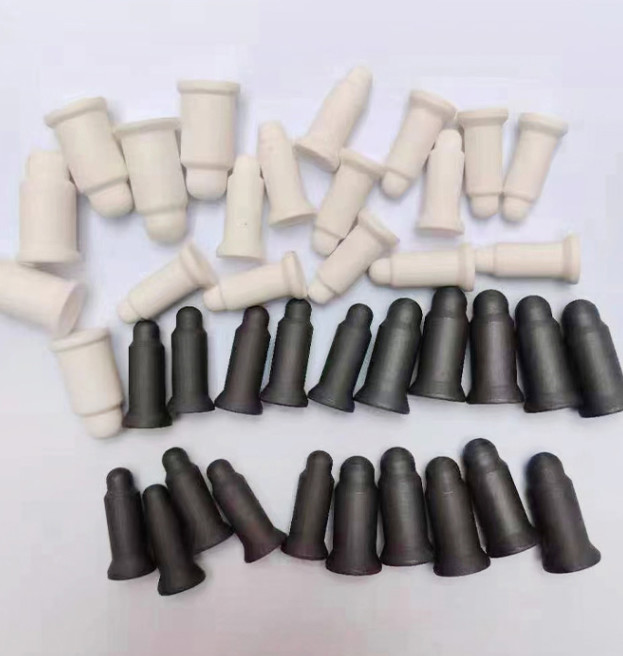

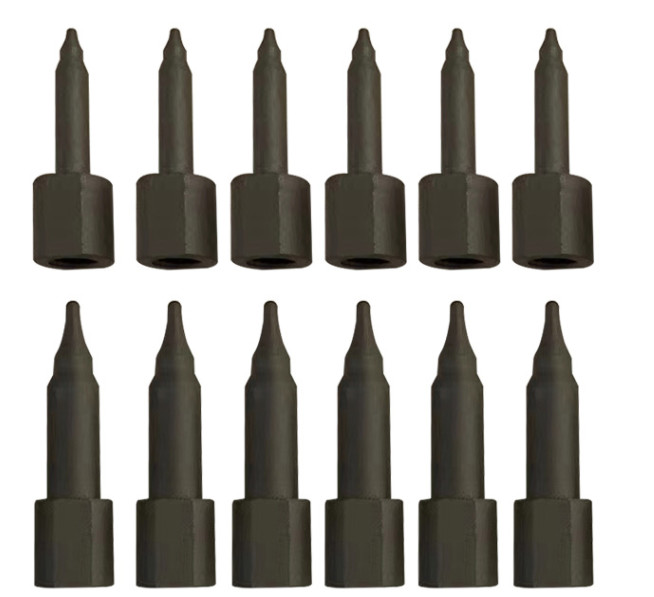

5 . More pictures
Contact Person: Kitty
Tel: +8613914912658
