Insulation KCF Guide Pins Which Used For Spot Welding

Insulation KCF Guide Pins Which Used For Spot Welding

Insulation KCF Guide Pins Which Used For Spot Welding
Insulation KCF Guide Pins Which Used For Spot Welding
Insulation KCF Guide Pins Which Used For Spot Welding
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: BLM-kcf-1
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: FobShanghai usd 3.5-5/pc
Packaging Details: packed and labeled according to the regulations and customer's requests.Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.
Delivery Time: 25-30 days subject to the clients' requirement and quantity
Payment Terms: Western Union, L/C, T/T
Supply Ability: 3000 pc/pcs per Month
Contact Now
Detailed Product Description
Size: Standard Or Customization Place Of Origin: Jiangsu, China (Mainland)
Type: Kcf Pin Application: Resistance Welding
Delivery: 7-10 Days Subject To The Clients' Requirements And Quantity Price Term: Ex-Work,FOB,CNF,CFR,CIF,FCA,DDP,DDU
High Light:

Insulation KCF Guide Pins


Customization KCF Guide Pins


Spot Welding KCF Guide Pins

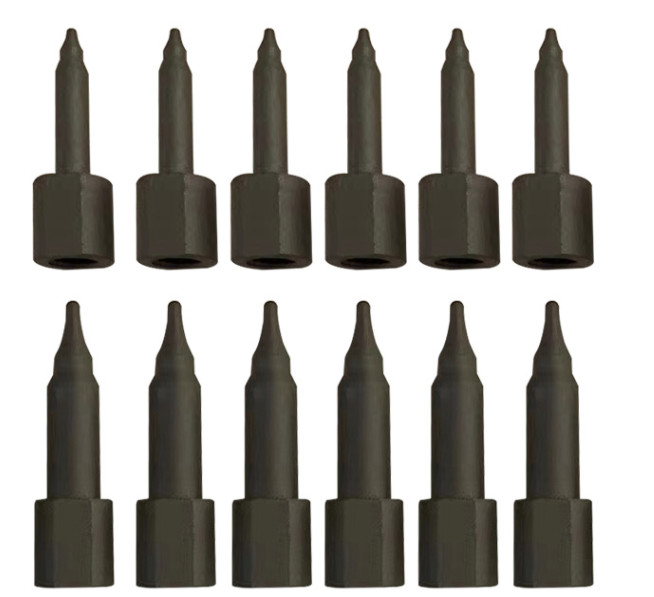

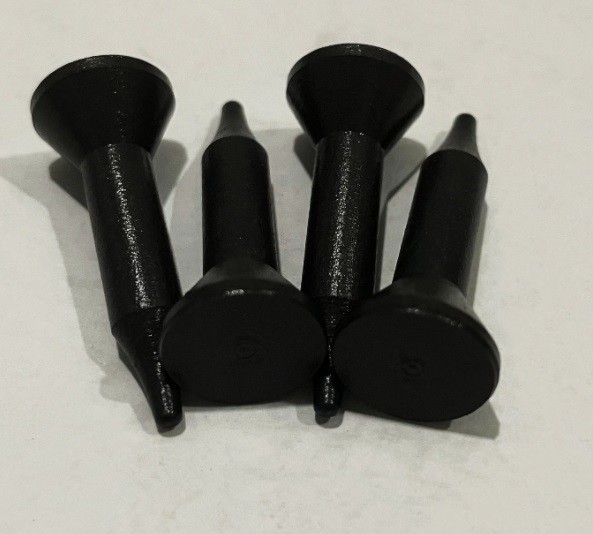

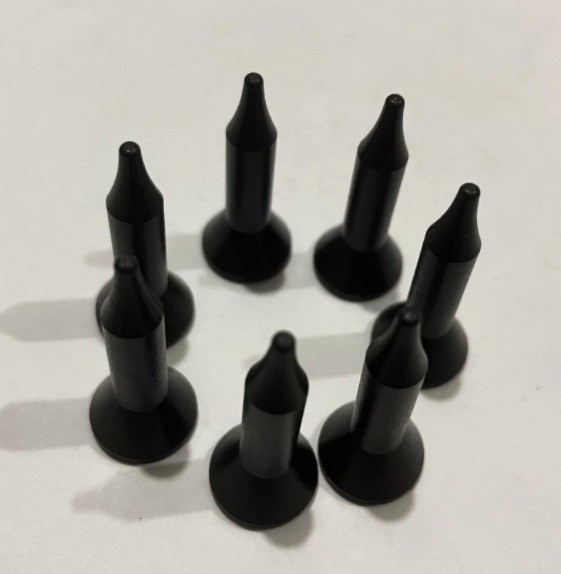

                                         Insulation KCF Guide Pins Which Used For Spot Welding


1 . Descriptions:

Bloom Resistance Welding manufacture and supply various material guide sleeve,locating pin,KCF bushings,KCF sleeve.Our material include KCF alloy material,ceramic coated,Zirconia ceramic,Silicon nitride ceramic etc.To meet different clients' requirements.The standard size M4,M5,M6,M8,M10,M12,7/16 kcf sleeve are always in stock.Specifical specification can be customized according to your drawing.Welcome your enquiry!



Locator pin can be supplied in different materials: ceramic, KCF and stainless steel. KCF is a special heat treated alloy with a hard, insulating skin which lasts much longer than ceramic though with higher initial price. Senwang offers a range of standard designs while special designs can also be made to order.



We generally use ceramic guide pins as a welding nut positioning pin, but because of the toughness of ceramics is poor, fragile, so now KCF guide pin instead of ceramic is more and more popular.



2 . KCF Guide Pin Technical Specification


Pin Material: KCF,AL2O3,ZrO2,Si3N4,Ceramic,Stainless Steel etc.

KCF Pins Diameter:M4,M5,M6,M8,M10,M12…

Application: KCF guide pins are widely used on projection welding,nut welding,stud welding



3 . Advantages:


high temperature strength
▲ superior thermal shock resistance
▲ excellent wear resistance

▲ mechanical fatigue and creep resistance
▲ Excellent non-wetting property with good oxidation resistance

▲ It is convenient to process the rod shape, and the period will be shorter


4 . KCF standard pin


  A B C D E F G L Q R
KCF-M4-(B) 3.2 4~7 10 5 2 22 4 31 2.5 9
KCF-M5-(B) 4.1 5~8 10 6 2.5 22 4 32 3 13.3
KCF-M6-(B) 4.9 6~9 10 7 2.5 22 3 32 3.5 15.5
KCF-M8-(B) 6.8 8~11 12 8 3 23 3 34 5 17.5
KCF-M10-(B) 8.5 10~13 15 10 3.5 24 3 37 7 30.5
KCF-M7/16-(B) 9.7 11~14 16 12 4 24 3 39 8 37.5
KCF-12-(B) 10.4 12~15 16 12 4 24 3 39 9 41
