|Place of Origin:||Jiangsu, China (Mainland)|
|Model Number:||M10/M12 7/16|
|Minimum Order Quantity:||10pcs|
|Packaging Details:||packed and labeled according to the regulations and customer's requests.Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.|
|Delivery Time:||25-30 days subject to the clients' requirement and quantity|
|Payment Terms:||Western Union, L/C, T/T|
|Supply Ability:||3000 pc/pcs per Month|
|Size:||Standard Or Customization||Color:||Grey|
|Type:||Round Or Shape||Application:||Automotive Sheet Metal Welding|
|Delivery:||7-10 Days Subject To The Clients' Requirements And Quantity||Price Term:||Ex-Work,FOB,CNF,CFR,CIF,FCA,DDP,DDU|
|Usage:||Nut Welding / Projection Welding||Customized:||According To The Drawings|
|Material:||KCF Bar||Item Name:||Kcf Pin|
Nut Welding KCF Guide Pin,
KCF Guide Pin Round,
KCF Guide Pin Grey
High Quality Durable Using Various Guide Pin KCF Spot Nut KCF Pin Welding Electrodes KCF Pin
There are three types of locating pins, namely: KCF locating pins, silicon nitride locating pins, and ceramic locating pins. The following space will briefly introduce the next three positioning pins.
Normally we have the standard size fo M4/M5/M6/M8/M10 and we also accept the customized types.
You just need to share the drawings you want and we will quote for you.
We generally use ceramic guide pins as a welding nut positioning pin, but because of the toughness of ceramics is poor, fragile, so now KCF guide pin instead of ceramic is more and more popular.
KCF Guide Pins /Sleeve is not an insulation coating but a specially processed insulation material which does not peel.

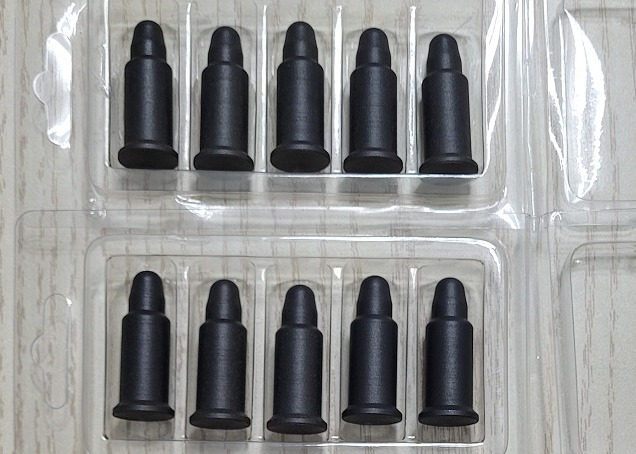

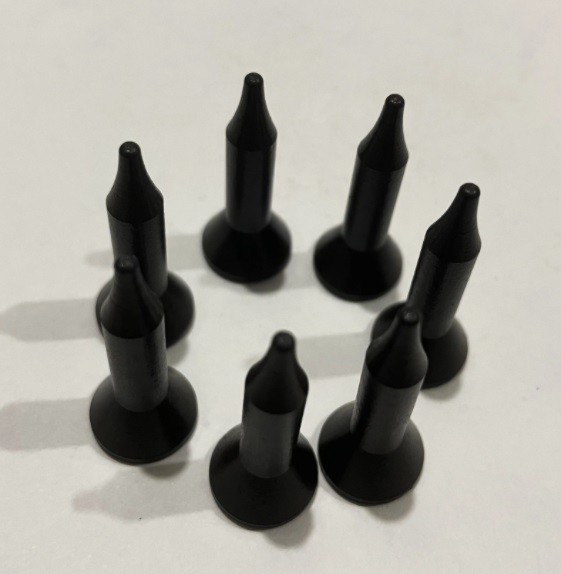

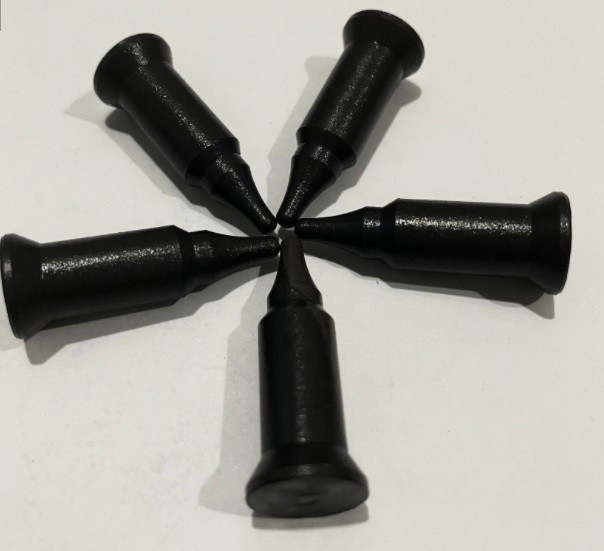

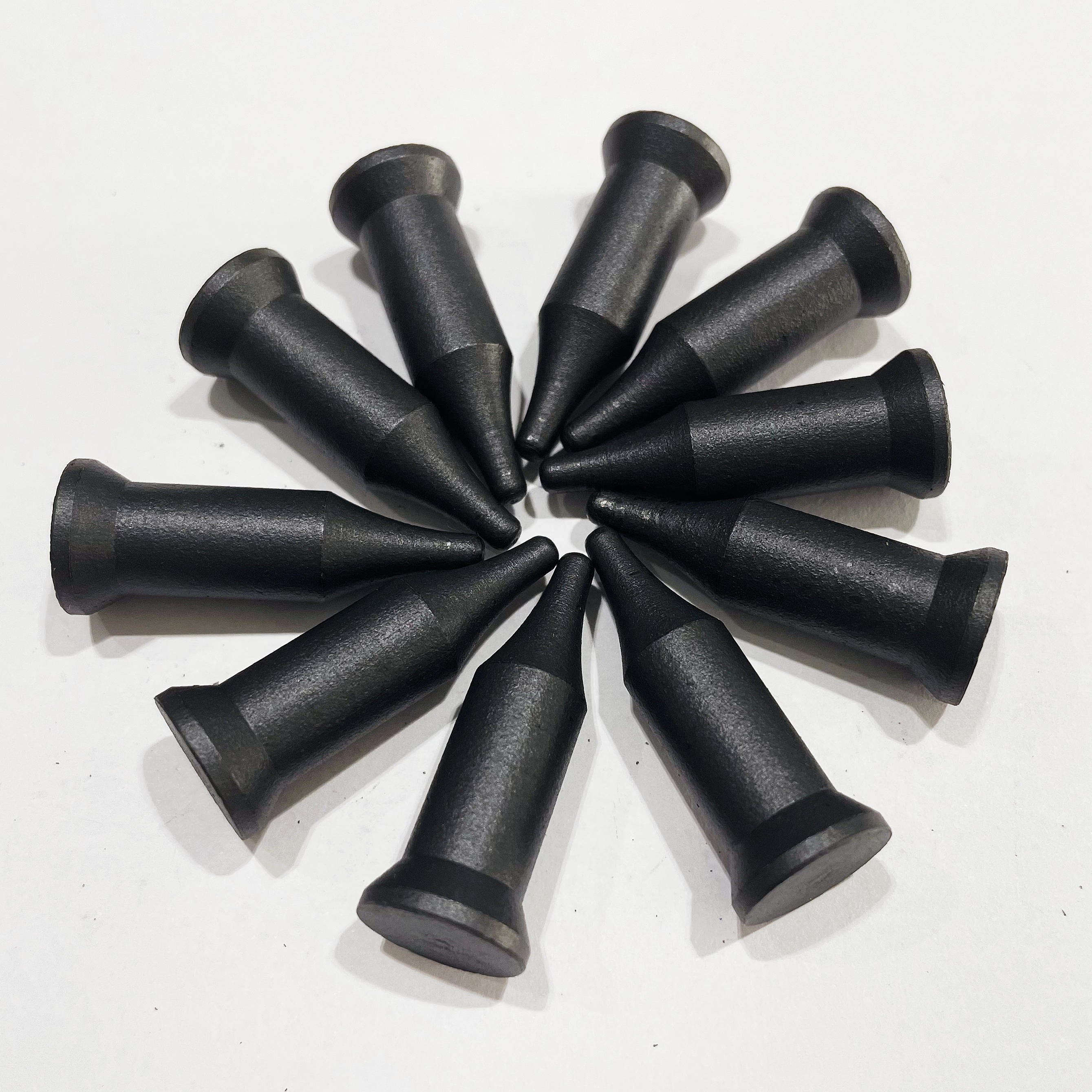

KCF positioning pins are mainly divided into two types: one is round and the other is pointed. Generally speaking, if manual placement is used, most of these round-head positioning pins are used; but if it is used by a feeder, pointed positioning pins are generally used, which not only has high stability, but also At the same time, the effect it brings is also better.
Silicon Nitride Pins
Silicon nitride positioning pins are made of superhard silicon nitride ceramic material. Its advantages are: wear resistance, high hardness, good insulation, non-stick welding slag, etc. The positioning pin is suitable for spot welding (projection welding machine), because if the insulating silicon nitride positioning pin is not used during welding, unnecessary current will pass through, causing sparks between the positioning pin and the workpiece , causing the positioning pin to be unable to be positioned due to wear, resulting in a decline in the quality and pass rate of the workpiece.
There are two types of ceramic positioning pins, namely alumina ceramic positioning pins and zirconia ceramic positioning pins. Alumina ceramic positioning pins have the advantages of high hardness, good wear resistance, and light weight; while zirconia ceramic positioning pins have the advantages of wear resistance, high temperature resistance, chemical corrosion resistance, and anti-magnetic properties.
