Place of Origin: | Jiangsu,China |
Brand Name: | Bloom |
Certification: | ISO 9001 |
Model Number: | BLM -1 |
Minimum Order Quantity: | 10pcs |
---|---|
Price: | Negetation |
Packaging Details: | Packing in wooden case |
Delivery Time: | 30 to 45 days |
Payment Terms: | T/T |
Supply Ability: | 1000pcs per month |
Material: | W6Mo5Cr4V2;WR5;WR13 Or Customized | Screw Type: | Double |
---|---|---|---|
Product Name: | Twin Screw Extruder Screw Element | Application: | Plastic Industry |
Surface Treatment: | Vacuum Quenching | Machine Type: | Plastic Wood Food Twin Extruder Machine |
High Light: | Plastic Extruder Double Screw Barrel,Rubber Extruder Double Screw Barrel,Double Screw Extruder Barrel |
Bimetallic Rubber Plastic Extruder Spare Parts Double Screw Barrel for Plastic Filler PP/PE/ PVC/Nylon Pelletizing Machine
1 . Description
Material |
|
Nitriding Hardness |
|
Nitriding Depth |
|
Quenching Hardness |
|
Nitrided Brittleness |
|
Surface Roughness |
|
Screw Straightness |
|
Chromium plating layer hardness after nitriding |
|
Chrome platethickness |
|
Alloy Depth |
|
Packing |
|
2 . Our strengths
Descriptions
Screw elements are the main working parts for twin screw extruder which determined the quality and output of plastic products.With high quality,the screw elements assure plastic molecular mixing,cutting,spreading as well as reacting among themselves etc.Extremely high self cleaning performance assure the high quality of the whole production line,for this,our company combiend our experience for years,the merits about foreign countries and the customer's use,then take them into action,designed all kinds of suitable processing screw element with reasonable parameters,high self cleaning performance,wear resistance,corrosion-resistance.
Bloom supplies cylinder barrel suitable for the following extruder products lines :
-APV -KOBE -OMC
-Buhler -KraussMaffei -Theysohn
-Buss -Berstorff- -Toshiba
-Clextral -Labtech -USEON
-Lantai - others
-JSW -Leistritz
-Keya -Maris
Size and capacity
Here is list of our general design data, which may be updated in some different circumstance.
Specification (d / D) | Working Length (mm) | Rotate Speed (rpm) | Capacity (kg/h) |
Φ35/75 | 810 | 5-50 | 40-70 |
Φ45/90 | 990 | 5-45 | 50-80 |
Φ45/100 | 990 | 5-45 | 60-90 |
Φ48/112 | 1104 | 4-45 | 70-100 |
Φ50/105 | 1045 | 4-45 | 100-150 |
Φ51/105 | 1220 | 4-45 | 100-150 |
Φ55/110 | 1220 | 4-40 | 120-180 |
Φ55/120 | 1230 | 4-40 | 130-180 |
Φ58/126 | 1320 | 4-40 | 140-200 |
Φ60/125 | 1320 | 4-40 | 150-200 |
Φ65/120 | 1440 | 4-40 | 200-250 |
Φ65/132 | 1440 | 4-40 | 200-250 |
Φ68/146 | 1550 | 4-40 | 220-300 |
Φ80/143 | 1800 | 4-35 | 300-360 |
Φ80/156 | 1800 | 4-35 | 300-360 |
Φ92/188 | 2000 | 3-35 | 400-500 |
Types of Barrels
Standard for classification: Design geometry Standard for classification: With inner or not
* Feeding barrel * Solid barrel
* Closed barrel * Barrels with inners
* Vent barrel
* Combi barrel
* Extended degassing barrel
* Combi barrel with backward venting
We offer a broader choice of materials:
Solid barrels
*Nitrided steel barrels *Tooling steel barrels *Bimetallic
Barrel with installed inner
* made of PM-HIP solid *WR13
By working closely with customers in choosing optional materials,we can minimize wear and tear and associated costs

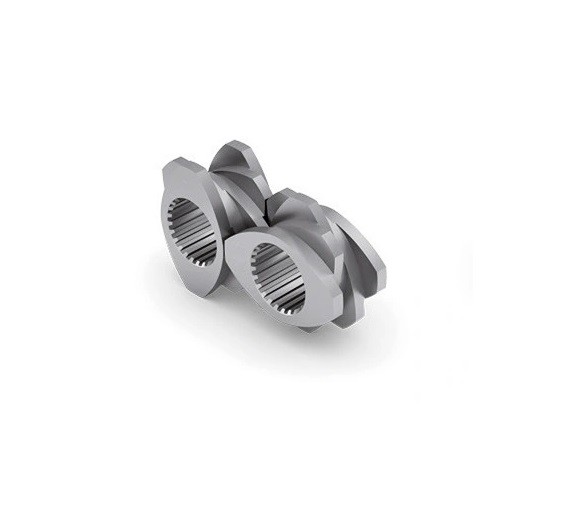

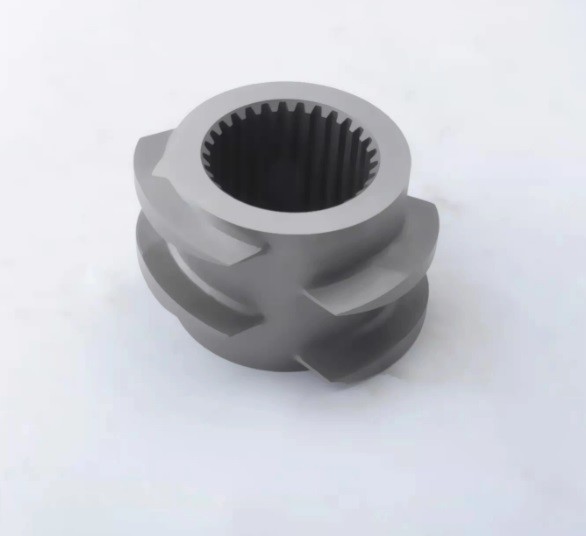

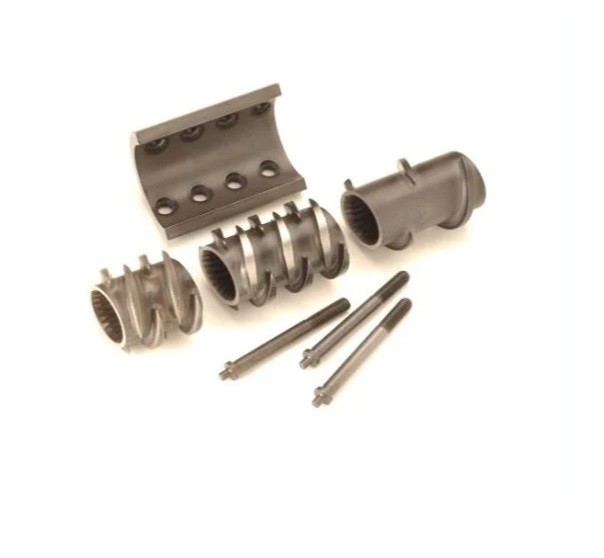

3. Pictures
