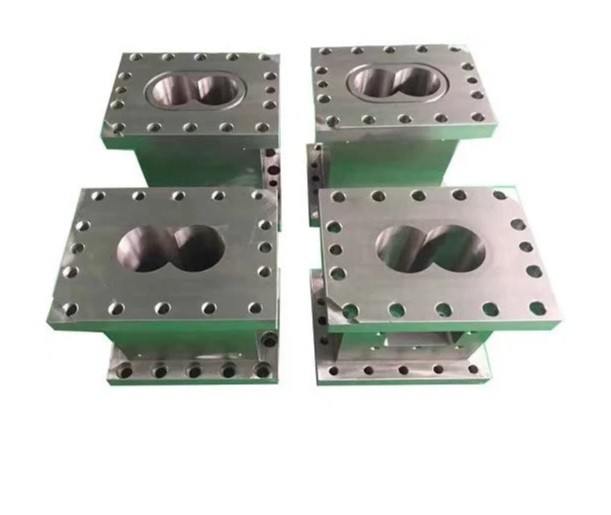

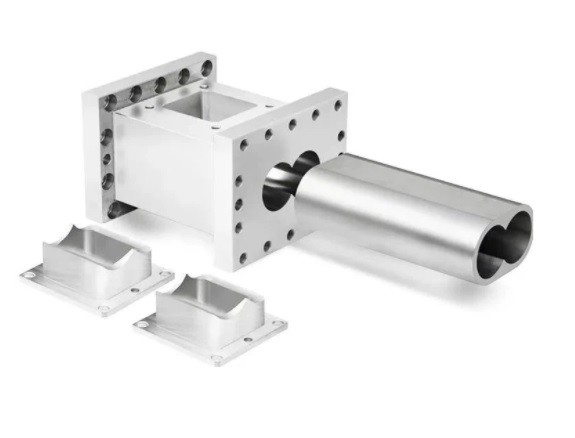

Twin Screw Extruder Parts Bimetallic Barrel Wood Plastic Composite Pellet

Twin Screw Extruder Parts Bimetallic Barrel Wood Plastic Composite Pellet

Twin Screw Extruder Parts Bimetallic Barrel Wood Plastic Composite Pellet
Twin Screw Extruder Parts Bimetallic Barrel Wood Plastic Composite Pellet
Twin Screw Extruder Parts Bimetallic Barrel Wood Plastic Composite Pellet
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: BLM-IV-1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: packed and labeled according to the regulations and customer's requests.Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.
Delivery Time: 25-30 days subject to the clients' requirement and quantity
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000 per Month
Contact Now
Detailed Product Description
Place Of Origin: Jiangsu,China Material: 316L/X260/W6Mo5Cr4V2 Or Customized
Spare Parts Type: Spare Parts For Twin Screw Exruder Application: Machinery Repair Shops,Food An Beverage Factory
Center Distance: 26mm Screw Distance: 30mm
Dimension(LxWxH): 120x135x115mm After Warranty Service: Video Technical Support,online Support
High Light:

Twin Screw Extruder Bimetallic Barrel

,

Twin Screw Bimetallic Barrel

,

Twin Screw Extruder Parts Bimetallic Barrel

Competitive Price Wood Plastic Composite Pellet Extruder Bimetallic Twin Screw Barrel



1 .  Description

 We manufacture screw shafts for co-rotating twin screw extruders ranging from 10 mm to 120 mm and over. Our manufacturing specializes in shafts for twin screw extruders and is optimized for flexible order handling.



2 . Co-rotating twin screw shafts for
-APV -KOBE -OMC
-Buhler -KraussMaffei -Theysohn
-Buss -Berstorff- -Toshiba
-Clextral -Labtech -USEON
-Lantai - others
-JSW -Leistritz
-Keya -Maris





Our Main Materials and Their Application:



For Wear Application:

Tool Steel: W6Mo5Cr4V2

PM-HIP Materials: SAM10, SAM26, SAM39, CPM10V, CPM9V



For Corrosion Application:

Nitrided Steel: 38CrMoAlA

PM-HIP Materials: SAM26, SAM39, CPM10V, CPM9V



For Wear & Corrosion Application:

PM-HIP Materials: SAM26, SAM39, CPM10V, CPM9V

Other Materials: 316L HC276 etc.





Standard Barrel Parameter Table (selection table)

Model

Size(mm)

W*H*L

Hole Diameter(mm)

Distance(mm)

BM-20

115*105*132

φ23

18.4

BM-30

135*115*120

φ30.6

26

BM-35

140*120*140

φ36

30

BM-36

160*140*150

φ36

30

BM-40

175*145*160

φ41.6

34.5

BM-50

190*150*190

φ51

42

BM-52

200*155*210

φ52

43

BM-53

210*160*220

φ53.3

48

BM-58

220*175*240

φ58

48

BM-60

210*170*240

φ60

52

BM-65

210*170*240

φ63

52

BM-75

260*200*290

φ71.8

60

BM-85

280*215*320

φ81.9

67.8

BM-92

310*240*360

φ92

78

BM-95

310*240*360

φ94

78

BM-110

330*240*420

φ109

91.5

BM-125

390*290*500

φ125

98

BM-135

370*300*410

φ134

110





3 . Types of shaft
* Single Keyway * Square Keyslot *High torque key button * Dual keyslot
* Involute inner spline * Round keyslot *Retackle spline * Client's requirements available

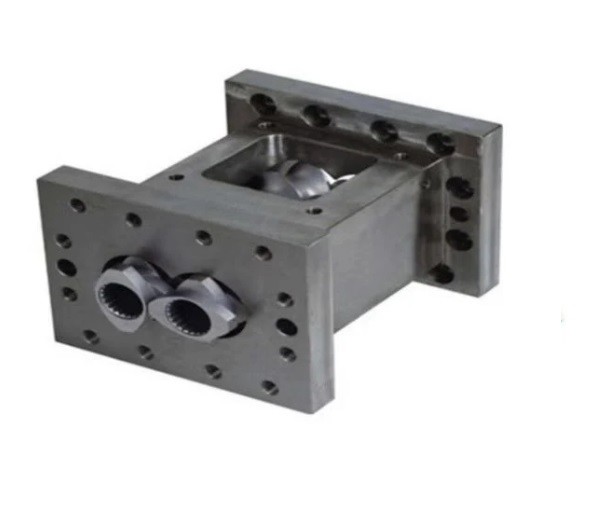

Twin Screw Extruder Parts Bimetallic Barrel Wood Plastic Composite Pellet 0



4 . We offer a broader choice of materials:
* 40CrNiMo * WR15E * WR30
By working closely with customers in choosing optional materials,we can minimize wear and tear and associated costs.





5 . Our machine types:

Co-rotating parallel twin screw pelletizing extruders

Single screw pelletizing extruders

Die face cut (air cooling) pelletizing extruders

Double stage / double degassing recycling extruders

Crushers,mixers,storage tanke,vibrators,granulators,blowers

Extruder spare parts



6 . Pictures:

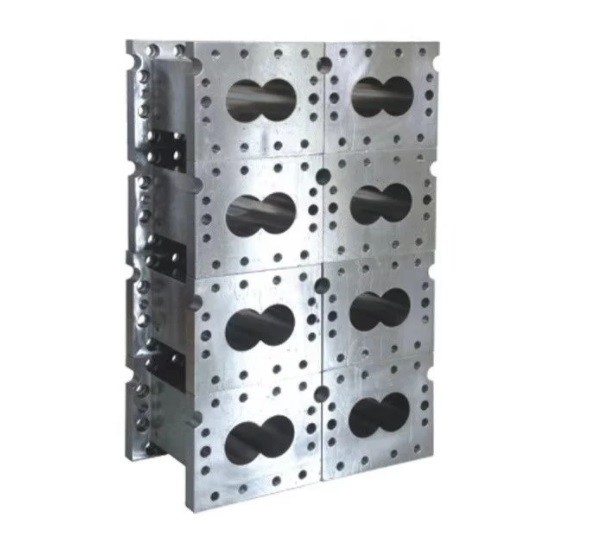

Twin Screw Extruder Parts Bimetallic Barrel Wood Plastic Composite Pellet 1

Twin Screw Extruder Parts Bimetallic Barrel Wood Plastic Composite Pellet 2
