| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | BLM-IV-1 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packed and labeled according to the regulations and customer's requests.Great care is taken to avoid any damage which might otherwise be caused during storage or transportation. |
| Delivery Time: | 25-30 days subject to the clients' requirement and quantity |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 1000 per Month |
| Assembly Structure: | Separate Type Extruder | Engagement System: | Full Intermeshing |
|---|---|---|---|
| Screw Channel Structure: | Deep Screw | Diameter: | 12-350mm |
| Screw Design: | Parallel Twin Screw | Application: | Materbatch,Plastic,Food,Chemical |
| Screw: | Twin Screw | Trademark: | Wood Package |
| High Light: | 12mm Twin Screw Extruder Barrel,350mm Twin Screw Extruder Barrel,Food Extruder Twin Screw Barrel |
||

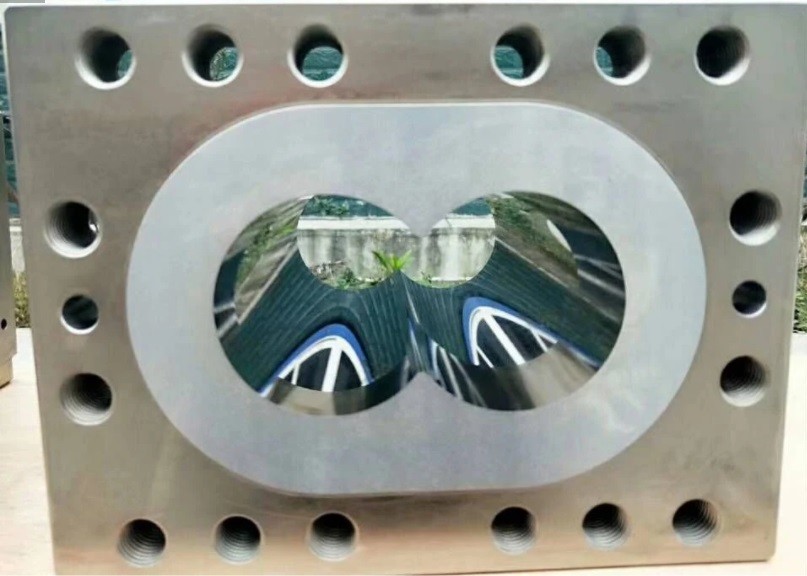

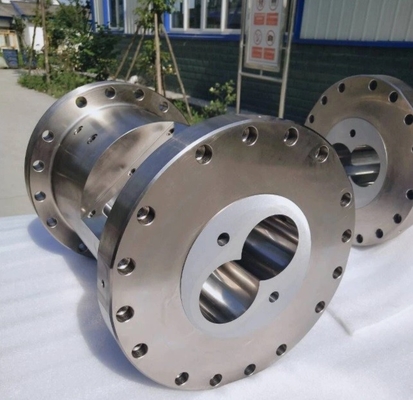

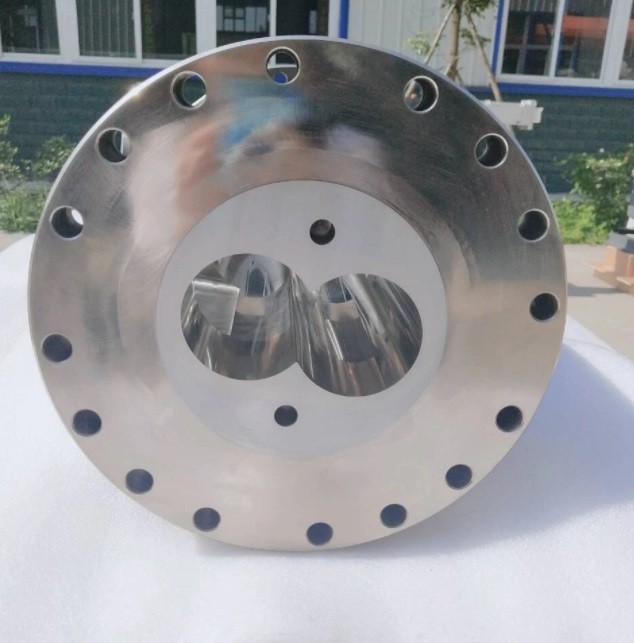

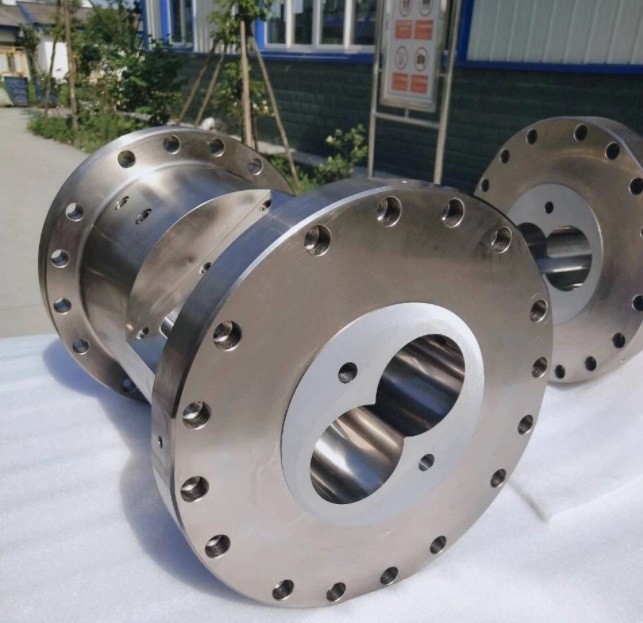

Twin Screw Extruder Barrel for Food Extruder machinery Spare Parts
Descriptions
Material of Screw and Barrel:
| Raw Material | The Finished Product Processing Requirements |
| 38CrMoAlA, SACM645, 42CrMo | Nitriding Treatment |
| 42CrMo, AISI 4140 | Chrome Plating Hardness Layer |
| 4Cr5MoSiV1, SKD-61, SKD-11 | Spraying Bimetal Alloy Layer And Nitriding Treatment |
| HPM38, SI36, SUS440, 9Cr18MoV | Stainless Steel(Iron), High Frequency Quenching |
| GHII3 | Nature Harden After High Temperature |
Standard screw elements and barrels
Twin screw barrel is gradually adopted by many manufacturers because of its high efficiency. Compared with single screw barrel, twin screw barrel has higher requirements for machining clearance. Our company has a professional team to help users solve design problems, and can also process according to the samples or drawings provided by customers.
injection screw barrel and bimetallic injection screw and barrel by materials 38CrMoAlA or 42CrMo and so on,for many type of injection mould machines,such as HAITIAN,CHEN HSONG,JSW,HAITAI,BRCHO,and so on.
1. Diameter of screw: D12-D300mm
2. L/D ratio of screw: 10 - 26
Grade available:
1. Standard grade: 38CrMoAlA + nitriding 96 hours
2. Bimetallic grade: 38CrMoAlA + bimetallic alloy
3. TC-A grade: Tungsten carbide 35%
4. TC-B grade: Tungsten carbide 25%
5. TC-C grade: Tungsten carbide 15%
Injection screw barrel and bimetallic injection screw and barrel
1)38CrMoALA(JIS SACM645)
2)42CrMo(JIS SCM440)
3)9Cr18MoV
4)CW6Mo5Cr4V2
5)Various high quality alloy steels,According to different usage, the choose for alloy is different, some require for abrasion-resistant while some require for corrsion-resistant. For standard, we have Fe-based, Ni-based,W2Calloy,Tunsten alloy etc for choice.
Application:
Rubber,various high glass fiber, mineral fiber and PPA,PPS, PA66, LCP,VO fire protection, ferrous power, magnetic powder and etc.
Treatment:
Heat-treatment
Nitriding treatment
Electroplate hard-chrome
High-frequency quenching
Spraying corrosion wear-resisting dual metal layers
Vacuum quenching
Bloom supplies cylinder barrel suitable for the following extruder products lines :
-APV -KOBE -OMC
-Buhler -KraussMaffei -Theysohn
-Buss -Berstorff- -Toshiba
-Clextral -Labtech -USEON
-Lantai - others
-JSW -Leistritz
-Keya -Maris
Size and capacity
Here is list of our general design data, which may be updated in some different circumstance.
|
Specification (d / D) |
Working Length (mm) |
Rotate Speed (rpm) |
Capacity (kg/h) |
|
Φ35/75 |
810 |
5-50 |
40-70 |
|
Φ45/90 |
990 |
5-45 |
50-80 |
|
Φ45/100 |
990 |
5-45 |
60-90 |
|
Φ48/112 |
1104 |
4-45 |
70-100 |
|
Φ50/105 |
1045 |
4-45 |
100-150 |
|
Φ51/105 |
1220 |
4-45 |
100-150 |
|
Φ55/110 |
1220 |
4-40 |
120-180 |
|
Φ55/120 |
1230 |
4-40 |
130-180 |
|
Φ58/126 |
1320 |
4-40 |
140-200 |
|
Φ60/125 |
1320 |
4-40 |
150-200 |
|
Φ65/120 |
1440 |
4-40 |
200-250 |
|
Φ65/132 |
1440 |
4-40 |
200-250 |
|
Φ68/146 |
1550 |
4-40 |
220-300 |
|
Φ80/143 |
1800 |
4-35 |
300-360 |
|
Φ80/156 |
1800 |
4-35 |
300-360 |
|
Φ92/188 |
2000 |
3-35 |
400-500 |
Types of Barrels
Standard for classification: Design geometry Standard for classification: With inner or not
* Feeding barrel * Solid barrel
* Closed barrel * Barrels with inners
* Vent barrel
* Combi barrel
* Extended degassing barrel
* Combi barrel with backward venting
We offer a broader choice of materials:
Solid barrels
*Nitrided steel barrels *Tooling steel barrels *Bimetallic
Barrel with installed inner
* made of PM-HIP solid *WR13
By working closely with customers in choosing optional materials,we can minimize wear and tear and associated costs.
