BLOOM(SUZHOU) MATERIALS CO.,LTD
Attitude Is Everything.Details Determine Success or Failure.

|
| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | BLM-IV-1 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packed and labeled according to the regulations and customer's requests.Great care is taken to avoid any damage which might otherwise be caused during storage or transportation. |
| Delivery Time: | 25-30 days subject to the clients' requirement and quantity |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 1000 per Month |
| Assembly Structure: | Separate Type Extruder | Engagement System: | Full Intermeshing |
|---|---|---|---|
| Screw Channel Structure: | Deep Screw | Diameter: | 12-350mm |
| Screw Design: | Parallel Twin Screw | Application: | Materbatch,Plastic,Food,Chemical |
| Screw: | Twin Screw | Trademark: | Wood Package |
| High Light: | 92/188 Conical Twin Screw Barrel,High Output Conical Screw Barrel,Full Intermeshing Conical Screw Barrel |
||

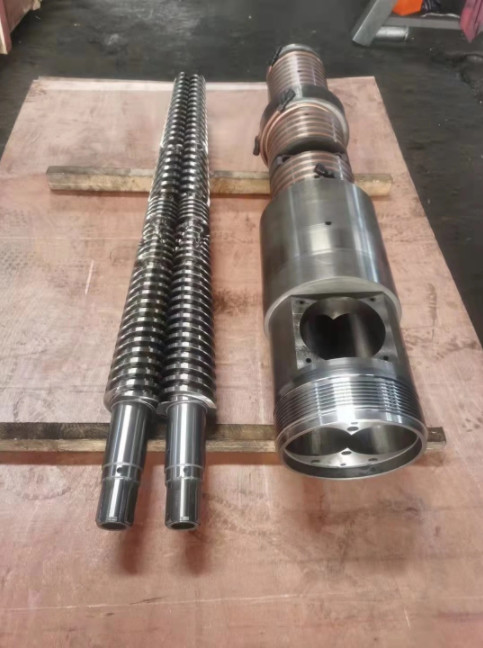

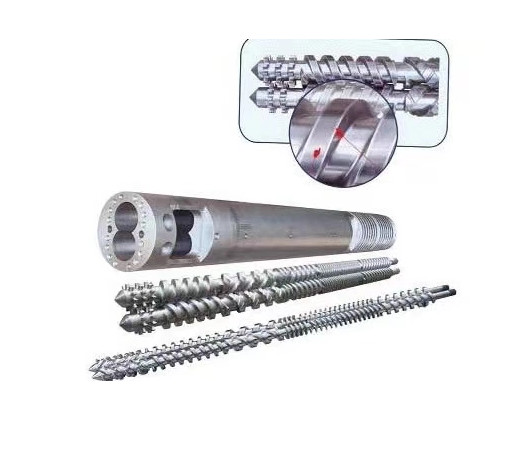

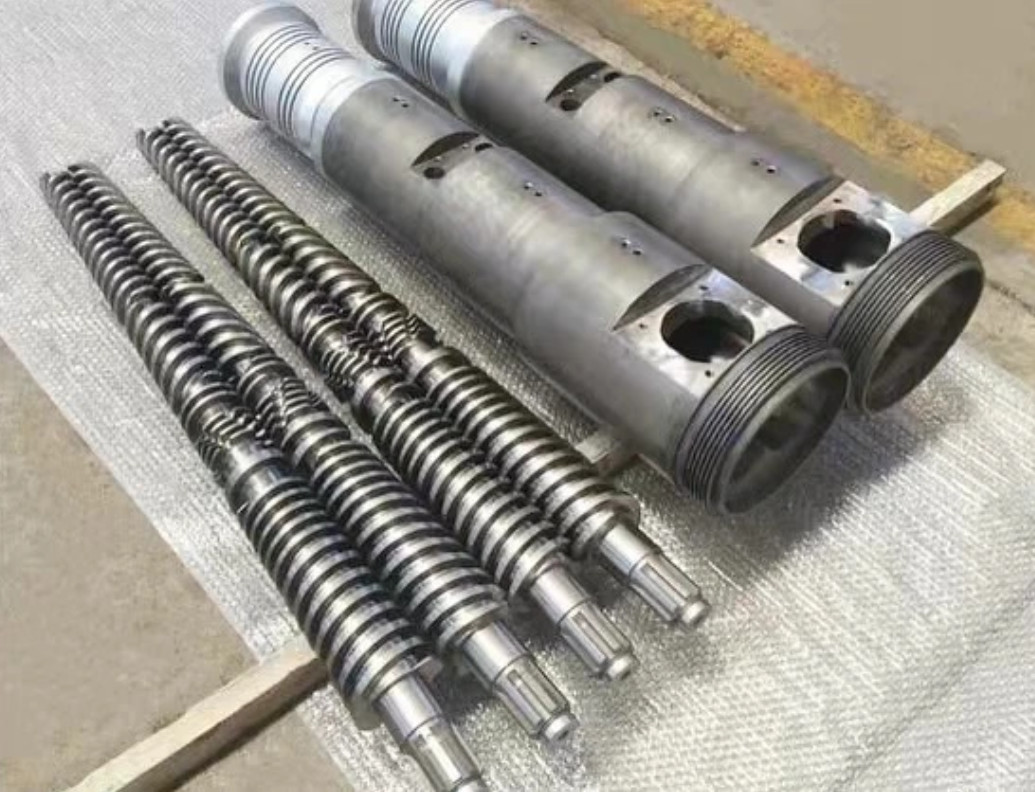

92/188 High Output Twin Conical Screw Barrel for Extruder Spare Parts
Descriptions
Twin screw barrel is gradually adopted by many manufacturers because of its high efficiency. Compared with single screw barrel, twin screw barrel has higher requirements for machining clearance. Our company has a professional team to help users solve design problems, and can also process according to the samples or drawings provided by customers.
Bloom supplies cylinder barrel suitable for the following extruder products lines :
-APV -KOBE -OMC
-Buhler -KraussMaffei -Theysohn
-Buss -Berstorff- -Toshiba
-Clextral -Labtech -USEON
-Lantai - others
-JSW -Leistritz
-Keya -Maris
Size and capacity
Here is list of our general design data, which may be updated in some different circumstance.
|
Conical Screw Barrel Nominal Size Selection (Ref.) |
||||
|
Model |
Power (KW) |
Speed (RPM) |
Output (KG/H) |
Appliance |
|
35/75 |
12 |
5-50 |
40-70 |
PVC Pipe |
|
45/90 |
15 |
5-45 |
50-80 |
|
|
45/100 |
15 |
5-45 |
60-90 |
|
|
48/112 |
18.5 |
5-45 |
70-100 |
|
|
51/105 |
18.5 |
4-40 |
100-150 |
|
|
55/110 |
22 |
4-40 |
120-180 |
|
|
55/120 |
22 |
4-40 |
130-180 |
|
|
60/125 |
25 |
4-40 |
150-200 |
|
|
65/132 |
30 |
4-40 |
200-300 |
|
|
68/146 |
35 |
4-40 |
220-300 |
|
|
80/143 |
55 |
4-35 |
350-450 |
|
|
80/156 |
55 |
4-35 |
350-450 |
|
|
92/188 |
110 |
4-35 |
650-900 |
|
|
110/220 |
160 |
43951 |
950-1400 |
|
Types of Barrels
Standard for classification: Design geometry Standard for classification: With inner or not
* Feeding barrel * Solid barrel
* Closed barrel * Barrels with inners
* Vent barrel
* Combi barrel
* Extended degassing barrel
* Combi barrel with backward venting
We offer a broader choice of materials:
Solid barrels
*Nitrided steel barrels *Tooling steel barrels *Bimetallic
Barrel with installed inner
* made of PM-HIP solid *WR13
By working closely with customers in choosing optional materials,we can minimize wear and tear and associated costs.
All kinds of SJZ and SJP extruders that our company designs especially for producing the PVC pipe and profile, our extruders can promise a good plasticization, high capacity and advanced electric control, and the electrical cabinet can be chosen by customer according to their own demands.
Contact Person: Miranda
Tel: +8615250395817
