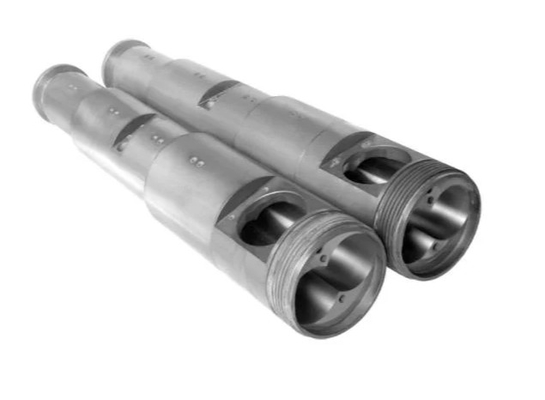

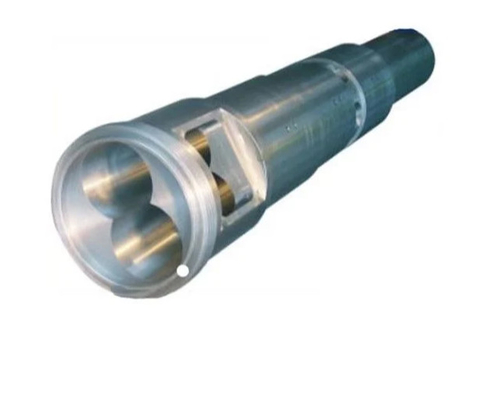

51/105 55/110 65/132 80/156 92/188 Bimetallic Conical Twin Screw Barrel for PVC/WPC/Spc/Lvt Extruder Making Machine
Descriptions
Twin screw barrel is gradually adopted by many manufacturers because of its high efficiency. Compared with single screw barrel, twin screw barrel has higher requirements for machining clearance. Our company has a professional team to help users solve design problems, and can also process according to the samples or drawings provided by customers.
Bloom supplies cylinder barrel suitable for the following extruder products lines :
-APV -KOBE -OMC
-Buhler -KraussMaffei -Theysohn
-Buss -Berstorff- -Toshiba
-Clextral -Labtech -USEON
-Lantai - others
-JSW -Leistritz
-Keya -Maris
Size and capacity
Here is list of our general design data, which may be updated in some different circumstance.
Specification (d / D) |
Working Length (mm) |
Rotate Speed (rpm) |
Capacity (kg/h) |
Φ35/75 |
810 |
5-50 |
40-70 |
Φ45/90 |
990 |
5-45 |
50-80 |
Φ45/100 |
990 |
5-45 |
60-90 |
Φ48/112 |
1104 |
4-45 |
70-100 |
Φ50/105 |
1045 |
4-45 |
100-150 |
Φ51/105 |
1220 |
4-45 |
100-150 |
Φ55/110 |
1220 |
4-40 |
120-180 |
Φ55/120 |
1230 |
4-40 |
130-180 |
Φ58/126 |
1320 |
4-40 |
140-200 |
Φ60/125 |
1320 |
4-40 |
150-200 |
Φ65/120 |
1440 |
4-40 |
200-250 |
Φ65/132 |
1440 |
4-40 |
200-250 |
Φ68/146 |
1550 |
4-40 |
220-300 |
Φ80/143 |
1800 |
4-35 |
300-360 |
Φ80/156 |
1800 |
4-35 |
300-360 |
Φ92/188 |
2000 |
3-35 |
400-500 |
Types of Barrels
Standard for classification: Design geometry Standard for classification: With inner or not
* Feeding barrel * Solid barrel
* Closed barrel * Barrels with inners
* Vent barrel
* Combi barrel
* Extended degassing barrel
* Combi barrel with backward venting
We offer a broader choice of materials:
Solid barrels
*Nitrided steel barrels *Tooling steel barrels *Bimetallic
Barrel with installed inner
* made of PM-HIP solid *WR13
By working closely with customers in choosing optional materials,we can minimize wear and tear and associated costs.
