Plastic Machine Precise Foundation Fasteners Screws 20Mm

Plastic Machine Precise Foundation Fasteners Screws 20Mm

Plastic Machine Precise Foundation Fasteners Screws 20Mm
Plastic Machine Precise Foundation Fasteners Screws 20Mm
Plastic Machine Precise Foundation Fasteners Screws 20Mm
Product Details:
Place of Origin: Jiangsu,China
Brand Name: Bloom
Certification: ISO 9001
Model Number: BLM
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negetation
Packaging Details: Packing in wooden case
Delivery Time: 30 to 45 days
Payment Terms: T/T
Supply Ability: 1000mm/month
Contact Now
Detailed Product Description
Material: 38CrMoAlA,42CrMo,9Cr18MoV Application Field: Household,Agriculture,Industry,Building,Auto Parts
Applied Polymers: PE,PA,PET,PVC,PC,ABS,PBT,PEEK,Teflon Screw Treatment: Nitrided,Bimetallic,PTA,HOVF,Tool Steel,HSS,PM Steel
Reinforced Additives: Less Than 65% Glass Fibre Hardness: 58-64HRC
High Light:

Alloy Materials Foundation Screws


Precise Foundation Screws


20Mm Foundation Screws

20Mm Plastic Machine Precise Special Product Foundation Fasteners Screws Manufacturer



1 . Description

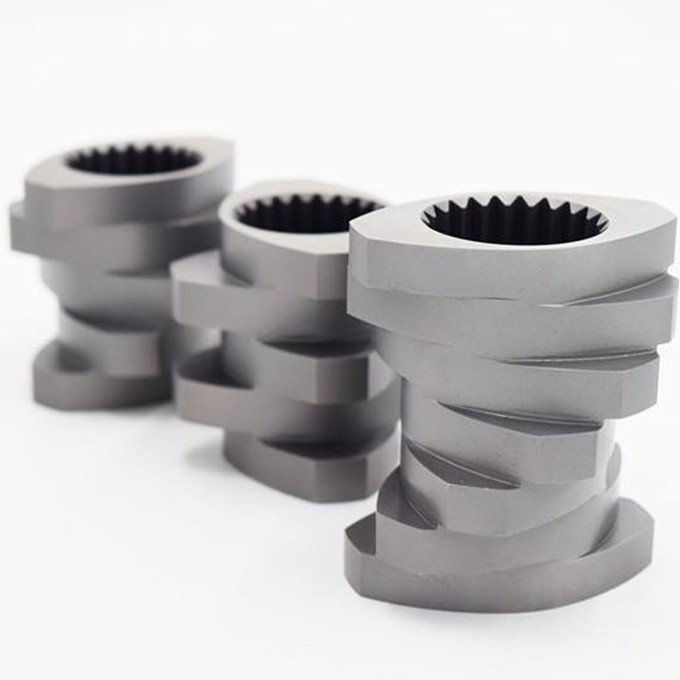

Screw element type for each function: Feeding, Melting, Mixing, Venting, Pressurization
Screw Configuration
means a structure composed of different combinations to achieve the desired performance,such as disperse, shear effect, solving the requirements of mixed materials as well as the production stability.
Depending on the nature of work being carried out,there are Intake Zone,Conveying Zone,Melting Zone, Natural Venting Zone,Mixing Zone,Vacuum Venting Zone and Metering Zone.
Different screw elements own different features in different extrusion process,we should choose and design the right screw elements based on different extrusion status in order to optimize the overall comprehensive performance in the extrusion process.


Plastic Machine Precise Foundation Fasteners Screws 20Mm 0




2 . Technical Parameter

Base Material 1)38CrMoAlA(JIS SACM645);2)Cr12MOV(JISSKD-11) ;
3)4Cr5MoSiV1(JIS SKD-61) ;4)42CrMo(AISI4140)
Bimetallic Alloy Materials 1)Fe-based alloy2)Ni-based alloy/Deloroalloy
3)Co-based alloy4)NiCo-based alloy
5)Tungsten carbide/Wolframcarbide
Double-alloylevel Level A - containing Tungsten of40%
Level B - containing tungsten of 25%
Level C - containing tungsten of15%
Surface Treatment Heat Treatment
High FrequencyTreatment
Nitriding treatment(120Hours):
Depth of Nitrided Layer: 0.5-0.8mm
Hardness of Nitrided Layer: 900-1020Hv(HRC56°-65°)
HardChrome Plating treatment:
Thickness of Hard Chrome Plating Layer:0.05-0.10mm
Hardness ofHard Chrome Plating Layer: ≥950HV
Nickel alloyplating.treatment:
Bimetallic barrel / Cylinder: Centrifugal Casting(Inlay Alloy)
BimetallicScrew: Plasma Alloy Coating Spraying
Depth of Bimetallic Layer: >2mm
Hardness of Bimetallic Layer: HRC55°-72°
Spraying corrosion wear-resisting dual metallayers



3 . Comparsion of the output (LDPE)

Pressure is generated if resin passes over the barrier, forcing any air in the melted resin back to the feed side and effectively preventing the intrusion of air bubbles on the sub flight side. This is highly effective with resins that generate bubbles such as PS, PA, PET and EVOH.


Plastic Machine Precise Foundation Fasteners Screws 20Mm 1




4 . Parallel twin screw and barrel application




Intake &Conveying Zone

For feeding and conveying the raw materials to the extruder

Melting Zone

For heating the material to make some or all materials melt

Natural Venting Zone

For removing the volatile matter and moisture

Mixing Zone

For mixing the materials fully

Vacuum Venting Zone

For completely ruling out the volatiles and water to reach the desired state

Metering Zone

Metering Zone



Plastic Machine Precise Foundation Fasteners Screws 20Mm 2

Bimetallic Treatment of Screw

The bimetallic screw for extruder twin screw is a kind of screw spray welding a 2~3mm-thick alloy coat on the screw flight of output area for the screw . The Bimetallic treatment has excellent corrosion resistance, abrasion resistance and high working temperature. And its useful service life is greatly improved contrast to the common nitrided screw.



5 . As per customer's demand,we can also supply below:
PVC/PE Film Blowing Screw;

Blow Molding Screw;

PS/PE/PP/ABS Sheet Extrusion Screw;

PE Aluminum Plate;

PPR Pipe Screw;

EVA Extrusion Screw;

HDPE High efficiency Screw;

PET Straps Screw;

XPS/EPE Foamed Screw;

Granulation Screw,Vented single screw etc.


Plastic Machine Precise Foundation Fasteners Screws 20Mm 3
