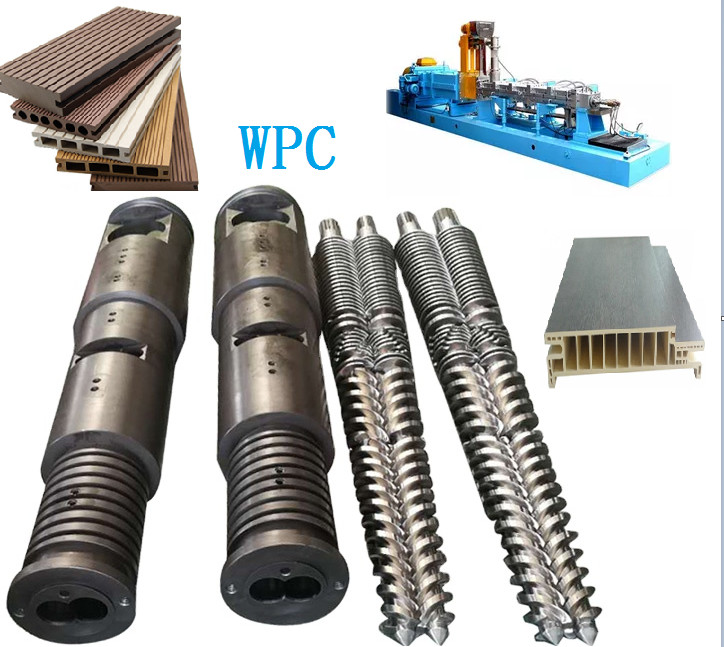

Bimetallic Twin Conical Screw And Barrel Design For Wpc

Bimetallic Twin Conical Screw And Barrel Design For Wpc

Bimetallic Twin Conical Screw And Barrel Design For Wpc
Bimetallic Twin Conical Screw And Barrel Design For Wpc
Bimetallic Twin Conical Screw And Barrel Design For Wpc
Product Details:
Place of Origin: Jiangsu,China
Brand Name: Bloom
Certification: ISO 9001
Model Number: BLM
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negetation
Packaging Details: Packing in wooden case
Delivery Time: 30 to 45 days
Payment Terms: T/T
Supply Ability: 1000mm/month
Contact Now
Detailed Product Description
Material: 38CrMoAlA,42CrMo,9Cr18MoV Application Field: Household,Agriculture,Industry,Building,Auto Parts
Applied Polymers: PE,PA,PET,PVC,PC,ABS,PBT,PEEK,Teflon Screw Treatment: Nitrided,Bimetallic,PTA,HOVF,Tool Steel,HSS,PM Steel
Reinforced Additives: Less Than 65% Glass Fibre Hardness: 58-64HRC
High Light:

Bimetallic Twin Conical Screw And Barrel

,

Twin Conical Screw Alloy Materials

,

Twin Conical Barrel Alloy Materials

Bimetallic Twin Conical Screw And Barrel Design For Wpc



1 . Description

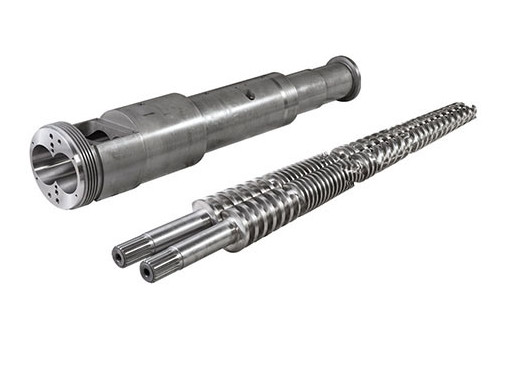

Product Bimetallic twin conical screw and barrel
Hardness after hardening and tempering HB260°~320°
Nitrided Hardness HV950°~1000°
Nitrided Depth 0.50~0.7mm
Nitrided Brittleness above 2 stage
Surface Roughness Ra0.4
Screw straightness 0.015mm
Hardess of surface chromium-plating after Nitriding HV≥950HV
Chromium-plating Depth 0.05~0.10mm
ALLoy Depth 0.8~2.0mm
Alloy hardness HRC56°~65°
Alloy iron,nickel,tungsten,molybdenum







2 . Types of screw

Gradual type

mutant type

wave type

barrier type

double screen type

shunt type

separation type

exhaust type

pin type

mixed type

double-head type

three-head type

multi head type etc.





3 . Material with processing technology

Base Materials:

1)38CrMoAlA(SACM 645)

2)42CrMo(AISI 4140)

3)Cr12MoV(SKD11)

4)4Cr5MoSiV1(SKD61)

5)9Cr18MoV

6)40Cr

Bimetallic Alloy Materials:

1)Fe-based alloy

2)Ni-based alloy

3)Co-based alloy

4)Tungsten carbide

Processing Technology:

Heat treatment

High-frequency quenching

Nitriding treatment

Hard-chrome electroplating

Bimetallic alloy welding

Bimetallic alloy centrifugal casting





Bimetallic Twin Conical Screw And Barrel Design For Wpc 0


3 . Technical Parameter
Base Material 1)38CrMoAlA(JIS SACM645);2)Cr12MOV(JISSKD-11) ;
3)4Cr5MoSiV1(JIS SKD-61) ;4)42CrMo(AISI4140)
Bimetallic Alloy Materials 1)Fe-based alloy2)Ni-based alloy/Deloroalloy
3)Co-based alloy4)NiCo-based alloy
5)Tungsten carbide/Wolframcarbide
Double-alloylevel Level A - containing Tungsten of40%
Level B - containing tungsten of 25%
Level C - containing tungsten of15%
Surface Treatment Heat Treatment
High FrequencyTreatment
Nitriding treatment(120Hours):
Depth of Nitrided Layer: 0.5-0.8mm
Hardness of Nitrided Layer: 900-1020Hv(HRC56°-65°)
HardChrome Plating treatment:
Thickness of Hard Chrome Plating Layer:0.05-0.10mm
Hardness ofHard Chrome Plating Layer: ≥950HV
Nickel alloyplating.treatment:
Bimetallic barrel / Cylinder: Centrifugal Casting(Inlay Alloy)
BimetallicScrew: Plasma Alloy Coating Spraying
Depth of Bimetallic Layer: >2mm
Hardness of Bimetallic Layer: HRC55°-72°
Spraying corrosion wear-resisting dual metallayers





4 . Comparsion of the output (LDPE)

Bimetallic Twin Conical Screw And Barrel Design For Wpc 1

Pressure is generated if resin passes over the barrier, forcing any air in the melted resin back to the feed side and effectively preventing the intrusion of air bubbles on the sub flight side. This is highly effective with resins that generate bubbles such as PS, PA, PET and EVOH.



Bimetallic Twin Conical Screw And Barrel Design For Wpc 2







5 . Parallel twin screw and barrel application
1)PP
2)PE
3)PVC
4)WPC
5)SHEET/PIPE/PROFILE/ FOAM BOARD
6)CRANULAR TWIN SCREWS EXTRUDERS



Bimetallic Twin Conical Screw And Barrel Design For Wpc 3


Bimetallic Treatment of Screw

The bimetallic screw for extruder twin screw is a kind of screw spray welding a 2~3mm-thick alloy coat on the screw flight of output area for the screw . The Bimetallic treatment has excellent corrosion resistance, abrasion resistance and high working temperature. And its useful service life is greatly improved contrast to the common nitrided screw.





6 . As per customer's demand,we can also supply below:
PVC/PE Film Blowing Screw;

Blow Molding Screw;

PS/PE/PP/ABS Sheet Extrusion Screw;

PE Aluminum Plate;

PPR Pipe Screw;

EVA Extrusion Screw;

HDPE High efficiency Screw;

PET Straps Screw;

XPS/EPE Foamed Screw;

Granulation Screw,Vented single screw etc.



Bimetallic Twin Conical Screw And Barrel Design For Wpc 4
