BLOOM(SUZHOU) MATERIALS CO.,LTD
Attitude Is Everything.Details Determine Success or Failure.

|
| Place of Origin: | China |
| Brand Name: | Bloom |
| Certification: | ISO |
| Model Number: | BLM-S |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negetation |
| Packaging Details: | Packing in wooden case |
| Delivery Time: | 20-25 days after the payment |
| Payment Terms: | T/T, T/T |
| Supply Ability: | 1000mm/month |
| Place Of Origin: | Jiangsu,China | Material: | A15 |
|---|---|---|---|
| Product Name: | Screw Element | Type: | Double |
| Charactor: | Bimetallic | Advantage: | Enlarge Life Of Parts |
| High Light: | Extrusion Machine Screw Element,Bimetallic Screw Element,Twins Screw Extruder |
||

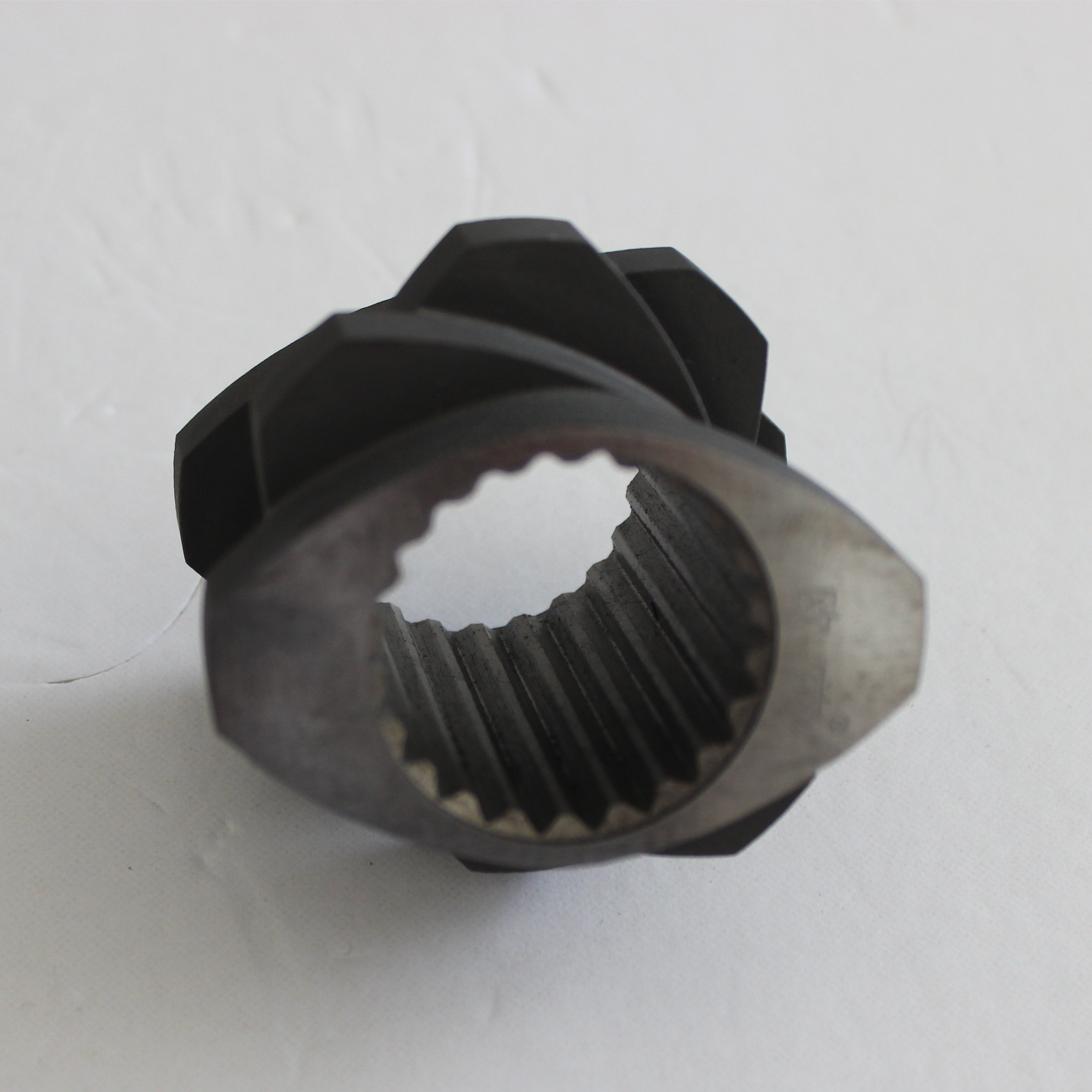

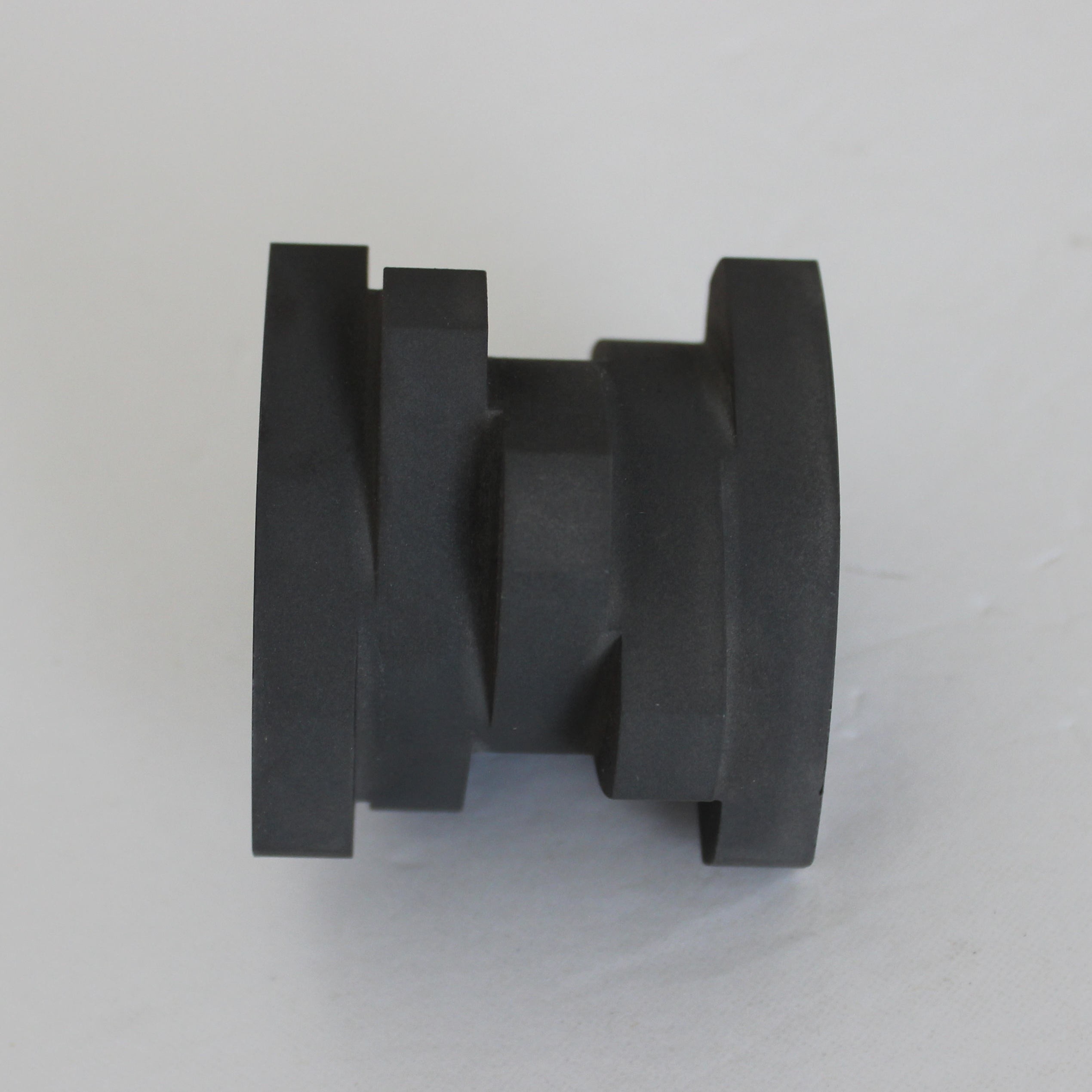

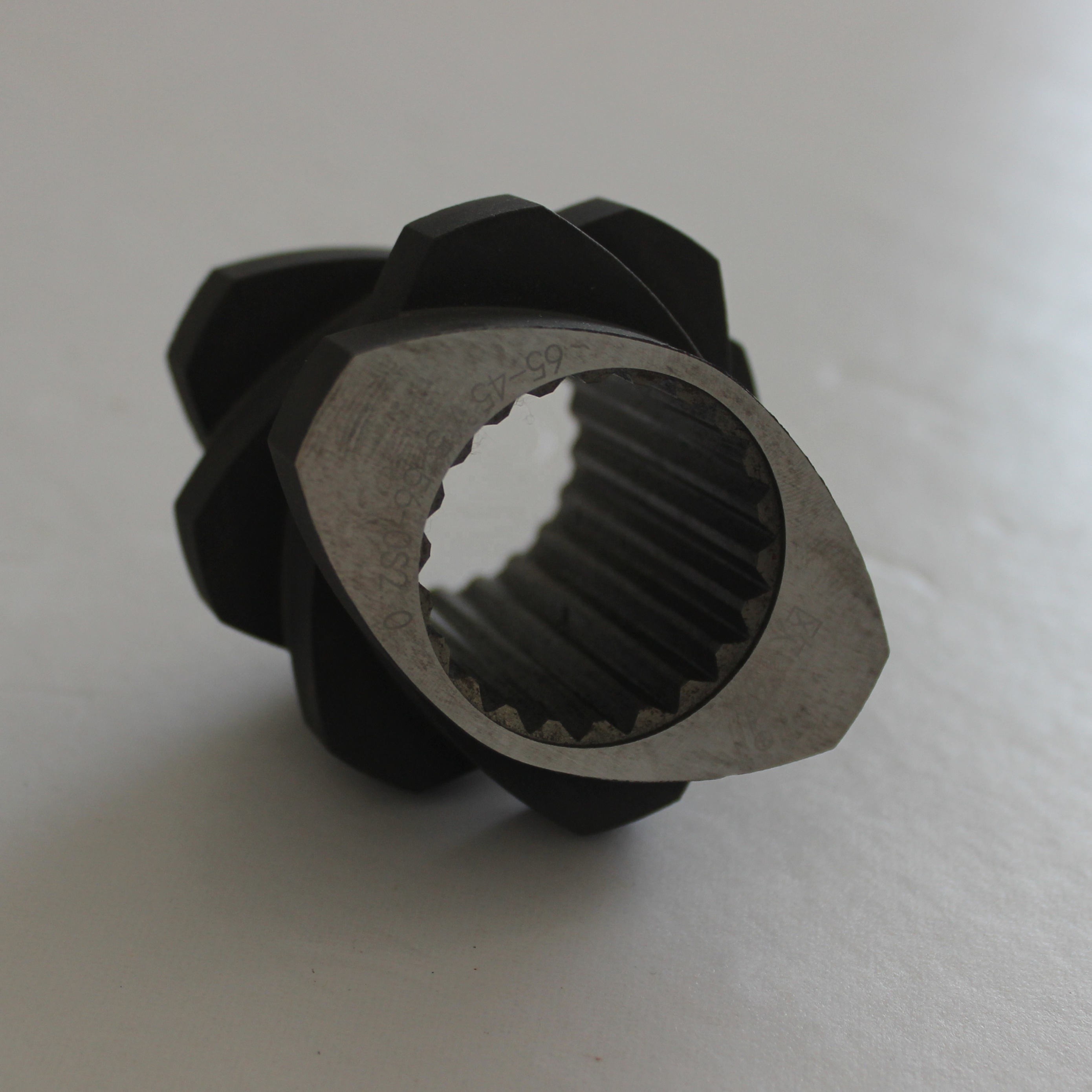

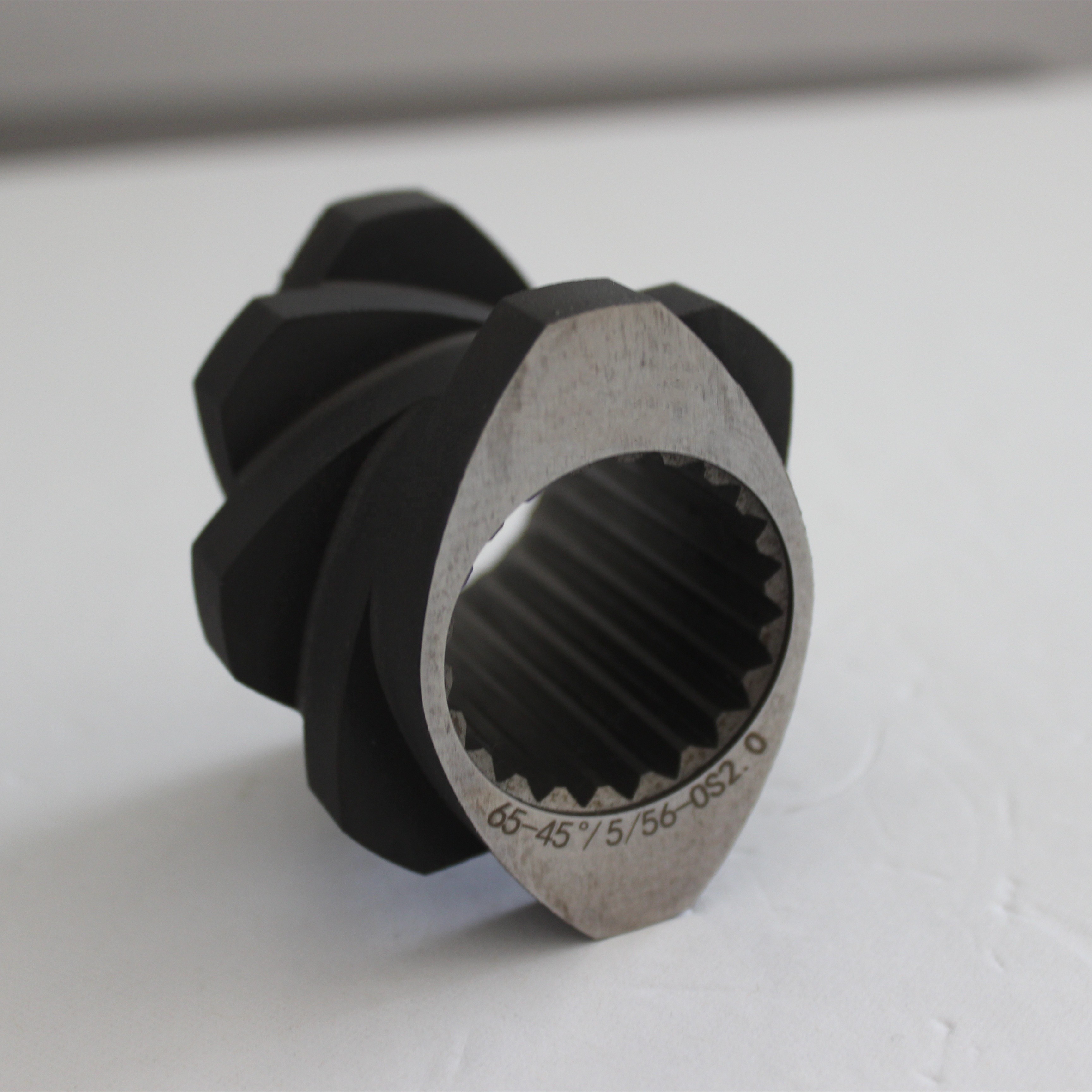

Bimetallic Extrusion Machine Screw Element And Barrel Spare Parts
|
Product Name
|
Bimetallic Extrusion machine screw element and barrel spare parts
|
|||
|
Place of Origin
|
Shanghai, China
|
|||
|
Screw design
|
Double-screw
|
|||
|
Screw type
|
Double
|
|||
|
Application machine
|
Twins Screw Extruder
|
|||
|
Spare part |
Characters |
Code |
Steel type |
Hardness(HRC) |
Abrasion Resistance(1-10) |
Corrosion Resistance(1-10) |
Mechanical Properties(1-10) |
|
Screw Element |
Abrasion Resistance |
A07 |
Cold work tool steel
|
56-60 |
4 |
2 |
4 |
|
A11 |
Cold work tool steel |
58-62 |
6 |
4 |
6 |
||
|
A15 |
Bimetallic PM steel |
60-64 |
8 |
2 |
6 |
||
|
A62 |
PM tool steel |
60-64 |
10 |
2 |
4 |
||
|
Corrosion Resistance |
C05 |
Stainless steel |
55-58 |
3 |
5 |
4 |
|
|
C06 |
Stainless steel |
55-58 |
4 |
6 |
4 |
||
|
C09 |
Stainless steel |
46-50 |
3 |
7 |
5 |
||
|
C25 |
Bimetallic PM steel |
56-60 |
7 |
7 |
6 |
||
|
C30 |
High Nitrogen Steel |
56-60 |
3 |
9 |
8 |
||
|
C65 |
Ni-based alloy/Tip welded |
56-60 |
9 |
9 |
5 |
Our products cover all kinds of wear and corrosion resistant spare parts such as screw elements, barrels, shafts, plugs, couplings and so on. The screw diameter ranges from dia12mm to dia350mm. We do not produce single metal barrels and screw parts, but we also researched and produce bimetallic extuded screw barrels, which will make the life time of the parts double or triple increased.
Our factory has strong technical force, excellent processing equipment, advanced production technology, strict inspection systerm and perfect after-sales service. We are the main supplier of spare parts of Leistritz China. We welcome all the friend oversea to contact and test my products, we are sure that Quality proves everything. If You give us one chance, we will return you inconceivable Quality increased.
Contact Person: Miranda
Tel: +8615250395817
