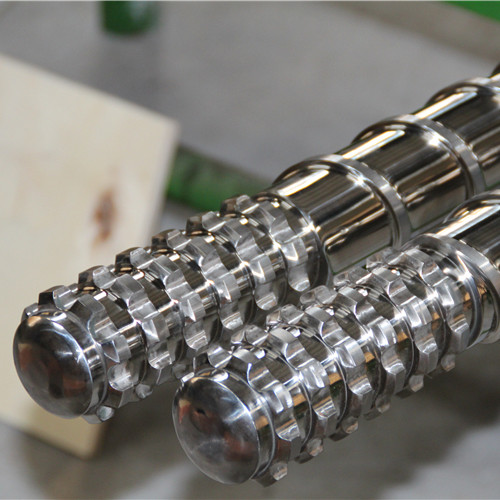

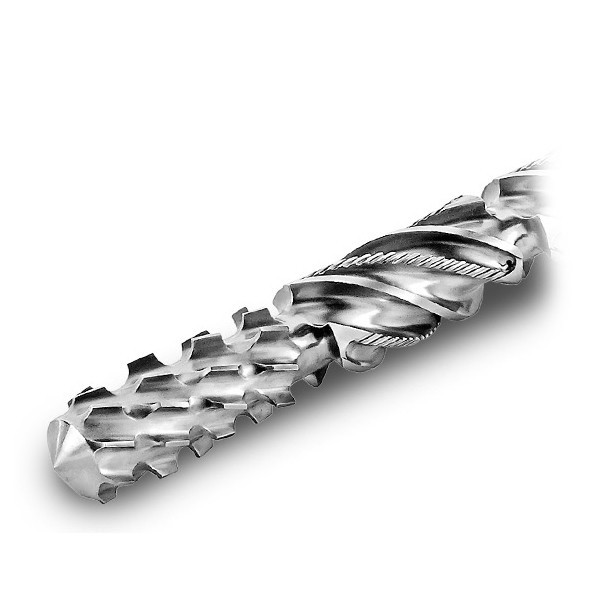

Single Screw Extruder Barrel For Granulation Machine Bimetallic

Single Screw Extruder Barrel For Granulation Machine Bimetallic

Single Screw Extruder Barrel For Granulation Machine Bimetallic
Single Screw Extruder Barrel For Granulation Machine Bimetallic
Single Screw Extruder Barrel For Granulation Machine Bimetallic
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: BLM-IV-1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: packed and labeled according to the regulations and customer's requests.Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.
Delivery Time: 25-30 days subject to the clients' requirement and quantity
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000 per Month
Contact Now
Detailed Product Description
Place Of Origin: Jiangsu,China Material: 316L/X260/W6Mo5Cr4V2 Or Customized
Spare Parts Type: Spare Parts For Twin Screw Exruder Application: Machinery Repair Shops,Food An Beverage Factory
Center Distance: 26mm Screw Distance: 30mm
Dimension(LxWxH): 120x135x115mm After Warranty Service: Video Technical Support,online Support
High Light:

Granulation Machine Single Screw Extruder Barrel


Granulation Machine Extruder Screw Barrel


Bimetallic Single Screw Barrel

                                              Screw Barrel For Granulation Machine Extruder Single Screw And Barrel Bimetallic

1. Descriptions

Welcome to inquire.We can supply single screw barrel/cylinder parallel twin screw barrel conical twin screw barrel bimetallic screw barrel nitrided screw barrel injection moulding machine screw barrel extruder machine screw barrel rubber machine screw barrel.


Base alloy

38CrMoAlA(JIS SACM645)

Cr12MOV(JIS SKD-11)
4Cr5MoSiV1(JIS SKD-61)

42CrMo(AISI 4140)


Bimetallic Alloy Materials

1)Fe-based alloy 2)Ni-based alloy/Deloro alloy
3)Co-based alloy 4)NiCo-based alloy
5)Tungsten carbide/Wolfram carbide
Surface Heat Treatment
High Frequency Treatment
Nitriding treatment(120 Hours):

Depth of Nitrided Layer: 0.5-0.8 mm
Hardness of Nitrided Layer: 900-1020Hv (HRC56°-65°)
Hard Chrome Plating treatment:
Thickness of Hard Chrome Plating Layer: 0.05-0.10mm
Hardness of Hard Chrome Plating Layer: ≥950HV
Nickel alloy plating.treatment:
Bimetallic Barrel/Cylinder: Centrifugal Casting (Inlay Alloy)
Bimetallic Screw: Plasma Alloy Coating Spraying
Depth of Bimetallic Layer: >2mm
Hardness of Bimetallic Layer: HRC55°-72°
Spraying corrosion wear-resisting dual metal layers



2. Technical Specification


Design Details  Screw
I TYPE:inside is water/oil cooling system
II TYPE:outside is oil cooling system
I TYPE:outside is air cooling system
II TYPE:out side is copper pipe around cooling system
Accessories  Stop ring+washers to adjust the space between screw and barrel
Technical Specification Material:High quality 38CrMoAlA
Process:Advanced nitriding & bimetallic process
Hardness After Hardening & Tempering:HB280-320
Nitrided Hardness:HV900-1000
Nitrided Case Depth:0.45-0.8mm
Nitrided Brittleness:Less than Grade 2
Surface Roughness:Ra 0.4
Screw Straightness:0.015mm
Alloy Hardness:HRC 50-65
Alloy Depth:0.8-2.0mm
MOQ 1 set(1 pair of screws and 1 piece barrel)
Type  Concial Twin Screw and Barrel



3. Brief Application


Application: PVC

Production output:130kg/h~150kh/h
Lifetime: 20,000 hours

Old order from: West Europe,East Europe,South America,South Africa,Middle



4. Features:

Accrurate size

High capacity design

Wear resisting material

Easy maintenance


5. Screw&barrel use material

Raw material The finished product processing requirements
38CrMoAIA, SACM645 Nitriding treatment
Cr12MoV, Cr12, Alloy steel
38CrMoAIA, SACM645, 40Cr, AISI4140,
Alloy steel
4Cr5MoSiV1,SKD-61,SKD-11 Bimetallic of the inner hole centrifugal casting
GHII3 nature hard after high temperature
