Pelletizing Screw Barrel Parallel Twin Screw Barrel For Plastic Extruder
1. Description:
Segment design
Barrel shell: 45# steel
Barrel liner: C shape or integrated
Barrel Hardness: HRC58-62
Inner hole grade: 6, high precision
Barrel type: open, close, side feeding, venting, etc.
Barrel cooling method: self cooling, with water channel inside
Competitive price
High quality
2 . Barrel design chart
| No. | Model | L*W*H(mm) | Diameter Φ(mm) | Center Distance D(mm) |
| 1 | 20 | 132*115*105 | Φ23 | 18.4 |
| 2 | 30 | 120*135*115 | Φ30.6 | 26 |
| 3 | 35 | 140*140*120 | Φ36 | 30 |
| 4 | 36 | 150*160*140 | Φ36 | 30 |
| 5 | 40 | 160*175*145 | Φ41.6 | 34.5 |
| 6 | 50 | 190*190*150 | Φ51 | 42 |
| 7 | 52 | 210*200*155 | Φ52 | 43 |
| 8 | 53 | 220*210*160 | Φ53.3 | 48 |
| 9 | 58 | 240*220*175 | Φ58 | 48 |
| 10 | 60 | 240*210*170 | Φ60 | 52 |
| 11 | 65 | 240*210*170 | Φ63 | 52 |
| 12 | 75 | 290*260*200 | Φ71.8 | 60 |
| 13 | 85 | 320*280*215 | Φ81.9 | 67.8 |
| 14 | 92 | 360*210*240 | Φ92 | 78 |
| 15 | 95 | 360*310*240 | Φ94 | 78 |
| 16 | 110 | 420*330*240 | Φ109 | 91.5 |
| 17 | 125 | 500*390*290 | Φ125 | 98 |
| 18 | 135 | 500*440*340 | Φ134 | 110 |
3. Screw and barrel barrel screw extruder screw barrel processing:
Raw material - brand - testing - machining - grinding process - antirust process - products - packing - delivery to your hand

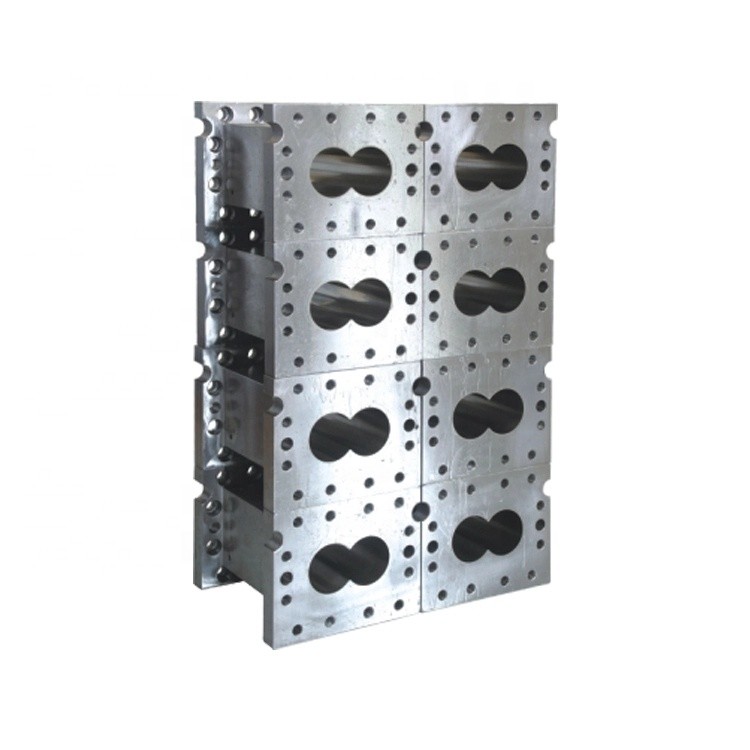

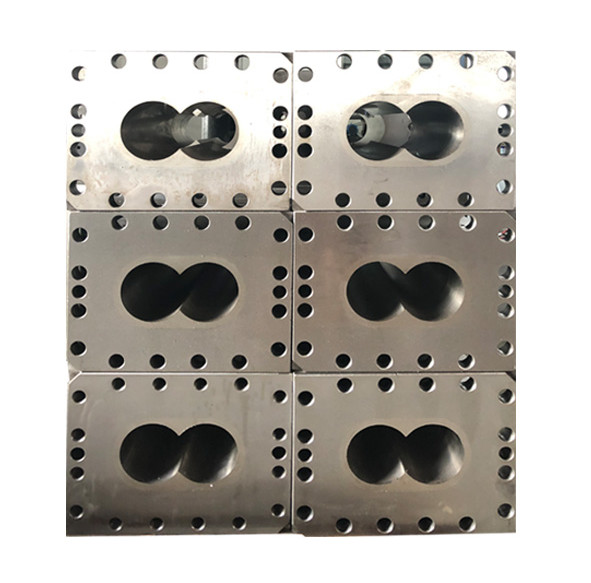

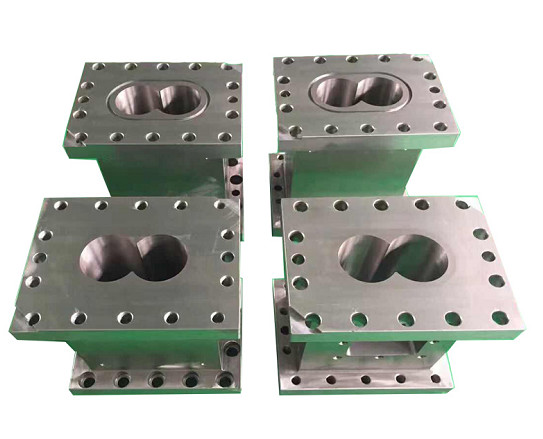

4. Pictures:
