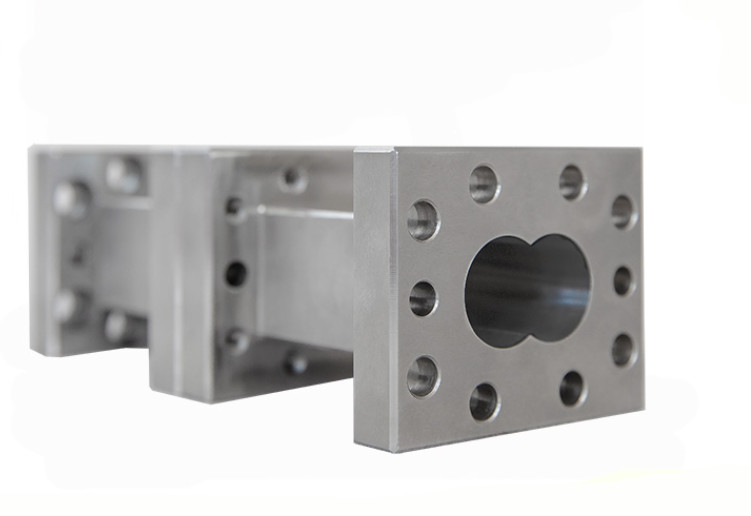

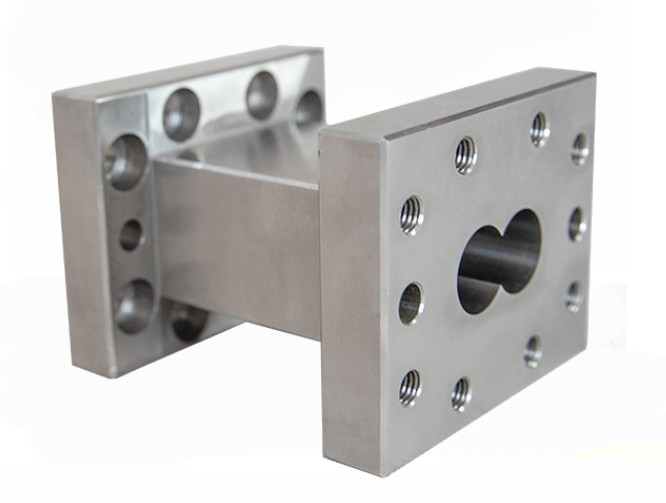

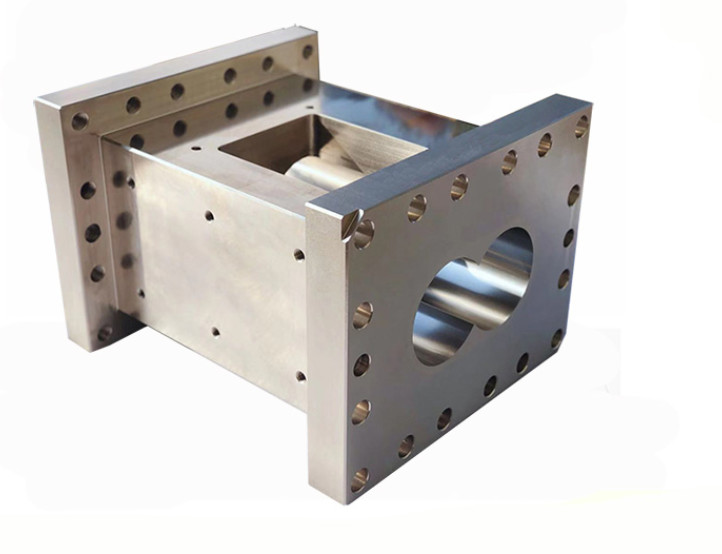

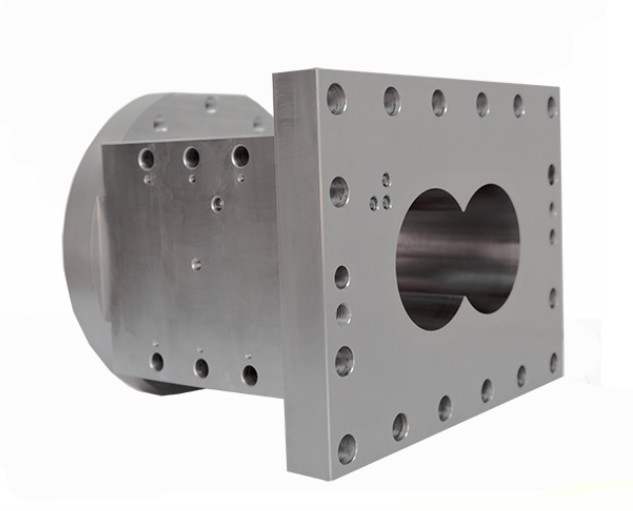

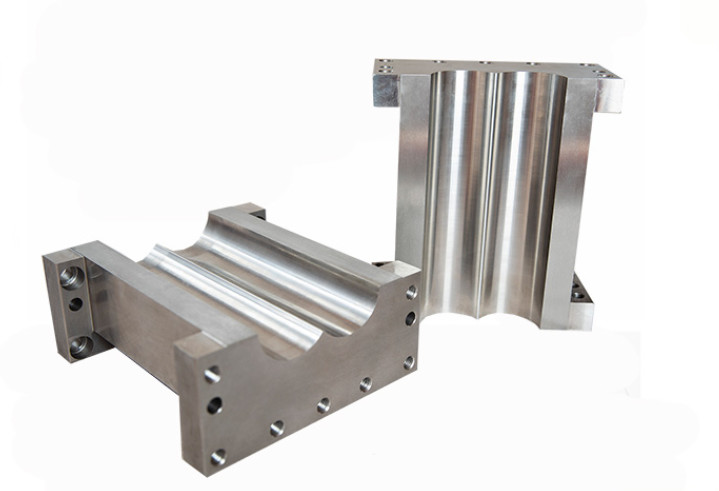

30mm Distance Screw And Barrel For Plastic Extruder Machine

Quality 30mm Distance Screw And Barrel For Plastic Extruder Machine factory
Quality 30mm Distance Screw And Barrel For Plastic Extruder Machine factory
Quality 30mm Distance Screw And Barrel For Plastic Extruder Machine factory
Quality 30mm Distance Screw And Barrel For Plastic Extruder Machine factory
Quality 30mm Distance Screw And Barrel For Plastic Extruder Machine factory
Quality 30mm Distance Screw And Barrel For Plastic Extruder Machine factory

Basic Properties

Place of Origin:Jiangsu, China (Mainland)
Brand Name:BLM-IV-1

Trading Properties

Minimum Order Quantity:Negotiation
Price:Negotiation
Standard Packaging:packed and labeled according to the regulations and customer's requests.Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.
Delivery Time:25-30 days subject to the clients' requirement and quantity
Payment Terms:Western Union, L/C, T/T
Supply Ability:1000 per Month
Specifications
Place Of Origin: Jiangsu,China Material: 316L/X260/W6Mo5Cr4V2 Or Customized
Spare Parts Type: Spare Parts For Twin Screw Exruder Application: Machinery Repair Shops,Food An Beverage Factory
Center Distance: 26mm Screw Distance: 30mm
Dimension（LxWxH): 120x135x115mm After Warranty Service: Video Technical Support,online Support
Highlight

30mm Distance Screw And Barrel

,

Plastic Extruder Machine Screw And Barrel

,

Screw And Barrel Alloy Materials
Product Description

New Design Screw And Barrel For Plastic Extruder Machine

1. Descriptions

     Using the world's advanced coating technology, to create high wear and corrosion threaded element products.

     High-performance, high wear resistance of the screw element, can significantly improve product quality and consistency effectively reduce the  machine to replace the screw element frequency, will minimize production costs.







2 . Barrel design chart

No. Model  L*W*H(mm) Diameter               Φ(mm) Center Distance D(mm)
1 20 132*115*105 Φ23 18.4
2 30 120*135*115 Φ30.6 26
3 35 140*140*120 Φ36 30
4 36 150*160*140 Φ36 30
5 40 160*175*145 Φ41.6 34.5
6 50 190*190*150 Φ51 42
7 52 210*200*155 Φ52 43
8 53 220*210*160 Φ53.3 48
9 58 240*220*175 Φ58 48
10 60 240*210*170 Φ60 52
11 65 240*210*170 Φ63 52
12 75 290*260*200 Φ71.8 60
13 85 320*280*215 Φ81.9 67.8
14 92 360*210*240 Φ92 78
15 95 360*310*240 Φ94 78
16 110 420*330*240 Φ109 91.5
17 125 500*390*290 Φ125 98
18 135 500*440*340 Φ134 110




3. Screw and barrel barrel screw extruder screw barrel processing:

   Raw material - brand - testing - machining - grinding process - antirust process - products - packing - delivery to your hand







4. Pictures:



30mm Distance Screw And Barrel For Plastic Extruder Machine 0

30mm Distance Screw And Barrel For Plastic Extruder Machine 1

30mm Distance Screw And Barrel For Plastic Extruder Machine 2
