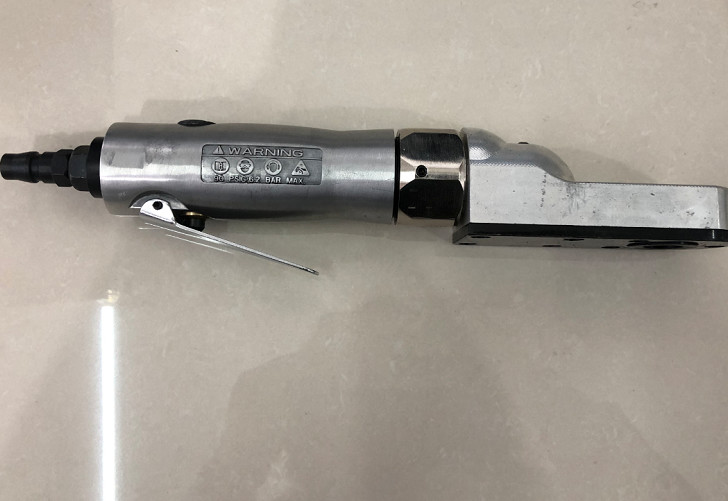

Metal 18mm Electrode 1300rpm Pneumatic Tip Dresser

Metal 18mm Electrode 1300rpm Pneumatic Tip Dresser

  • Metal 18mm Electrode 1300rpm Pneumatic Tip Dresser
  • Metal 18mm Electrode 1300rpm Pneumatic Tip Dresser
Metal 18mm Electrode 1300rpm Pneumatic Tip Dresser
Product Details:
Place of Origin: China
Brand Name: bml
Model Number: CDY-1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negation
Payment Terms: L/C, T/T, Western Union, D/P
Contact Now
Detailed Product Description
Special Use: Dresser Material: Metal
Brand Name: OEM Brand Model: CDY-1
High Light:

1300rpm Pneumatic Tip Dresser

,

18mm Electrode Pneumatic Tip Dresser

,

OEM Pneumatic Tip Dresser

Bloom Pneumatic Tip Dresser Used With The Cutter And Holder To Polish The Cap Tips





1.Description:



Bllom provides various types of tip dressers.Inclue pneumatic tip dresser(air tip dresser),manual tip dresser,ratchet handedld tip dresser,drill tip dresser etc.Out tip dresser consists of tip dresser tool,cuttert blade,cutter holder.they are popular use to cut φ 8 to φ25 electrode tips.We supply all kinds of standard tip dresser cutter blades.Also offer customized tip dresser cutting according to your drawing.Compressed air provides power source for the pneuamtic tip dresser.It's roating speed is 1300RPM-1500RPM.If you need spot welder tip dresser,electrode tip dresser,welcome your inquiry.



Part No. Bloom
Power Compressed air
Max Electrode diameter 18mm
Speed (rpm) 1300
Hose Inner Diameter 7.6-10.0mm
Weight 1.8kgs




2.Features:

Small sized, light and easy to handle
Powered only by air, if there is air where you can use

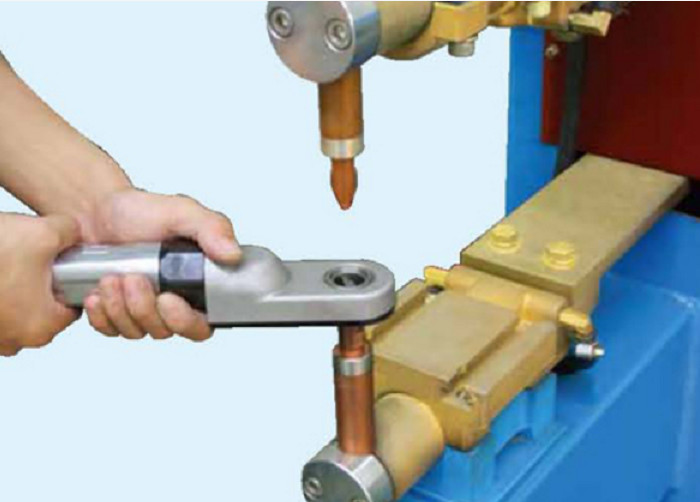

Dress electrodes without removing them from the machine
Easy exchange of cutter and case





4.Type of cutter cases :The cutter case bore diameter acts as a guide so that the cutter dresses at the correct location relative to the tip. Please specify a cutter case that matches the tip size.
