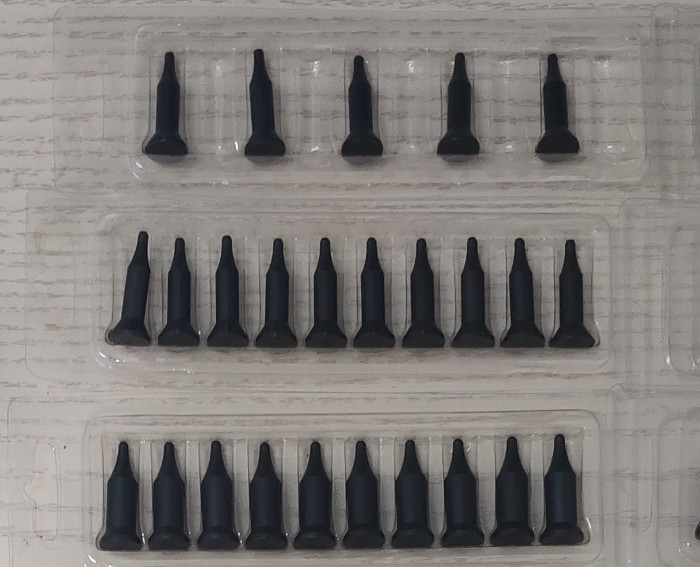

Diameter M4 Nut Projection Welding KCF Locator Pins

Diameter M4 Nut Projection Welding KCF Locator Pins

Diameter M4 Nut Projection Welding KCF Locator Pins
Diameter M4 Nut Projection Welding KCF Locator Pins
Diameter M4 Nut Projection Welding KCF Locator Pins
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: BLM-kcf-1
Model Number: BLM
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: packed and labeled according to the regulations and customer's requests.Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.
Delivery Time: 25-30 days subject to the clients' requirement and quantity
Payment Terms: Western Union, L/C, T/T
Supply Ability: 3000 pc/pcs per Month
Contact Now
Detailed Product Description
Size: Standard Or Customization Place Of Origin: Jiangsu, China (Mainland)
Type: Kcf Pin Application: Resistance Welding
Delivery: 7-10 Days Subject To The Clients' Requirements And Quantity Price Term: Ex-Work,FOB,CNF,CFR,CIF,FCA,DDP,DDU
High Light:

KCF Locator Pins


Projection Welding Kcf Pin


M4 Locator Pins

                                   KCF Locator Pins for Nut / Projection Welding Durable and Cost-effective M4/M5/M6/M8


1 . Descriptions:


Locator pin can be supplied in different materials: ceramic,KCF and stainless steel.KCF is a special heat treated alloy with a hard,insulation skin which lasts much longer than ceramic through with higher initial price.Bloom offers a range of standard designs while special designs can also be made to order.


KCF material is a kind of special metal.By the way of special heat treatment process and process temperature range of 1000-1500 degree adjustment,the surface can generate a layer of 10-32μm thick high-quality insulation layer,the insulation layer and the alloy matrix has a good ability to combine.So that the material takes into account the good wear resistance and high insulation resistance.The material in the mechanical processing after formation of a variety of parts,after cleaning and heat treatment with insulation,wear and anti-oxidation of the three functions of the product.This material is mainly used in resistance welding equipment.

We generally use ceramic guide pins as a welding nut positioning pin, but because of the toughness of ceramics is poor, fragile, so now KCF guide pin instead of ceramic is more and more popular.




2 . KCF Guide Pin Technical Specification


Pin Material: KCF,AL2O3,ZrO2,Si3N4,Ceramic,Stainless Steel etc.

KCF Pins Diameter:M4,M5,M6,M8,M10,M12…

Application: KCF guide pins are widely used on projection welding,nut welding,stud welding



3 . Advantages:


high temperature strength
▲superior thermal shock resistance
▲ excellent wear resistance
▲good inusltaion surface
▲ Excellent non-wetting property with good oxidation resistance

▲ It is convenient to process the rod shape, and the period will be shorter




4 . More pictures

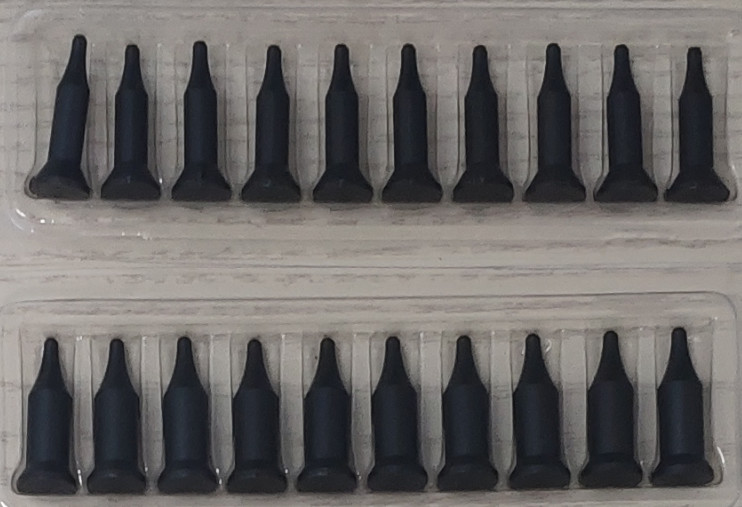

Diameter M4 Nut Projection Welding KCF Locator Pins 0
