Place of Origin: | China |
Brand Name: | bml |
Model Number: | CDY-1 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negation |
Payment Terms: | L/C, T/T, Western Union, D/P |
Special Use: | Dresser | Material: | Metal |
---|---|---|---|
Brand Name: | OEM Brand | Model: | CDY-1 |
High Light: | spot welding electrode tips,resistance welding electrode material |

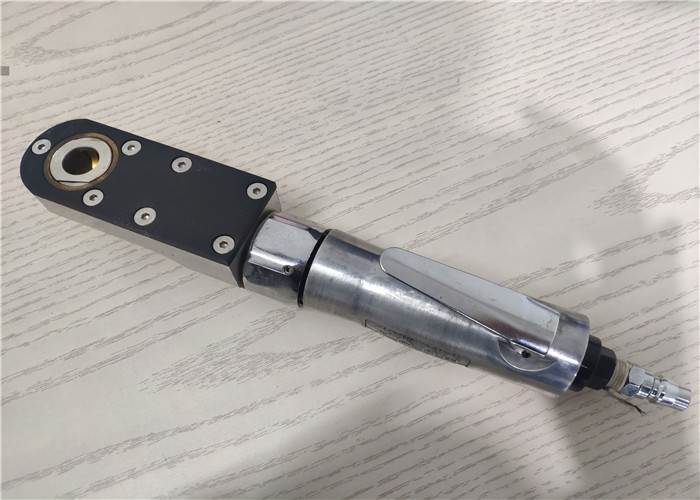

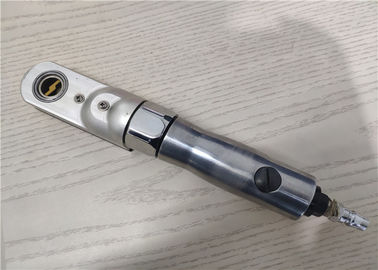

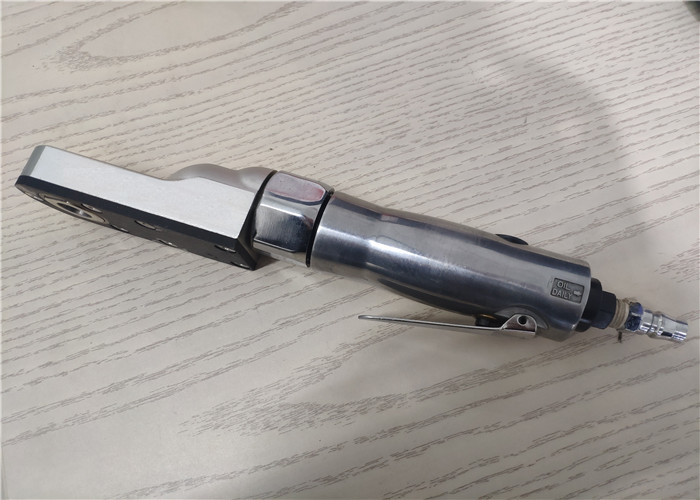

Production Description:
Part No. | CDY-1 |
Power | Compressed air |
Max Electrode diameter | 18mm |
Speed (rpm) | 1300 |
Hose Inner Diameter | 7.6-10.0mm |
Weight | 1.8kg |
Dressing Electrodes vs. New Tips
Worn electrode tips produce either poor welds or no welds at all, limiting both quality and productivity. Two possible solutions to worn tips are to (1) replace them with new, or (2) recondition existing tips on either a lathe, drill press, or with a portable Electrode Dresser. Replacing tips is a costly and time consuming alternative. Reconditioning tips on standard machine shop equipment, although providing uniformly dressed electrodes, cuts valuable production time. Reconditioning worn tips with an Electrode Dresser, however, is a convenient, economical solution that minimizes downtime.
Features:
Small sized, light and easy to handle
Powered only by air, if there is air where you can use
Dress electrodes without removing them from the machine
Easy exchange of cutter and case
Cutters and case available in different types and sizes
High-speed, high-performance
Type of cutter cases :The cutter case bore diameter acts as a guide so that the cutter dresses at the correct location relative to the tip. Please specify a cutter case that matches the tip size.
